Medium Pressure Axial Piston Pumps
P1/PD B-mod Service Information
49
Pump Model Part No A B C
060 / 075 / 085 213-0-004192
2.812 in
(71.4 mm)
2.60 in
(66.0 mm)
12°
100 213-0-004204
3.623 in
(92.1 mm)
3.390 in
(86.1 mm)
15°
140 213-0-004197
3.687 in
(93.7 mm)
3.515 in
(89.3 mm)
15°
Pump Size A B C D E
018
0.795 in
(20.2 mm)
2.84 in
(72.0 mm)
0.756 in
(19.2 mm)
2.32 in
(59.0 mm)
1.18 in
(30.0 mm)
028
0.902 in
(22.9 mm)
2.95 in
(75.0 mm)
0.862 in
(21.9 mm)
2.44 in
(62.0 mm)
1.18 in
(30.0 mm)
045
1.059 in
(26.9 mm)
3.35 in
(85.0 mm)
1.020 in
(25.9 mm)
2.84 in
(72.0 mm)
1.30 in
(33.0 mm)
133 mm
(5.250 in)
31.2 mm DI
A
(1.250 in)
25.4 mm
(1.000 in)
A
DIA
B
DIA
C
1.5 mm x 45˚ TYP.
(.06 in, X 45˚)
3.0 mm RADIUS
(0.12 in)
6.4 mm
(0.250 in)

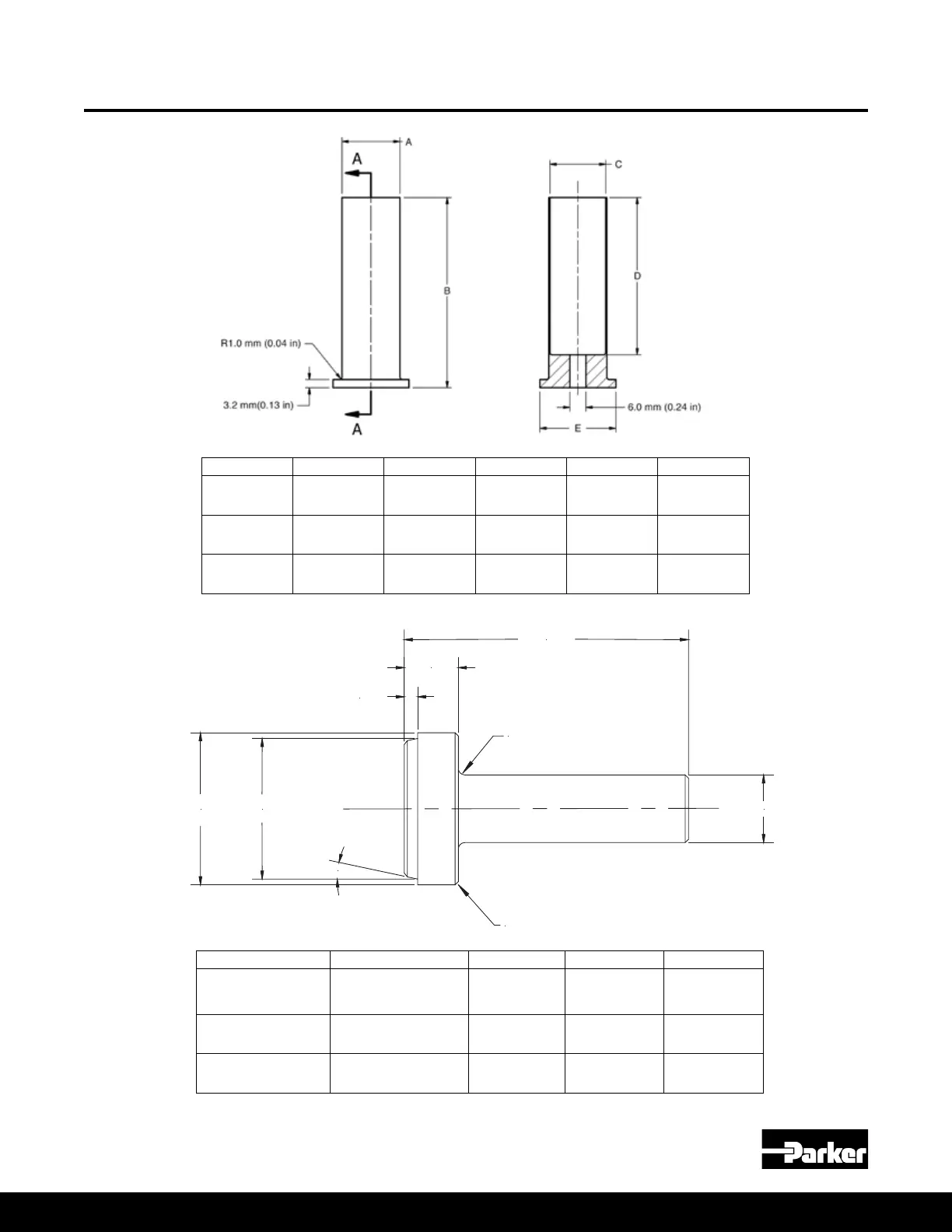

T6 Barrel Pin Tool
T7 Front Bearing Cup Tool (60 thru 140)
Assembly Tools
