P1D Cylinder
05.03
www.parker.com/euro_pneumatic

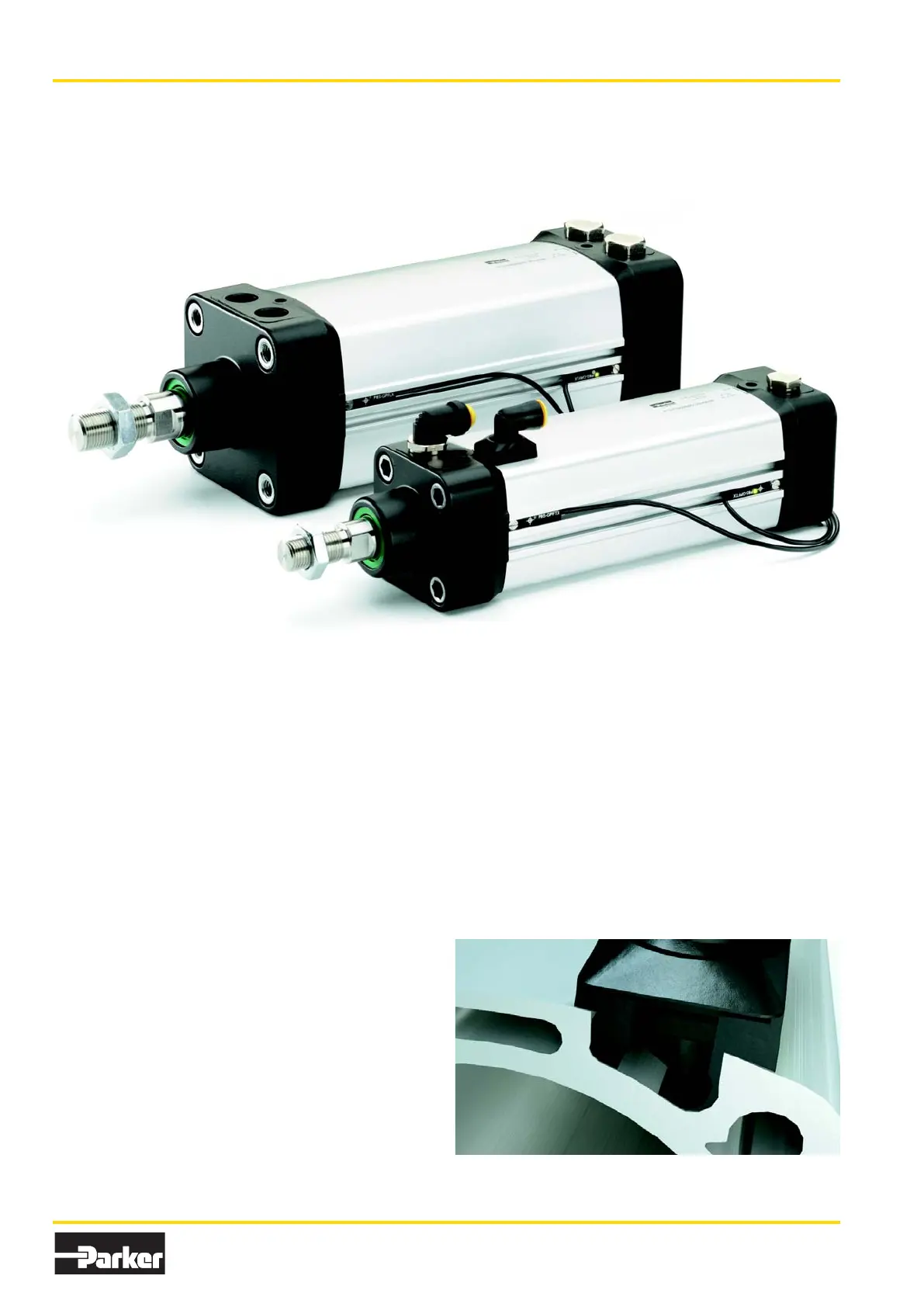

P1D Flexible Porting
Progress leads to smaller components and machinery. In
harmony with this trend, and complying with the main
dimension requirements in ISO 6431, we have developed
P1D Flexible Porting, which offers new, smarter design
solutions. Since one end of the cylinder can be placed in
restricted, unused spaces, without needing any
connections, the space in the application can be used
more efficiently, or made more compact.
Main dimensions according to international standards
Apart from the projecting connections on sizes Ø32–63 mm
P1D Flexible Porting complies with ISO 6431, ISO 15552,
VDMA 24562 and AFNOR standards.
Common, high technology design platform
P1D Flexible Porting has the same high technology level
as P1D Standard and P1D Clean. The future-proof design
gives P1D Flexible Porting high performance and long
service life.
Body extrusion with integrated air channels
P1D Flexible Porting has the same body extrusion as the
P1D Clean cylinder. Since the air is led through channels
built into the body extrusion, both connections can be
made to either end of the cylinder. The flow capacity of the
air channels is big enough not to restrict the cylinder
speed in all normal applications.
