43
Mounting the PHD
9.1. Dimensions
The dimensions for each of the PHD family of displays is provided below.
9.1.1. PHD28

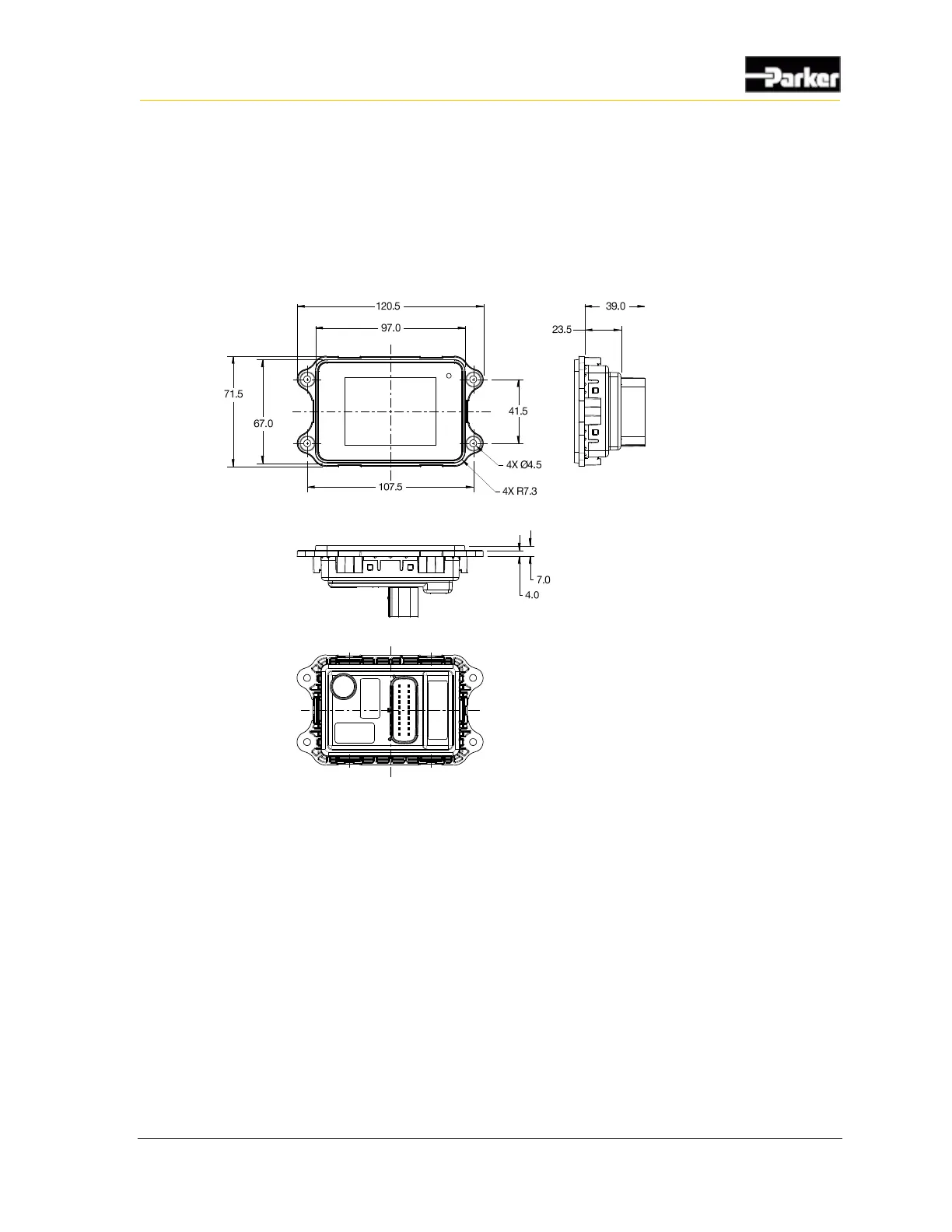

Figure 18: PHD28 dimensions (mm)
