FilterTec Plus Quick Start:

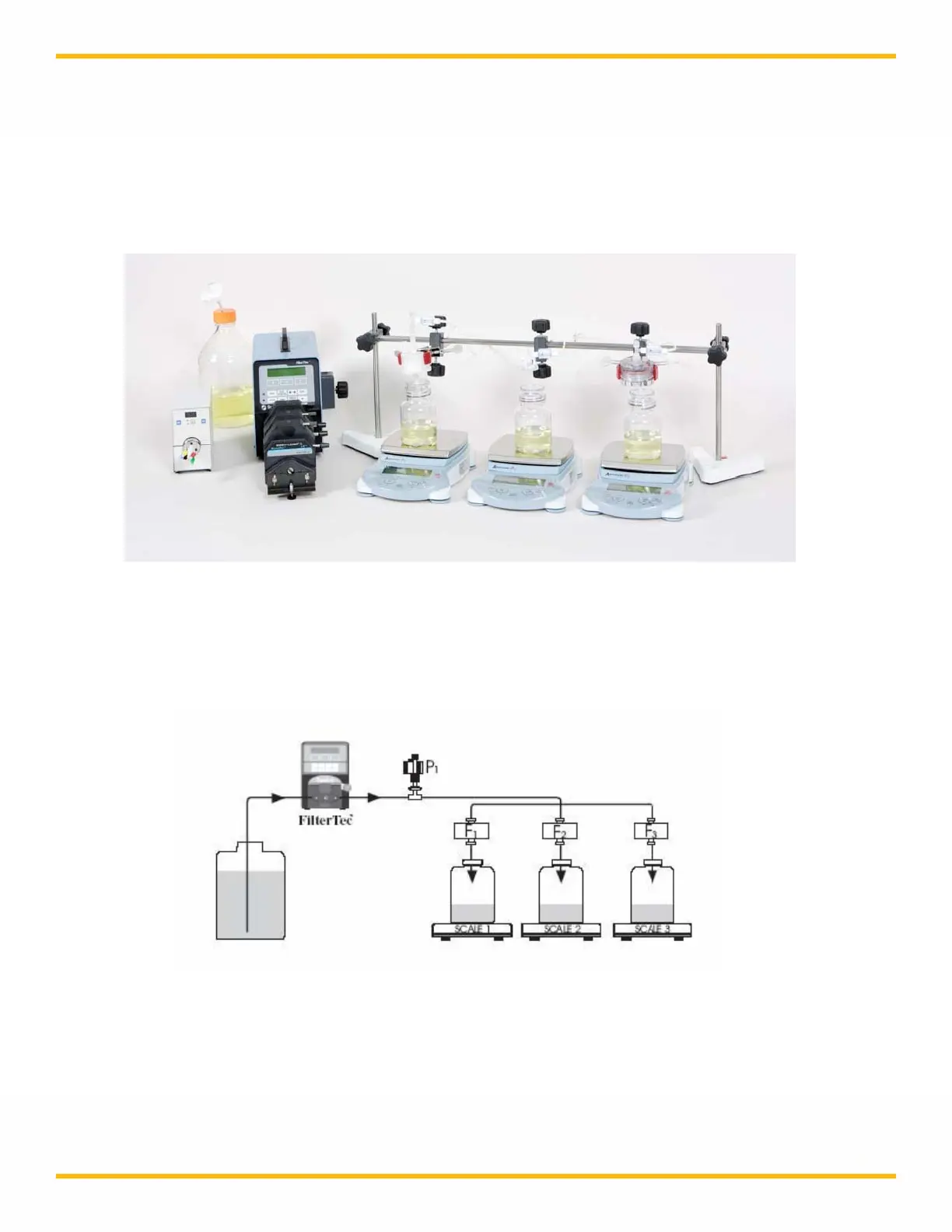

The FilterTec Plus is shipped in conjunction with a 3-Filter Testing Station. This Station
consists of 3 balances with cables, the Serial3 Balance Interface box, and a stand and clamp
set for holding your 3 filters over the balances. A 6-way Rotary Valve may also be purchased
with this system and its actions implemented in the Programmable R-P Mode.
This system is designed around a set of 3 matching balances, and can be configured in a
couple of ways.
The first uses one head to provide solution through a manifold to 3 filters while monitoring or
controlling the pressure of a single sensor, with each filter ending above its own balance, as
shown below:
A constant pressure can be easily maintained, and the collection rates achieved will be based
upon the dynamics of the filter. If the filters are the same, the Feed Rate will be roughly spit into
thirds.
The second multiple balance configuration utilizes 3 pump heads, 3 sets of tubing, all 3 sensors
and balances, with everything running in parallel.
