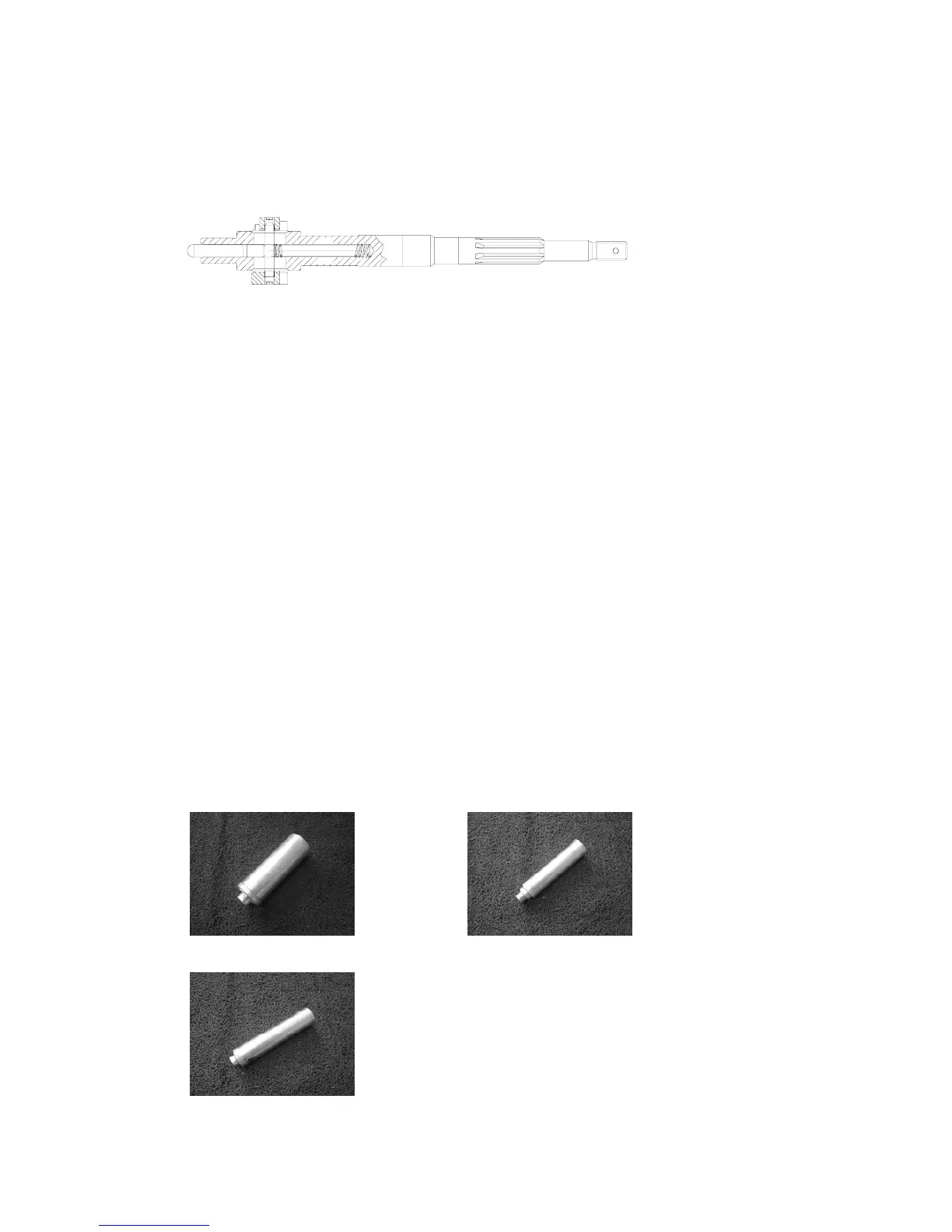

Dog clutch installation
1. Put clutch spring into the hole at the end of the propeller shaft.
2.
Install the dog clutch as shown. Make sure the “F” mark is toward the forward gear. Install
clutch pin.
3. Install clutch ring and shift plunger.
Lower casing cover
1. Check bearing for rust or rumbling when run. Replace if necessarily.
2. Remove bearing and oil seal by bearing puller.
NOTE:
Don’t remove bearing unless changing it.
3. Remove rolling needle bearing by using special tool.
NOTE:
Use new parts when reinstalling the oil seal and rolling needle bearing.
4. Clean casing cover by a soft brush and solvent.
5. Check casing cover for crack or damage. Replace if necessary.
Lower casing cover oil seal and bearing installation
1. Install oil seal.
2. Install bearing.
NOTE:
Install oil seal and bearing by using special tools.
Take note of the direction and depth when installing the oil seal.
Make sure the manufacturer mark of the bearing is toward the reverse gear.
Lower casing cover bearing installer Lower casing cover barrel bearing installer
Lower casing cover oil seal installer
95
