2. If above the upper mark, drain the engine oil; if below lower mark, add engine oil up to upper mark.
CAUTION:
Run the engine and then turn it off, wait for several minutes, and check the engine oil level by the
oil rule again.
If the engine oil still not within the proper level, add/drain as needed.
Changing engine oil

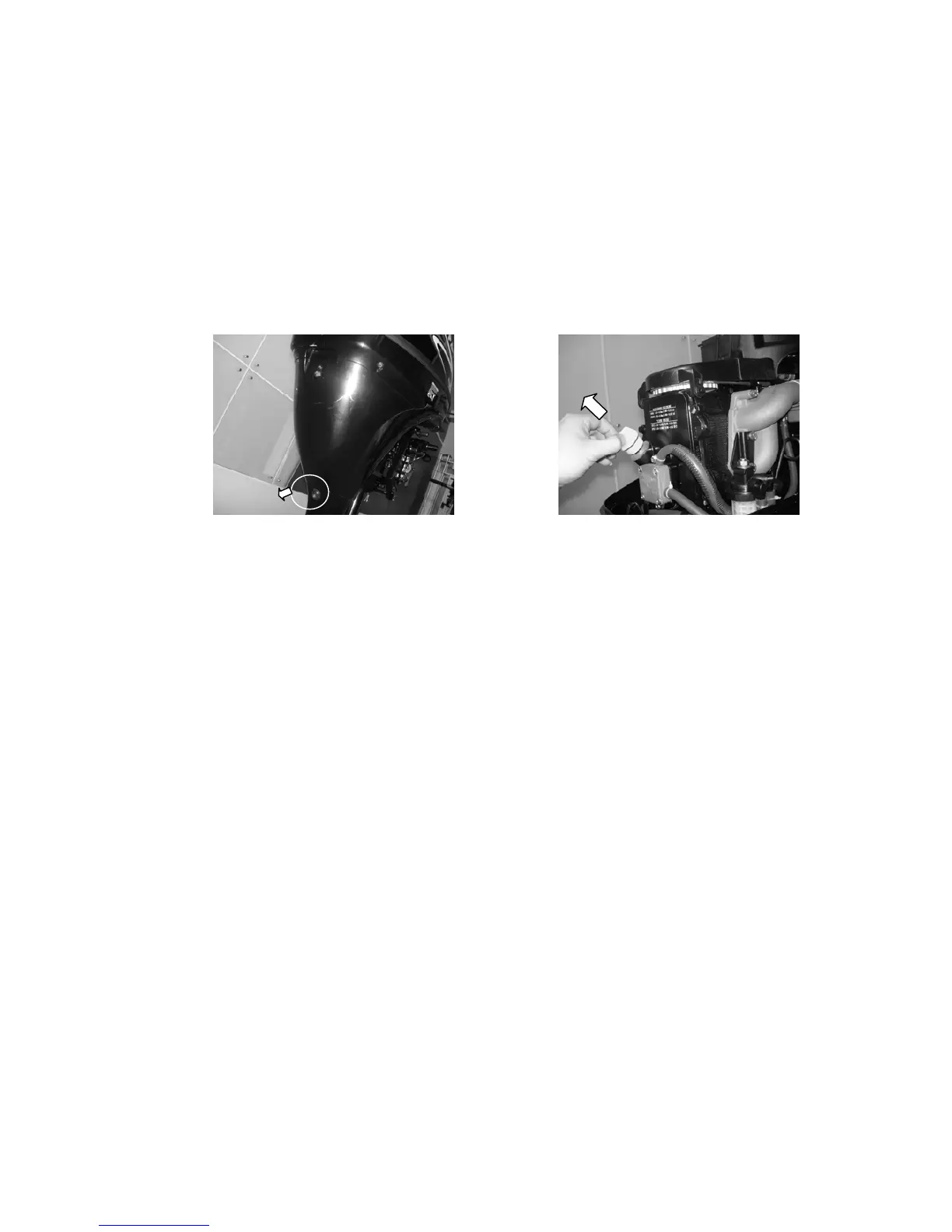

1. Remove oil level plug, drain plug with washer and gasket; drain off the engine oil.
2. Install new bolt and washer; install drain plug.
3. Fill engine oil through oil filler hole.
Engine oil quantity: 1.0 L (Before changing oil filter)
1.2 L (After changing oil filter）
Oil type: API SE, SF, SE-SF, SG-CD SAE 10W30, 10W40
4. Install oil level plug.
5. Check engine oil level.
Valve clearance
1. Remove stopper hang rope from engine stop switch assy.
Remove spark plug cap from spark plug.
2. Remove starter and belt cover.
3. Remove fuel pump and cylinder cover.
4. Rotate the flywheel clockwise to make the mark “1” on driven pulley align with the mark“▼” on
the cylinder head.
Check the clearance between the intake and exhaust valves of the upper cylinder. Adjust it if
necessary.
5. Rotate the flywheel clockwise to make the mark “2” on driven pulley align with the mark“▼” on
the cylinder head.
Check the clearance between the intake and exhaust valves under the lower cylinder. Adjust it if
necessary.
CAUTION:
16
