6. Insert the start rope in the notch of the start-up wheel and turn the start-up wheel several rounds in
counter clockwise direction.
7. Pull the starter handle many times to check if the start-up wheel rotates stably. If necessary, repeat
step 6 and step 7.

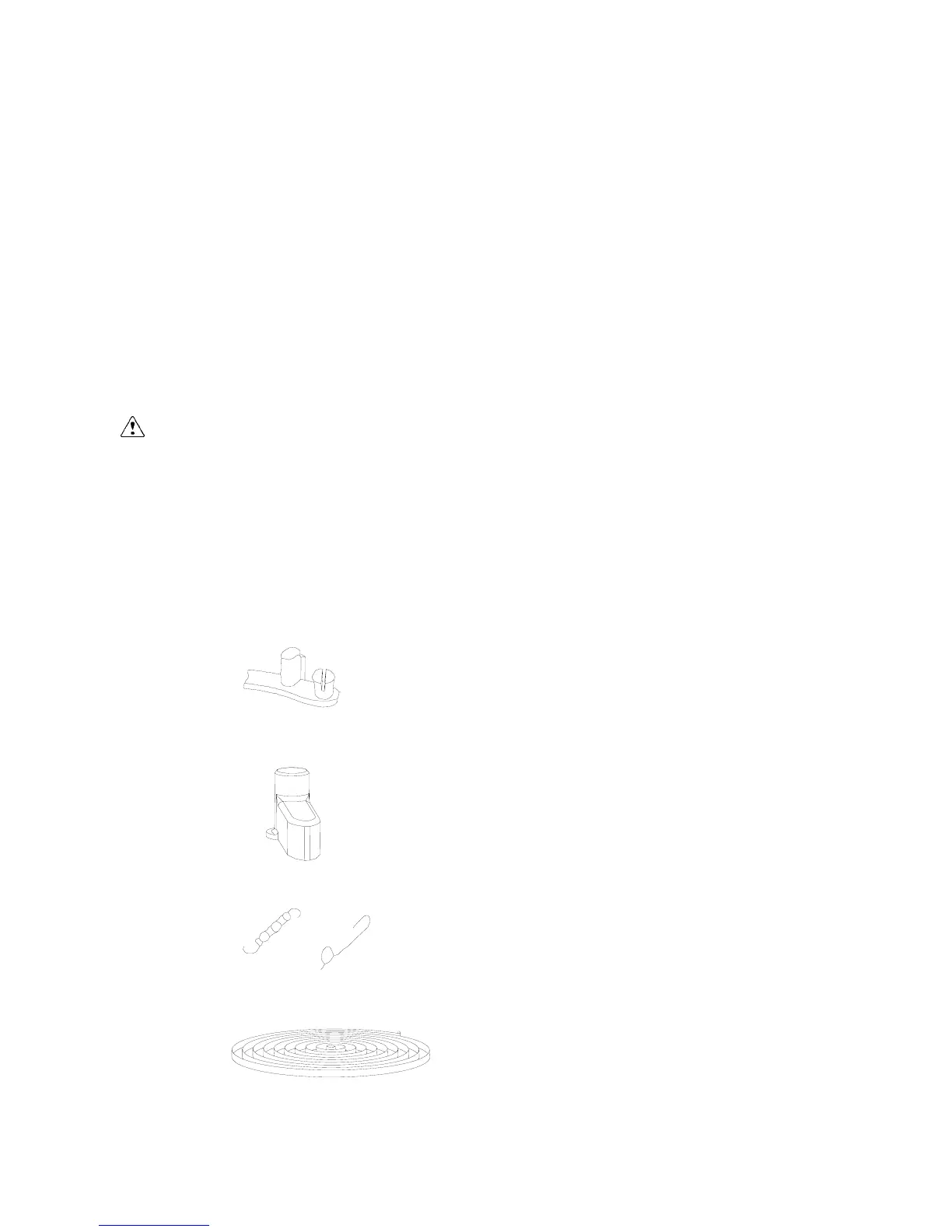

DISASSEMBLING AND INSPECTION
Recoil start type
1. Remove the start rope and start frame assy.
2. Remove drive plate screw, and remove the drive plate and drive plate spring.
3. Remove the start-up wheel.
WARNING:
Uninstall the start-up wheel carefully, to ensure that the volute spring does not pop out to hurt
people.
4. Remove the volute spring.
5. Remove the arrester and arrester spring.
6. Inspect if the arrester is cracked, worn or damaged. Replace if necessary.
7. Inspect if the drive pawl is cracked, worn or damaged. Replace if necessary.
8. Check if the tension spring and pawl link are cracked, cranked or damaged. Replace if necessary.
9. Check if the volute spring is broken, cranked or damaged. Replace if necessary.
