Parsun F15BW Service Manual
4
of 1
of 1 rating
106 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
10 Nm
13
14
15
16
17
19
20
21
22
23
F15-01000012
F15-01000008
F15-01000009
F15-01000007
GB/T91-1.6x12
F15-01030200
GB/T848-10
F4-01090301
GB/T5783-M6x30
六角头螺栓M6×30
衬套尼龙圈
衬套垫圈
衬套波形垫圈
手柄衬套(高)
开口销φ1.6×12

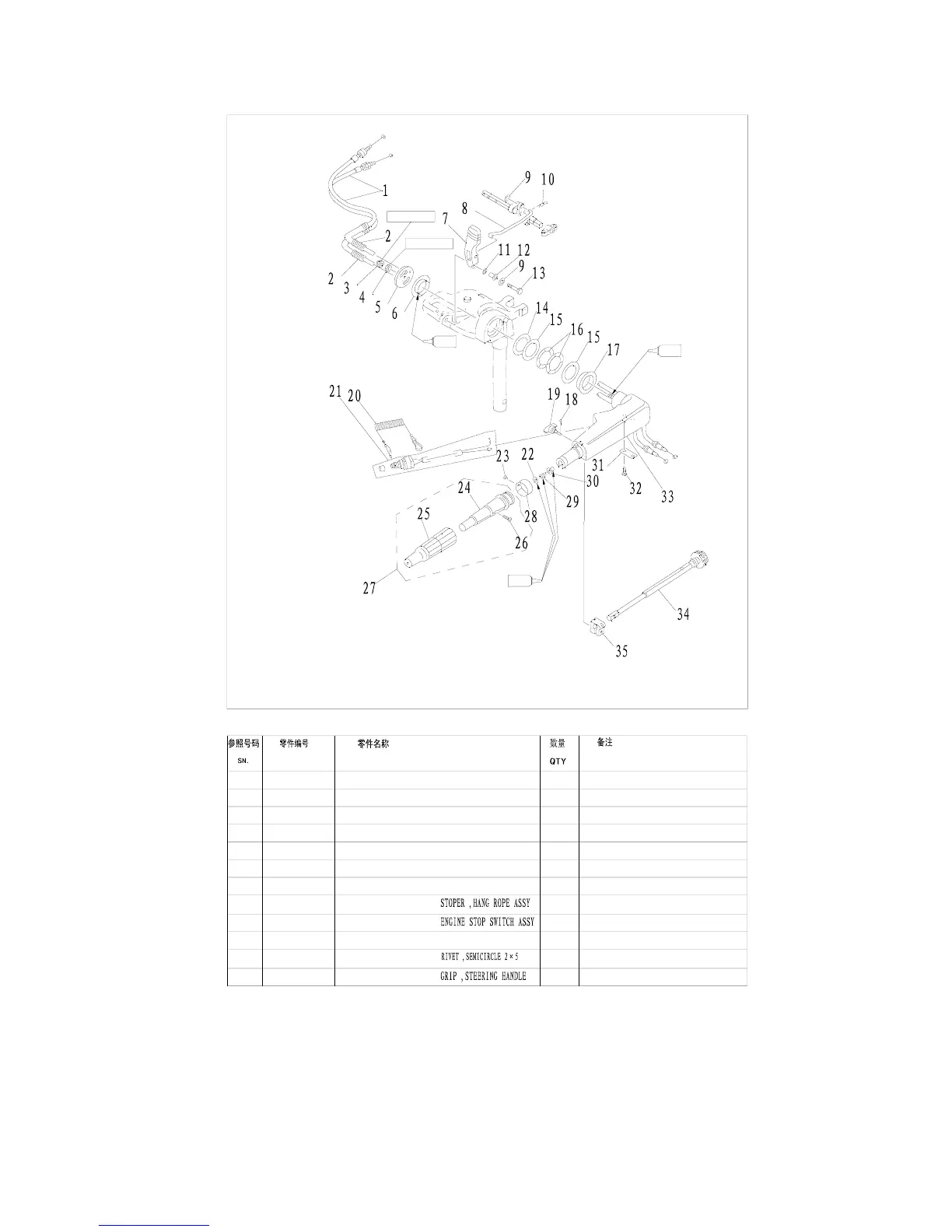

阻力调整旋钮组件
急停开关组件
小垫圈10
操舵手柄塑胶套
HEXAGON BOLT M6×30
WASHER ,NYLON
WASHER
WASHER ,WAVE
BUSH ,HANDLE
PIN ,COTTER φ1.6×
1
SMALL WASHER 10
BOLT
1
2
1
2
1
1
1
1
1
1
1
1
引擎停止安全索
F4-01090401
F4-01090400
GB/T827-2x5
标牌铆钉2×5
REMARKS
PART NO.
DESCRIPTION
23 Nm
L
1243
G
G
18
24
76
81
83
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
7
Identification
7
Propeller Selection
7
Emergency Start
7
Safety While Working
8
Disassembly and Assembly
9
One-Time Use Parts
10
Pre-Delivery Check
10
Special Tools and Detection Device
12
Explosive Drawing and Symbol
14
Specifications
15
Outboard Engine Specifications
15
Maintenance Information
16
Power Unit
16
Lower Unit
17
Ignition System
17
Charge System
18
Tightening Torque
18
Specified Torque
18
General Torque
19
Periodic Service
20
Maintenance Time Table
20
Fuel System
21
Power Unit
21
Engine Oil Level
21
Changing Engine Oil
22
Valve Clearance
22
Spark Plug
23
Control System
23
Throttle Grip
23
Idling Speed
24
Start-In-Gear Protection
25
Lower Unit
25
Gear Oil
25
Changing Gear Oil
25
Lower Unit Leakage Check
26
General Inspection
26
Anode
26
Grease Points
26
Cooling Water Passage
27
Thermostat
28
Recoil Starter
28
Notice
28
Explosive Drawing
29
Disassembling
33
Start Rope Replacement
33
Disassembling and Inspection
34
Assembling
35
Installation
35
Ignition System
35
Notice
35
Explosive Drawing
36
Wiring Diagram
41
Spark Plug Ignition
41
Spark Plug Cap
42
Flywheel Maintenance
42
CDI Inspection
42
Ignition Coil Inspection
42
Pulsed Coil Inspection
43
Charge Coil Inspection
43
Fuel System
44
Notice
44
Explosive Drawing
44
Throttle Connecting Rod Adjustment
50
Fuel Joint Removal and Inspection
50
Fuel Pump Removal and Inspection
50
Filter Inspection
51
Power Unit
52
Notice
52
Explosive Drawing
52
Special Tools
60
Compression Pressure Inspection
60
Disassembling Power Unit
61
Oil Pressure Inspection
61
Oil Pressure Switch Inspection
61
Belt Pulley and Timing Belt
62
Disassembling and Inspection
63
Cylinder Cover
63
Disassembling
63
Valve and Valve Guide Bush
64
Valve Spring
64
Valve Rocker Arm and Rocker Shaft
64
Camshaft
64
Oil Pump Check
65
Valve Guide Bush Replacement
65
Valve Seat Inspection
66
Valve Seat Cutting
66
Valve Installation
67
Assembling Cylinder Cover
67
Crankcase
67
Disassembling
67
Piston
68
Cylinder Bore
68
Piston Pin Diameter
69
Piston Ring
69
Crankshaft
69
Crankpin Oil Clearance
69
Main Journal Oil Clearance
70
Cylinder Body and Crankcase
70
Full Installation
70
Piston Connecting Rod Installation
70
Piston Ring Installation
71
Piston Installation
71
Crankshaft Installation
71
Assembling Power Unit
72
Upper Unit
74
Top Cowling
74
Explosive Drawing
74
Disassembling and Inspection
75
Bottom Cowling
76
Explosive Drawing
76
Disassembling and Inspection
80
Steering Handle
81
Explosive Drawing
81
Disassembling and Inspection
84
Bracket
85
Explosive Drawing
85
Disassembling and Inspection
89
Upper Unit
91
Explosive Drawing
91
Disassembling and Inspection
92
Lower Unit
93
Water Pump Assembly
93
Explosive Drawing
93
Disassembling and Inspection
94
Lower Unit
95
Explosive Drawing
95
Disassembling and Inspection
100
Propeller Shaft and Clutch Block
100
Dog Clutch Installation
101
Lower Casing Cover
101
Lower Casing Cover Oil Seal and Bearing Installation
101
Drive Shaft
102
Shift Rod Cam
102
Gear
102
Forward Gear Bearing
102
Lower Casing Inspection
102
Assembling Lower Casing
102
Lower Unit Installation
103
Shim Selection
104
Common Troubles and Solutions
105
