Parsun F4BM User Manual

Cont’d

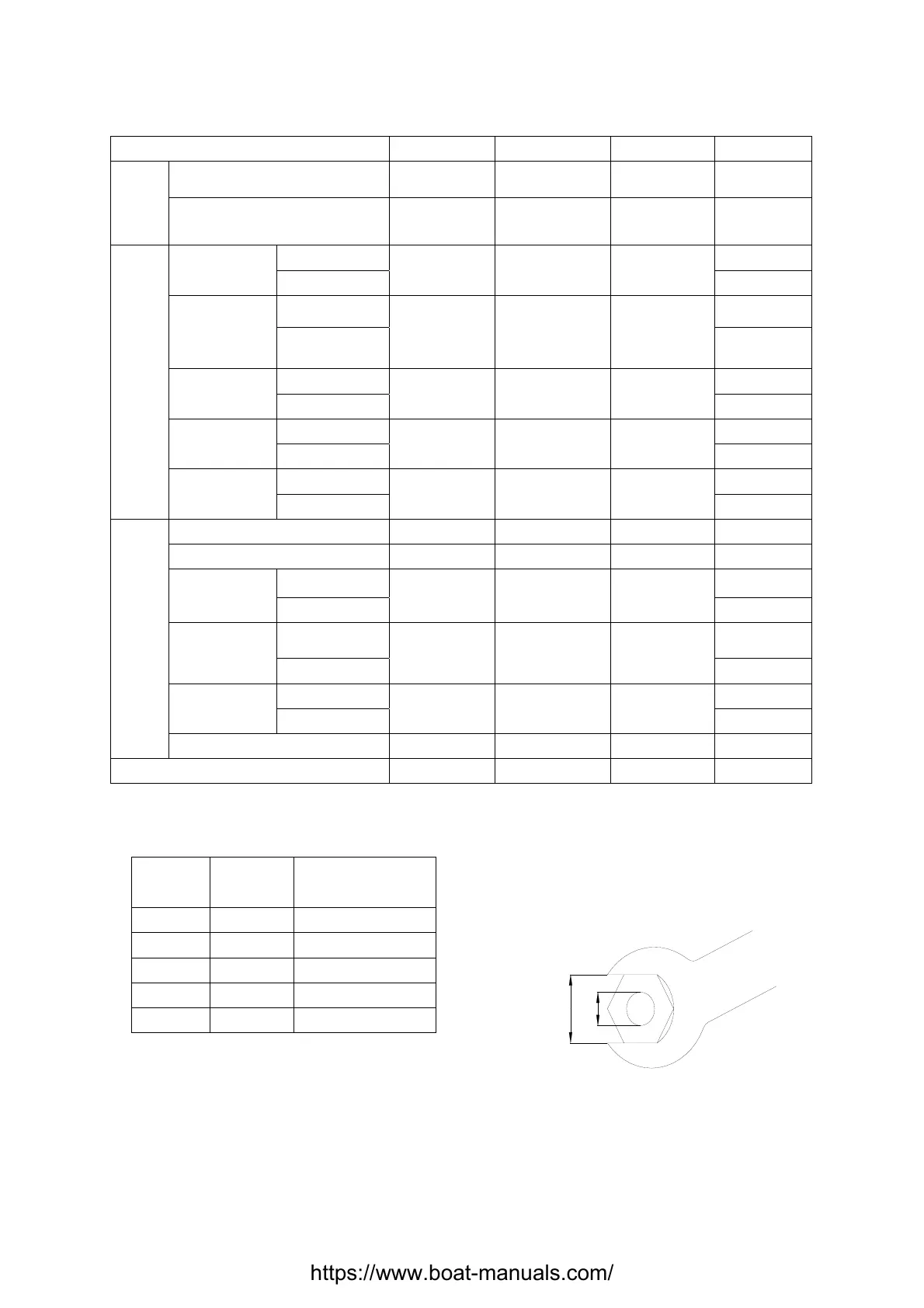

Part to be tightened Part name Thread size Quantity Torque
Connecting rod Bolt M7 2 12 Nm
Power unit
Oil splash gear unit Bolt M6 1 8 Nm
1st tightening 3 Nm Lower unit
mounting
2nd tightening
Bolt M6 2
8 Nm
1st tightening 6Nm
Lower unit
housing
cover
2nd tightening
Bolt M6 2
11 Nm
1st tightening 3 Nm
Anode
2nd tightening
Bolt M6 1
8 Nm
1st tightening 3 Nm Water pump
housing
2nd tightening
Bolt M6 4
8 Nm
1st tightening 3 Nm
Lower unit
Water pump
base
2nd tightening
Bolt M6 1
8 Nm
Steering handle mounting Bolt M8 1 18 Nm
Shift lever bracket Bolt M6 1 4.5 Nm
1st tightening 3 Nm Bracket fixed
cover
2nd tightening
Bolt M6 2
8 Nm
1st tightening 3 Nm
Tilt lock plate
2nd tightening
Nut M6 2
8 Nm
1st tightening 3 Nm Swivel
bracket
2nd tightening
Nut M6 6
8 Nm
Upper Unit
Clamp bracket Nut M8 1 13 Nm
Ignitor ass’y Bolt M6 2 8Nm
General torque
Nut (a) Bolt (b) Torque
8mm M5 5Nm
10mm M6 8 Nm
12mm M8 18 Nm
14mm M10 36 Nm
17mm M12 43 Nm
b
a
12
