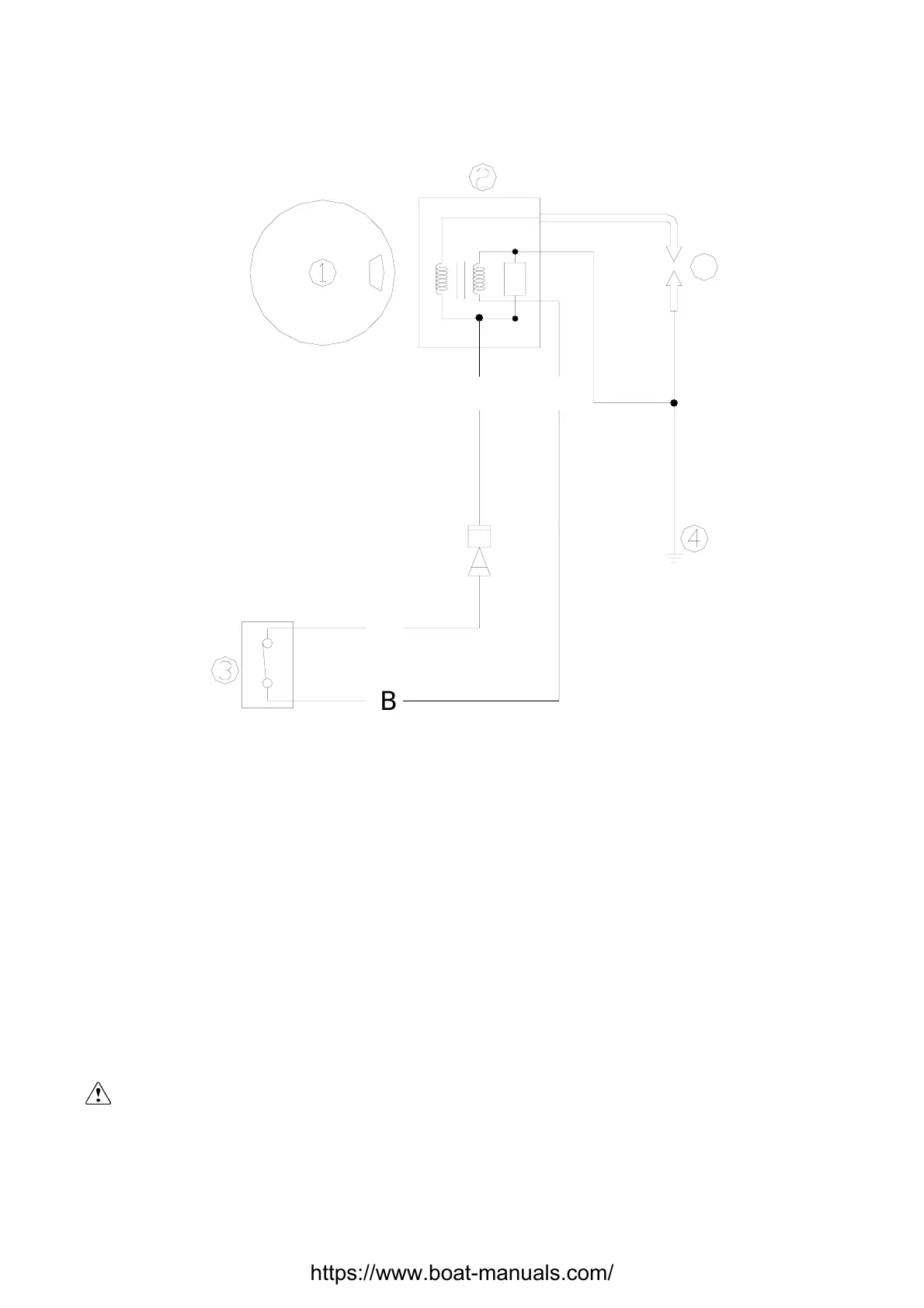

WIRING DIAGRAM
5
W
B
B
W
○
1 Flywheel
○
2 Ignition coil
○
3 Engine stop switch
○
4 Grounding
○
5 Spark plug
Wire beam color: W White
B Black
SPARK PLUG IGNITION
1. Remove spark plug cap from spark plug. .
2. Connect the ignition tester to the spark plug cap.
3. Start the engine, and observe the sparks through the discharge window of the tester.
WARNING
Do not touch any joint part of the lead wire of the tester.
Keep away from inflammable gas or liquid, to prevent accident resulting from spark ignition.
