The valve seat width: 0.6～0.8mm
The maximum valve seat width: 1.1mm
Valve seat cutting
1. Use 45
o
cutter to adjust the valve seat width. Turn the cutter clockwise until the valve seat face
is smooth.

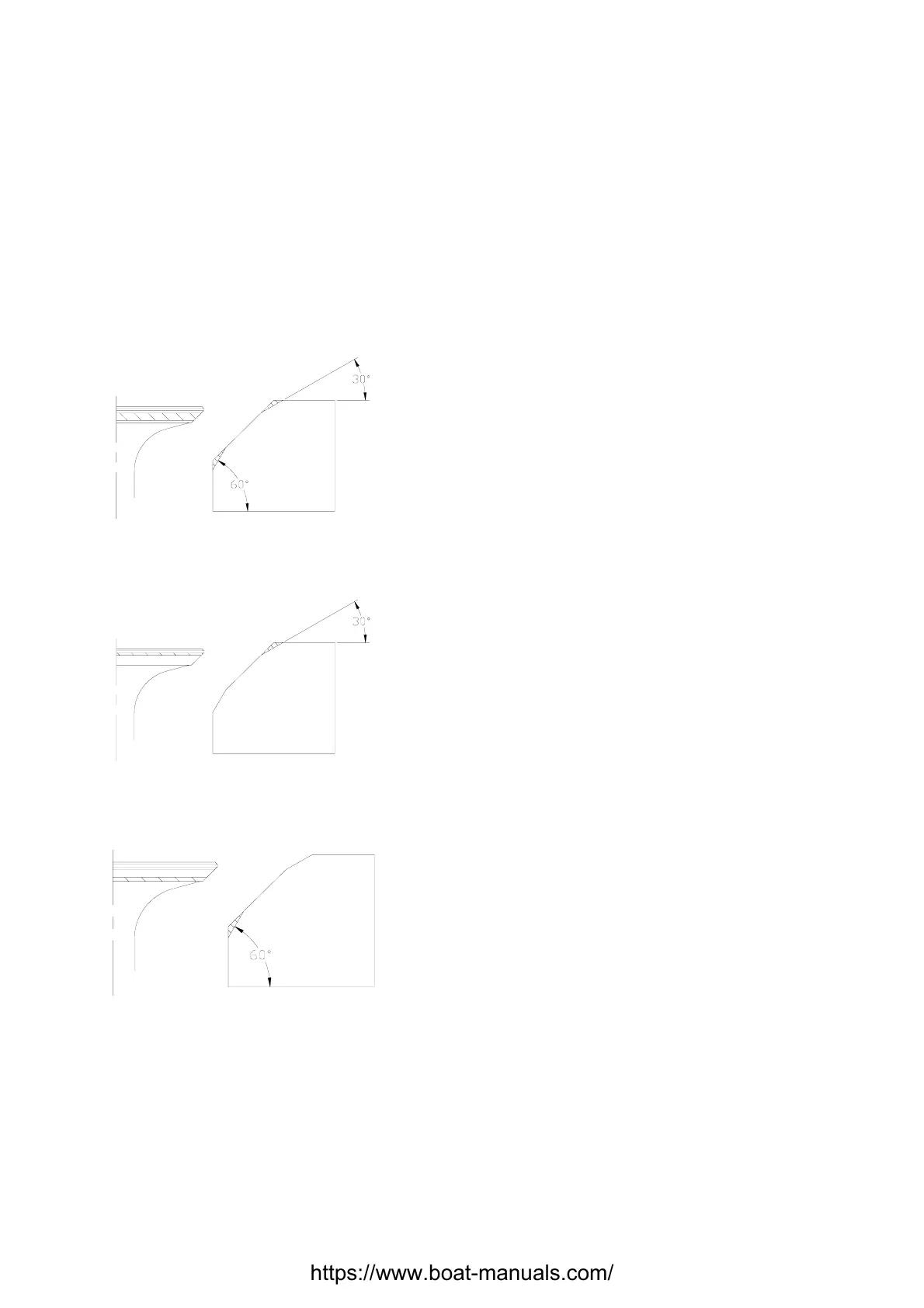

2. If the valve seat is centered on the valve face but it’s too wide, to reduce the valve seat width, use
30
o
cutter to adjust the top edge of the seat, and use 60
o
cutter to adjust the bottom edge of the
seat.
3. If the valve seat is too narrow and on the top edge of valve surface, use 30°cutter to adjust the
top margin of the seat, and use 45°cutter to adjust the valve seat width if necessary.
4. If the valve seal surface is too narrow and on the bottom edge of valve surface, use 60°cutter to
adjust the bottom edge of the seat, and use 45°cutter to adjust the valve seat width if necessary.
5. Coat evenly a thin layer of lapping compound onto valve seat, and lap the valve by lapping tool.
6. Clean up the remaining lapping compound.
7. Inspect again the valve seat width.
