Output Connections 2.4
FIGURE 2-12
Relay Output

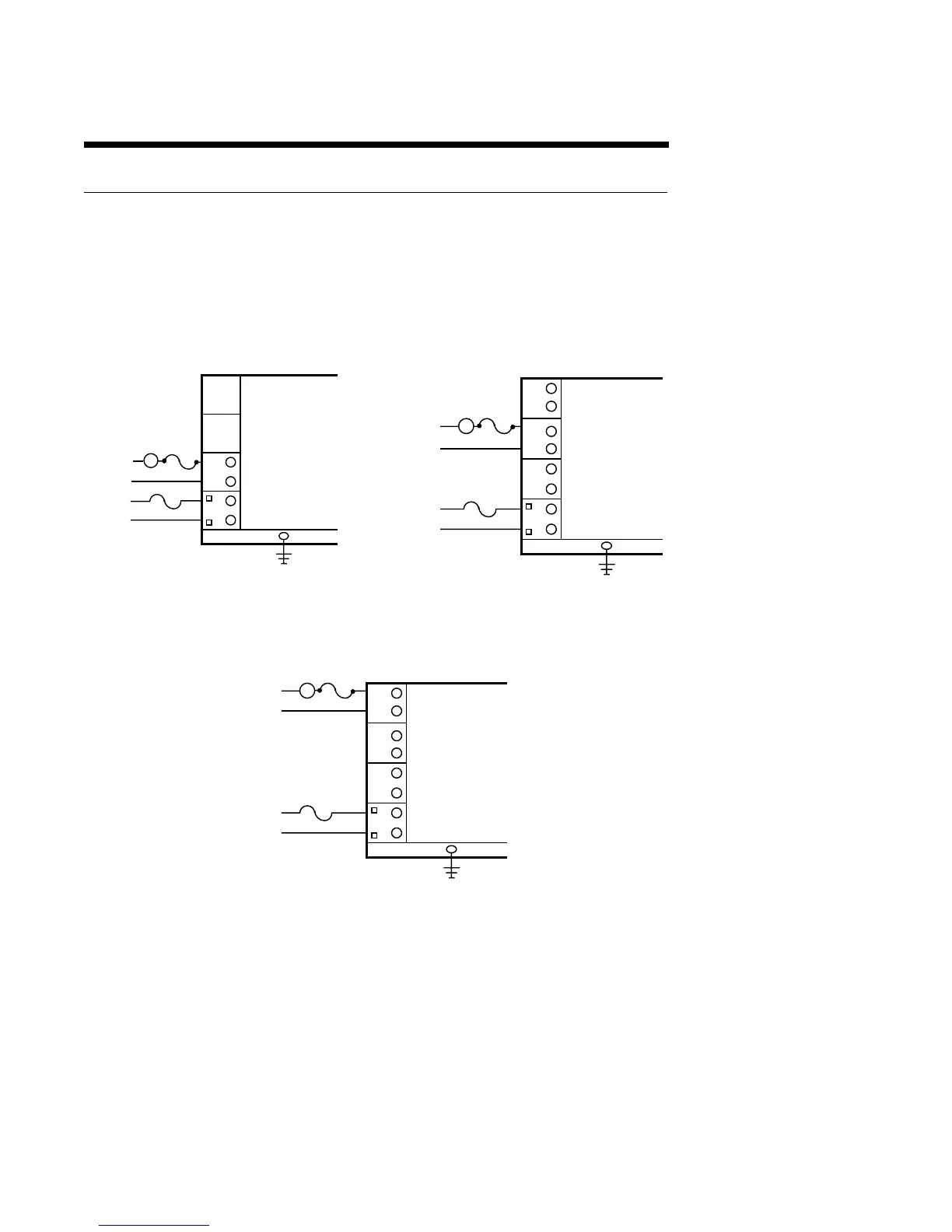

Connections are made to relay A as illustrated below. Connect relay(s) B & C (if present) in
the same manner. Relay contacts are rated at 5 amp Resistive load 115 VAC.
B
A
GROUND
RELAY A
D
C
INPUT
POWER
LOAD
L2
L1
Rear View
B
A
GROUND
D
C
INPUT
POWER
F
E
H
G
L2
L1
LOAD
Rear View
RELAY B
B
A
GROUND
D
C
INPUT
POWER
F
E
H
G
RELAY C
L2
L1
LOAD
Rear View
18
20
Table of Contents
