Partlow MIC 2000 - A - Board Layout - Jumper Positioning

PAGE 59
RELAY A
RELAY B
RELAY C
TOP
FRONT
OF UNIT
COMPONENT SIDE
JU6
JU5
JU4
JU6
JU5
JU4
230 VAC UNITS MAY BE
FIELD CONVERTED
TO 115 VAC BY MOVING
JUMPERS AS SHOWN
ABOVE .
115 VAC UNITS CANNOT
BE FIELD CONVERTED
TO 230 VAC!
230 VAC JUMPER POSITION
115 VAC JUMPER POSITION
R14
R13
R12

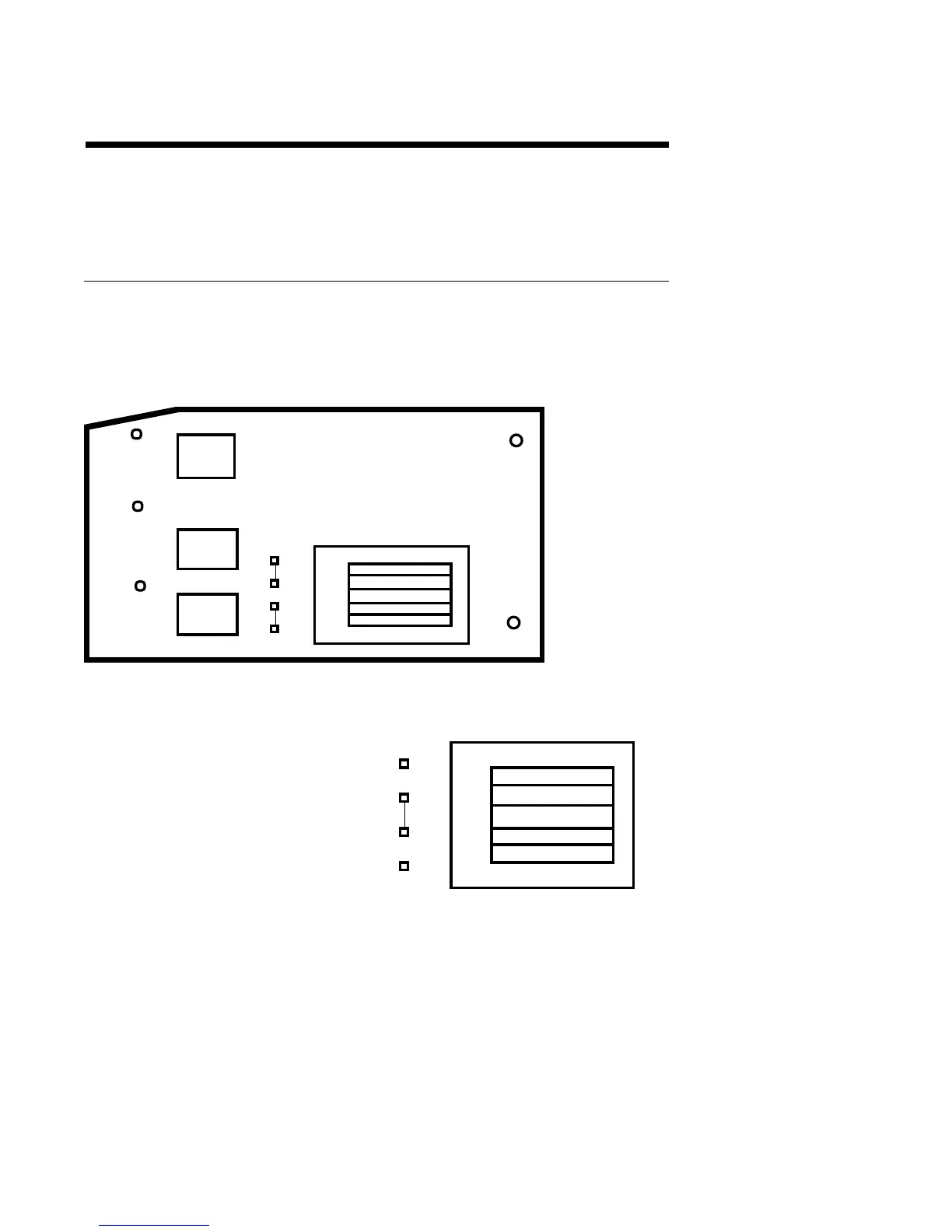

FIGURE A-1 - Power Supply Board
Appendix A
Board Layout - Jumper Positioning
