Partlow MIC 2000 - SSR Driver Output Wiring

PAGE 20

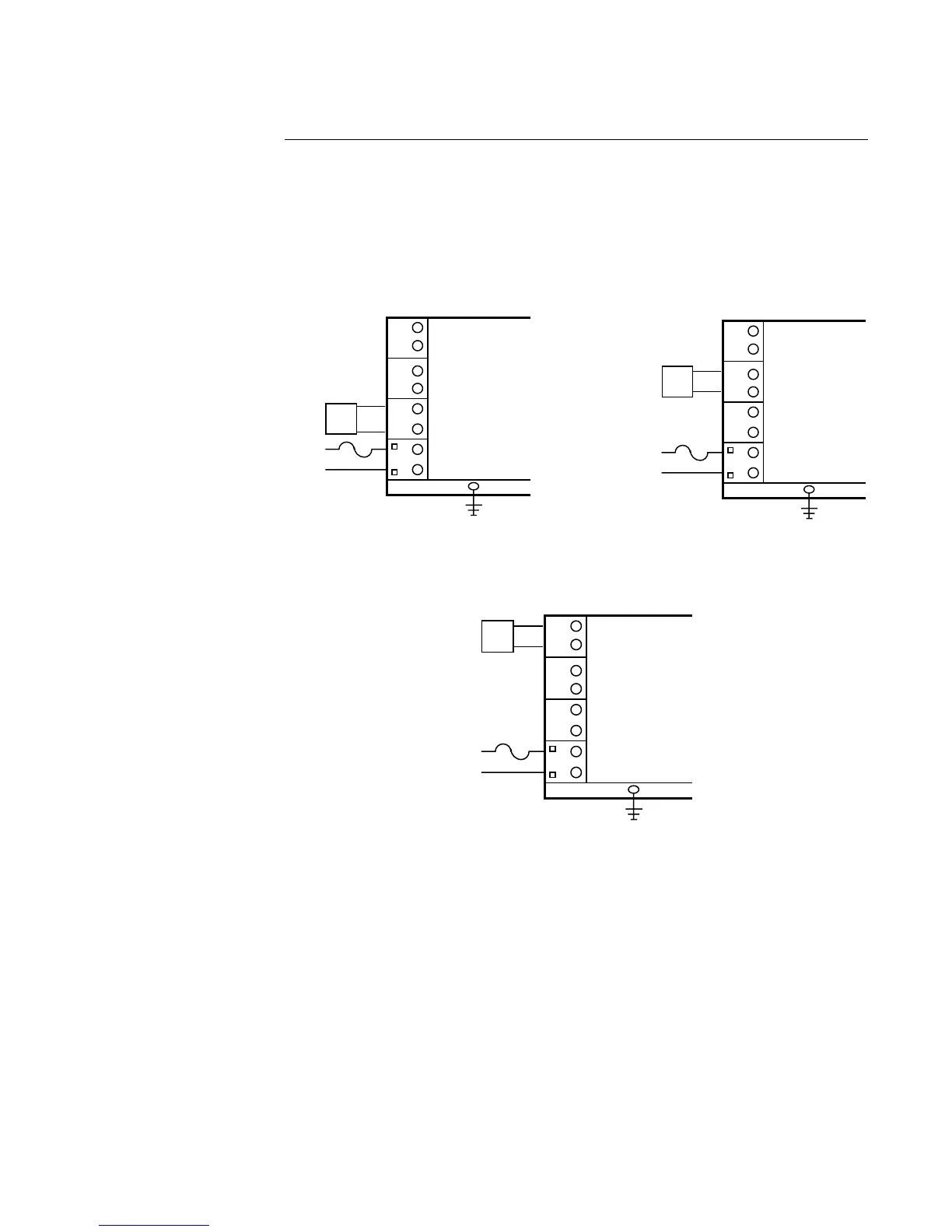

FIGURE 2-13
SSR Driver Output
Connections are made to the solid state relay driver output located in the Relay A position as
shown. The solid state relay driver is a 5 VDC current sink output type. Connect the solid
state relay driver(s) in the Relay B and C position (if present) in the same manner.
B
A
GROUND
D
C
INPUT
POWER
F
E
H
G
SSR DRIVER (RELAY A)
-
+
SOLID STATE
RELAY
Rear View
B
A
GROUND
D
C
INPUT
POWER
F
E
H
G
SSR DRIVER (RELAY B)
-
+
SOLID STATE
RELAY
Rear View
B
A
GROUND
D
C
INPUT
POWER
F
E
H
G
SSR DRIVER (RELAY C)
-
+
SOLID STATE
RELAY
Rear View
