6. SERVICE
E. HYDRAULIC SYSTEM...

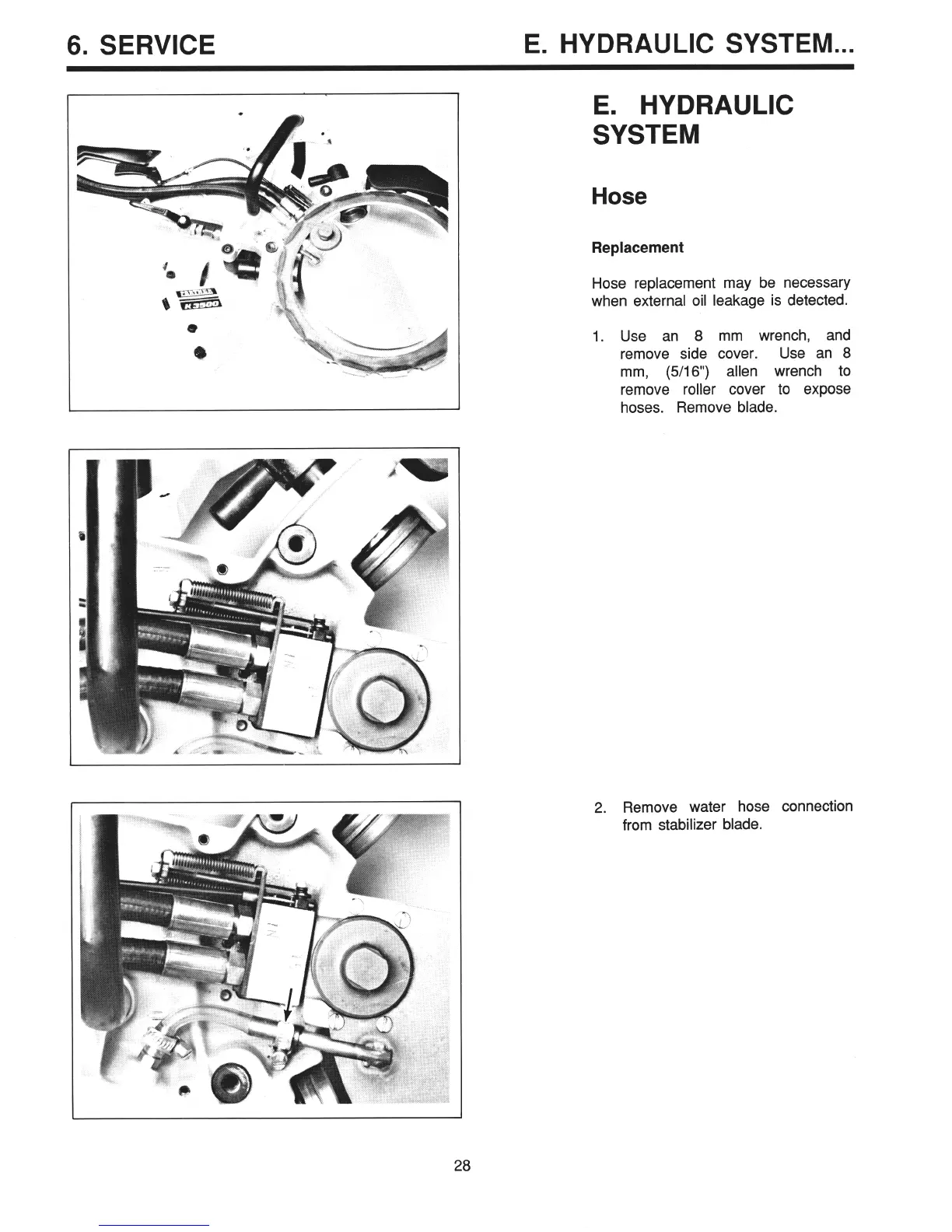

E. HYDRAULIC
SYSTEM
Hose
Replacement
Hose replacement may be necessary
when external oil leakage is detected.
1. Use an 8 mm wrench, and
remove side cover.
Use an 8
mm, (5/16”) allen wrench to
remove roller cover to expose
hoses. Remove blade.
2. Remove water hose connection
from stabilizer blade.
28
