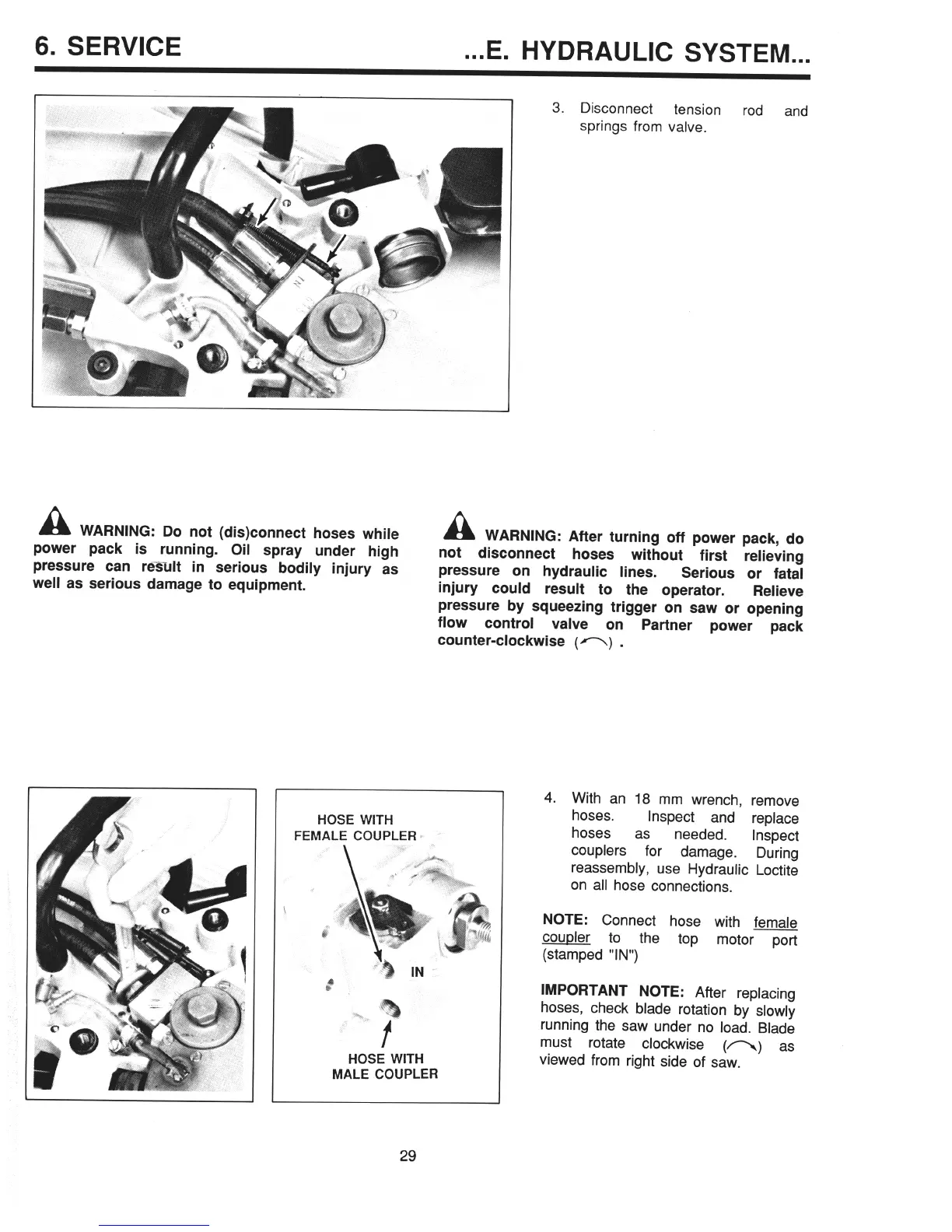

6. SERVICE
. ..E. HYDRAULIC SYSTEM...
3. Disconnect
tension rod and
springs from valve.
;:.-.: :,i:
:
:.
a
WARNING: Do not (dis)connect hoses while
a
-
WARNING: After turning off power pack, do
._. __
power pack is running.
Oil
spray under high
pressure can result in serious bodily injury as
well as serious damage to equipment.
not disconnect hoses wnnout first relieving
pressure on hydraulic lines.
Serious or fatal
injury could result to the operator.
Relieve
pressure by squeezing trigger on saw or opening
flow control valve on Partner power pack
counter-clockwise (n) .
HOSE WITH
FEMALE COUPLER s
HOSE WITH
MALE COUPLER
4. With an 18 mm wrench, remove
hoses. Inspect and replace
hoses as
needed. Inspect
couplers for damage. During
reassembly, use Hydraulic Loctite
on all hose connections.
NOTE: Connect hose with female
coupler to the top motor port
(stamped “IN”)
IMPORTANT NOTE: After replacing
hoses, check blade rotation by slowly
running the saw under no load. Blade
must rotate clockwise (n) as
viewed from right side of saw.
29
