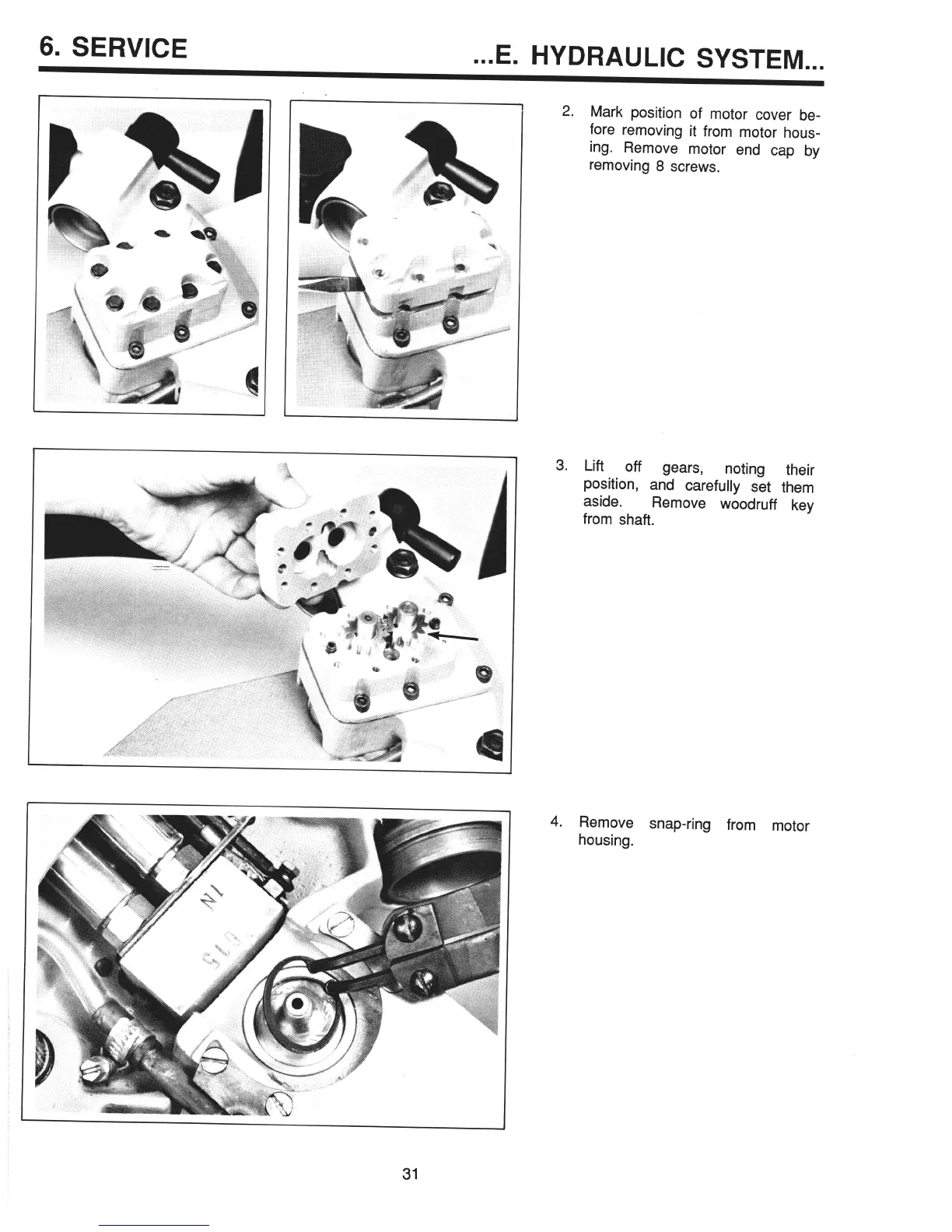

6. SERVICE
. ..E. HYDRAULIC SYSTEM...
31
2. Mark position of motor cover be-
fore removing it from motor hous-
ing. Remove motor end cap by
removing 8 screws.
I
3. Lift off gears,
noting their
position, and carefully set them
aside.
Remove woodruff key
from shaft.
4. Remove snap-ring from motor
housing.
