. ..E. HYDRAULIC SYSTEM...
SHARP
EDGE
SHARP
EDGE

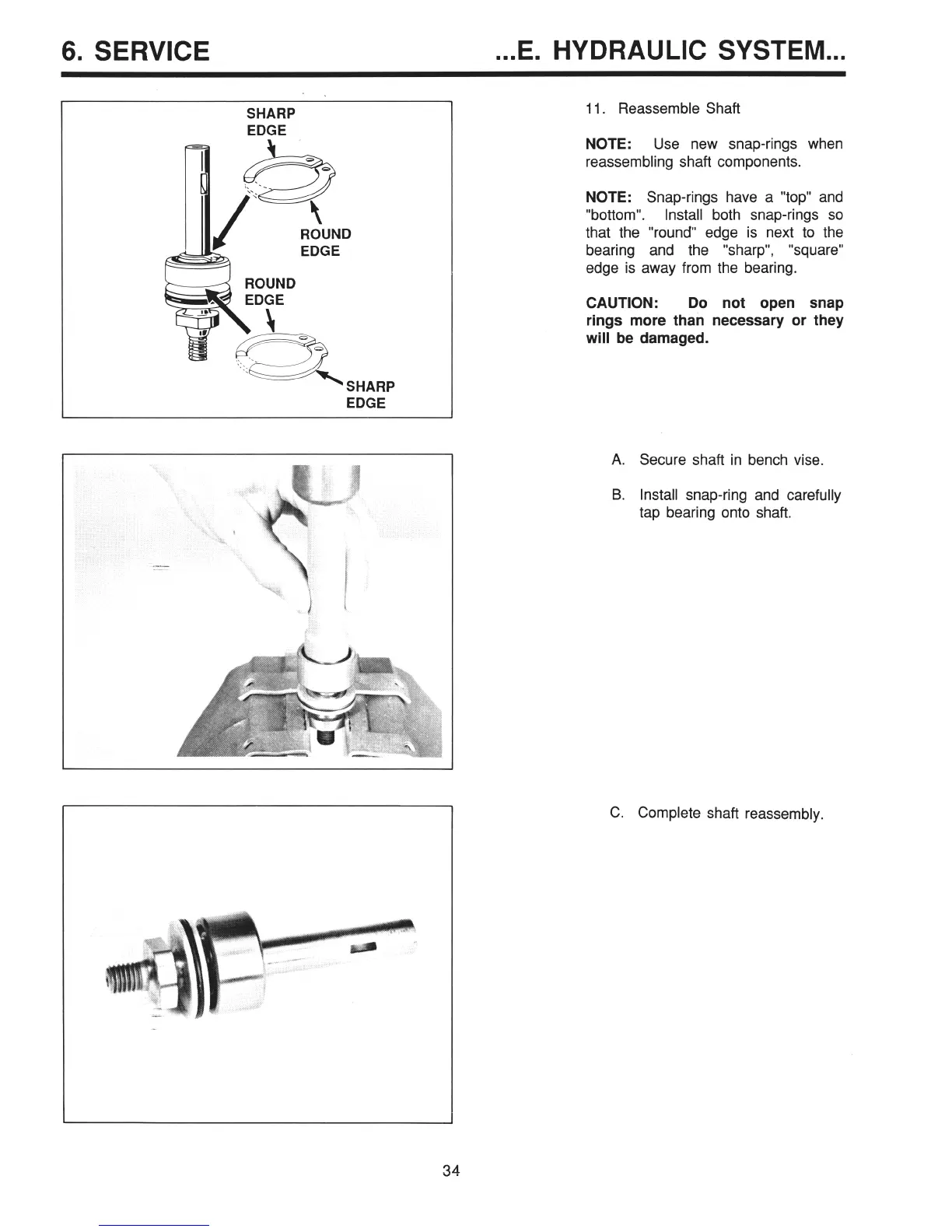

A. Secure shaft in bench vise.
B. Install snap-ring and carefully
tap bearing onto shaft.
C. Complete shaft reassembly.
34
11. Reassemble Shaft
NOTE: Use new snap-rings when
reassembling shaft components.
NOTE: Snap-rings have a “top” and
“bottom”.
Install both snap-rings so
that the “round” edge is next to the
bearing and the “sharp”, “square”
edge is away from the bearing.
CAUTION:
Do not open snap
rings more than necessary or they
will be damaged.
