6. SERVICE
. ..E. HYDRAULIC SYSTEM...
35
J

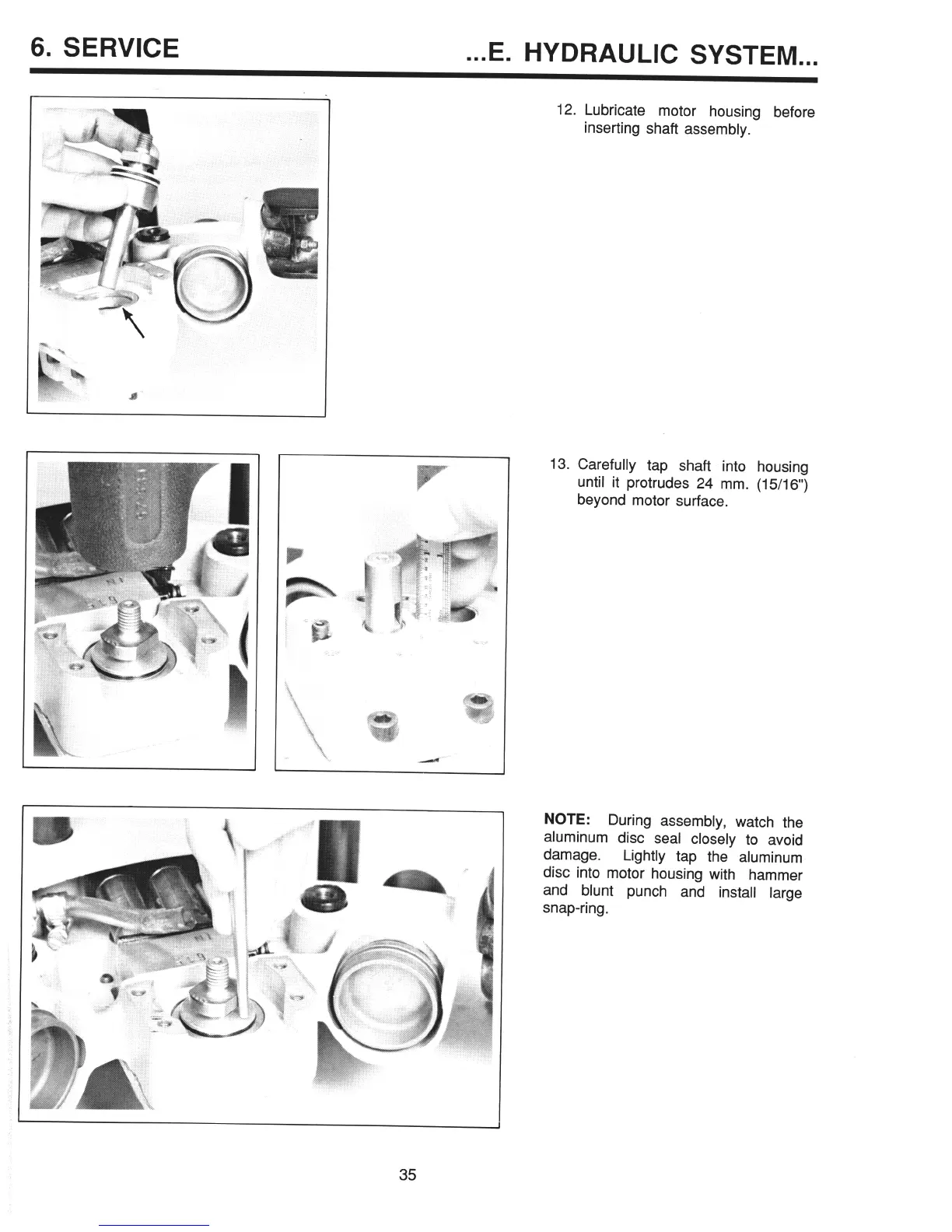

12. Lubricate motor housing before
inserting shaft assembly.
13. Carefully tap shaft into housing
until it protrudes 24 mm. (lWl6”)
beyond motor surface.
NOTE: During assembly, watch the
aluminum disc seal closely to avoid
damage.
Lightly tap the aluminum
disc into motor housing with hammer
and blunt punch and install large
snap-ring.
