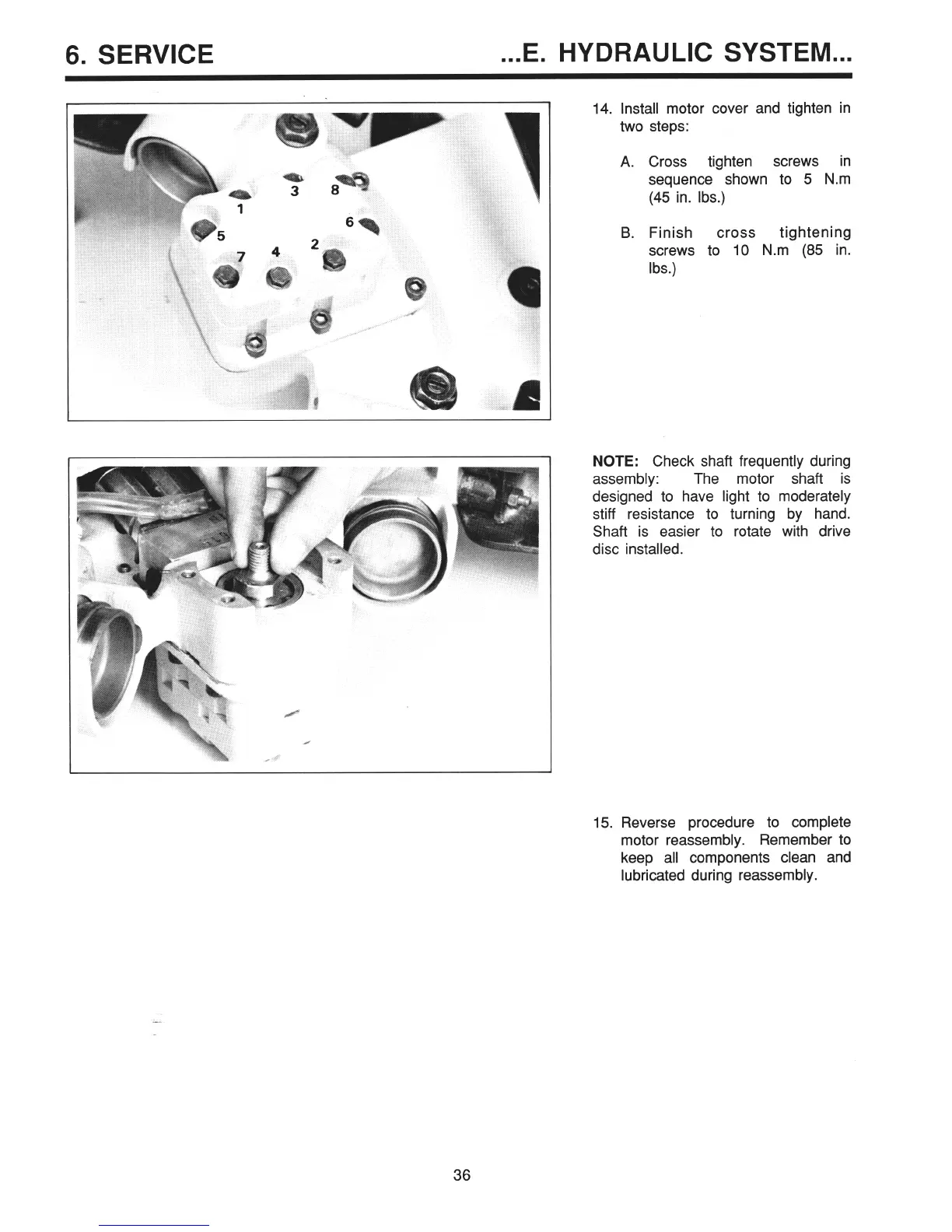

14. install motor cover and tighten in
two steps:
A. Cross tighten screws in
sequence shown to 5 N.m
(45 in. Ibs.)
B. Finish cross
tightening
screws to 10 N.m (85 in.
Ibs.)
NOTE: Check shaft frequently during
assembly:
The motor shaft is
designed to have light to moderately
stiff resistance to turning by hand.
Shaft is easier to rotate with drive
disc installed.
15. Reverse procedure to complete
motor reassembly. Remember to
keep all components clean and
lubricated during reassembly.
-
36
