Partner SP-1030 - Figure 1.4 SP-1030 I;O Connectors

4 CHAPTER 1 GETTING STARTED
I/O connectors

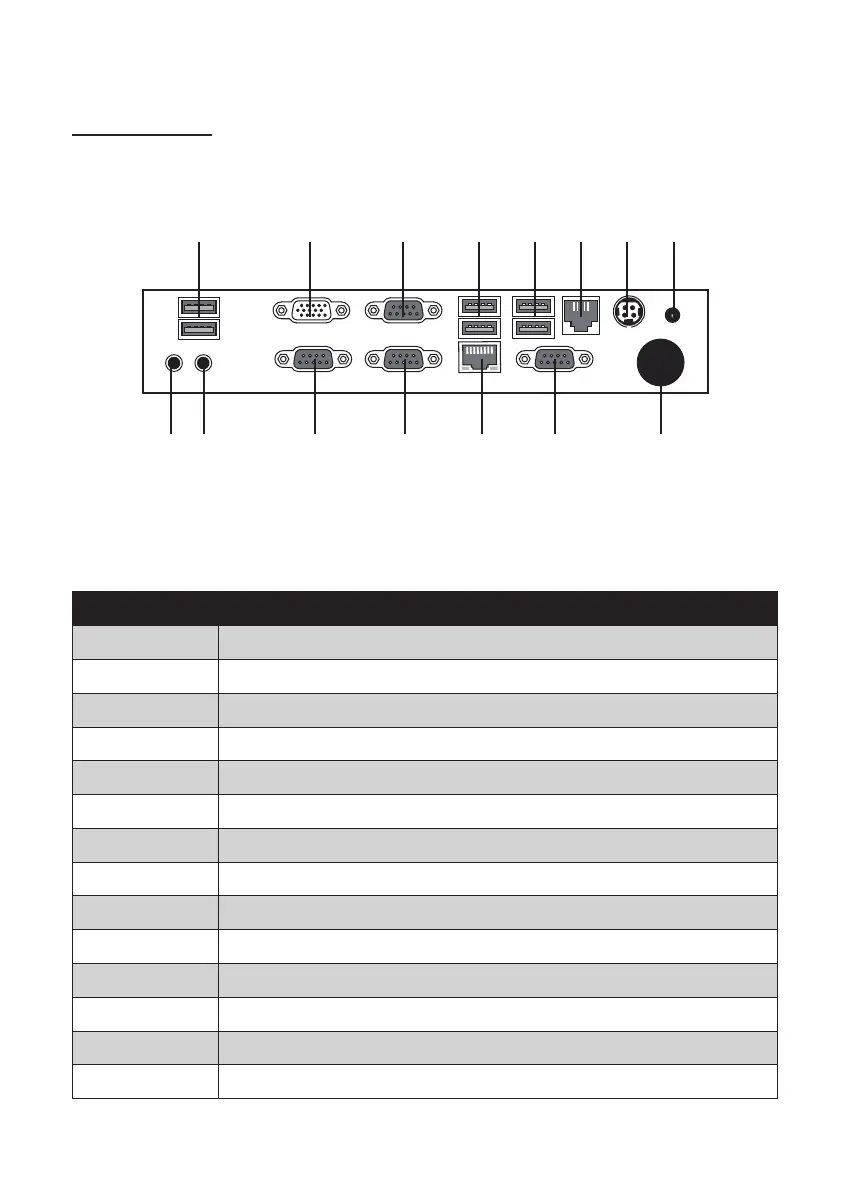

Figure 1.4 SP-1030 I/O connectors
63 1 421 5 7
8 9 10 11 12 13 14
Connector Description
1 USB 2.0 ports
2 VGA port
3 COM 1 port
4 USB 3.0 ports
5 RJ-11 cash drawer port
6 DC 12V input connector
7 DC 12V output connector (for PM-116)
8 Microphone jack
9 Audio output jack
10 COM 3 port
11 COM 2 port
12 LAN jack
13 COM 4 port
14 Cable hole
