Partner SP-1030 - Mainboard; Panel Control Board

65

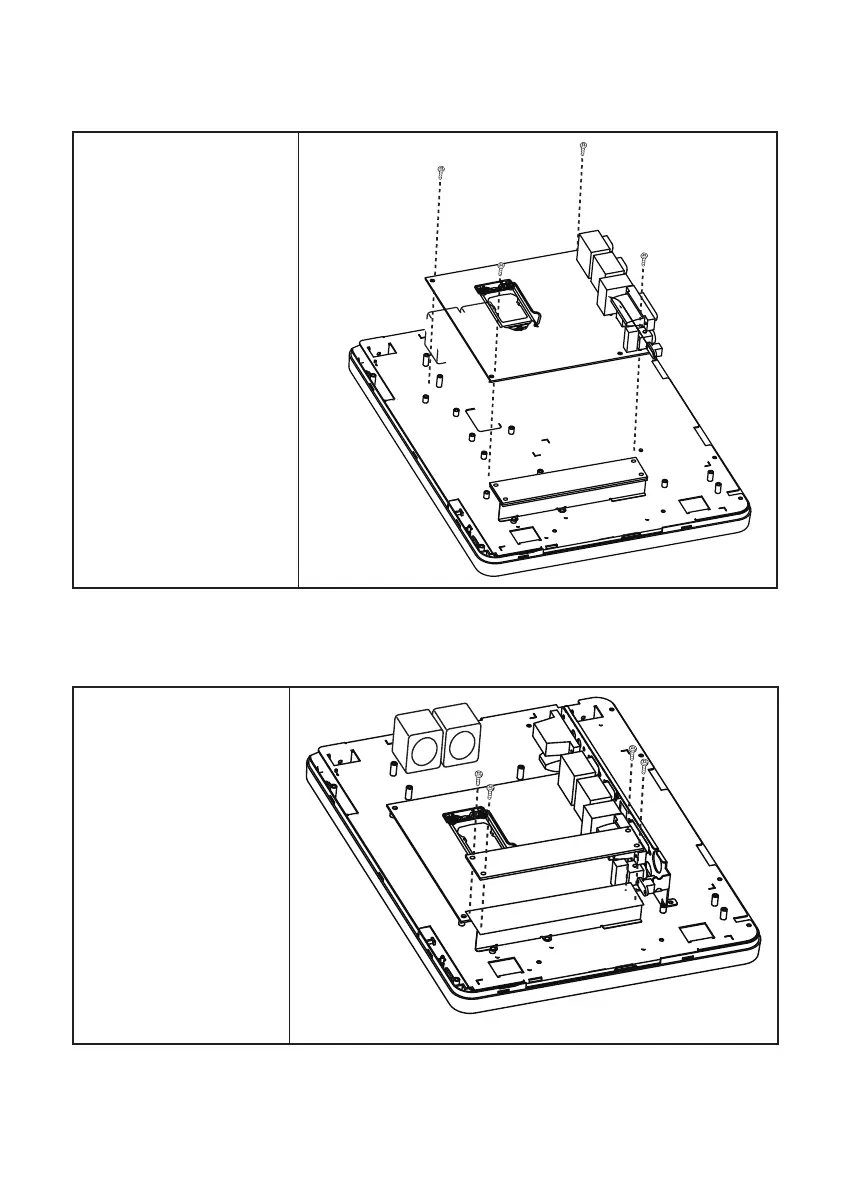

Mainboard
Before proceeding, remove the
following FRUs.
• “SP-1030 Panel” on page 51.
• “Panel Back Cover” on page
52.
• “Heatsink” on page 55.
• “I/O Shield” on page 58.
1. Disconnect all cables from
the mainboard.
2. Remove four screws.
3. Remove the mainboard.
Panel Control Board
Before proceeding, remove the
following FRUs.
• “SP-1030 Panel” on page
51.
• “Panel Back Cover” on
page 52.
1. Remove four screws.
2. Remove the panel control
board.
