Partner SP-1030 - Mainboard Jumper; Figure 4.2 SP-1030 Mainboard Jumper

49
Mainboard jumper

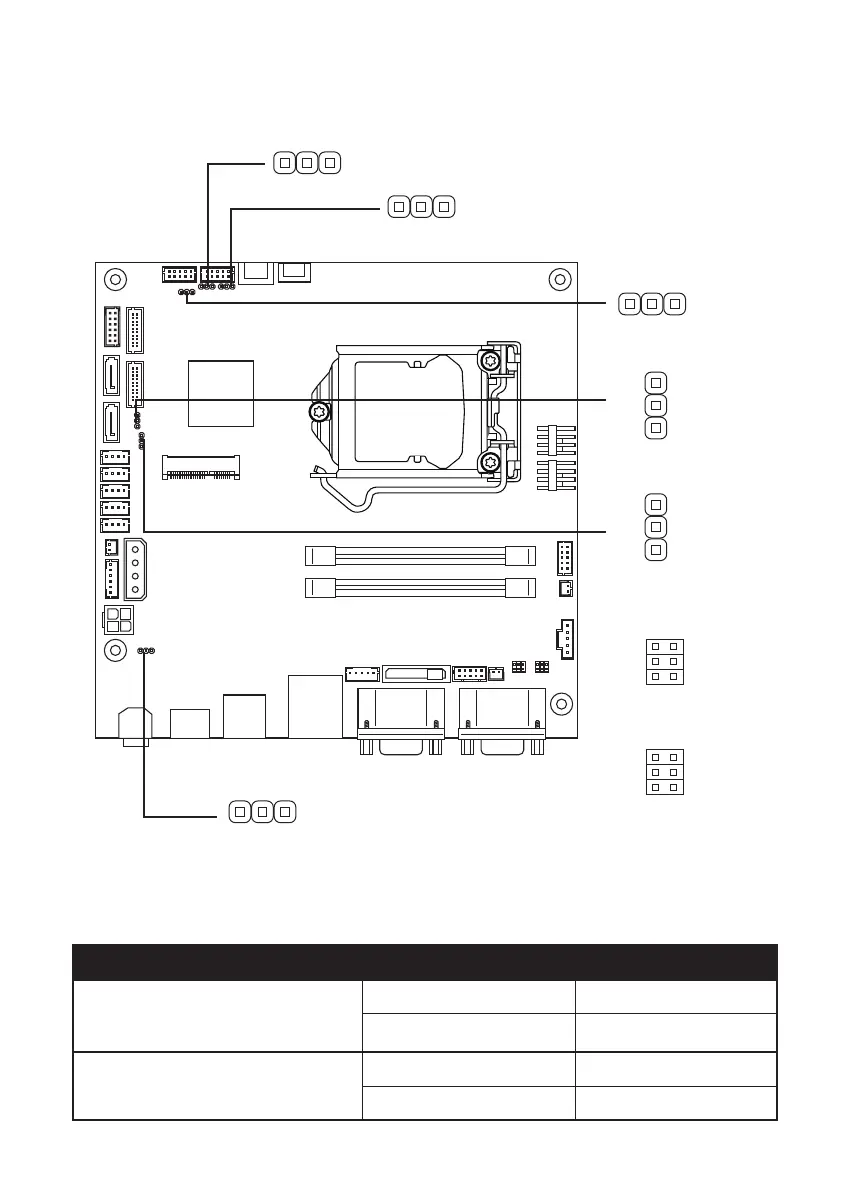

Figure 4.2 SP-1030 mainboard jumper
Jumper Setting Description
JP1
Voltage Switch Jumper for Cash Draw
RJ-11 Connector
1-2 (default) 24V
2-3 12V
JCMOS1
Clear CMOS
1-2 (default) Normal
2-3 Clear
1
1
1
1
1
1
1
5
2
6
1
5
2
6
JP1
JP3
JP2
JCMOS1
JLV3
JLV1
JLV2
J1
