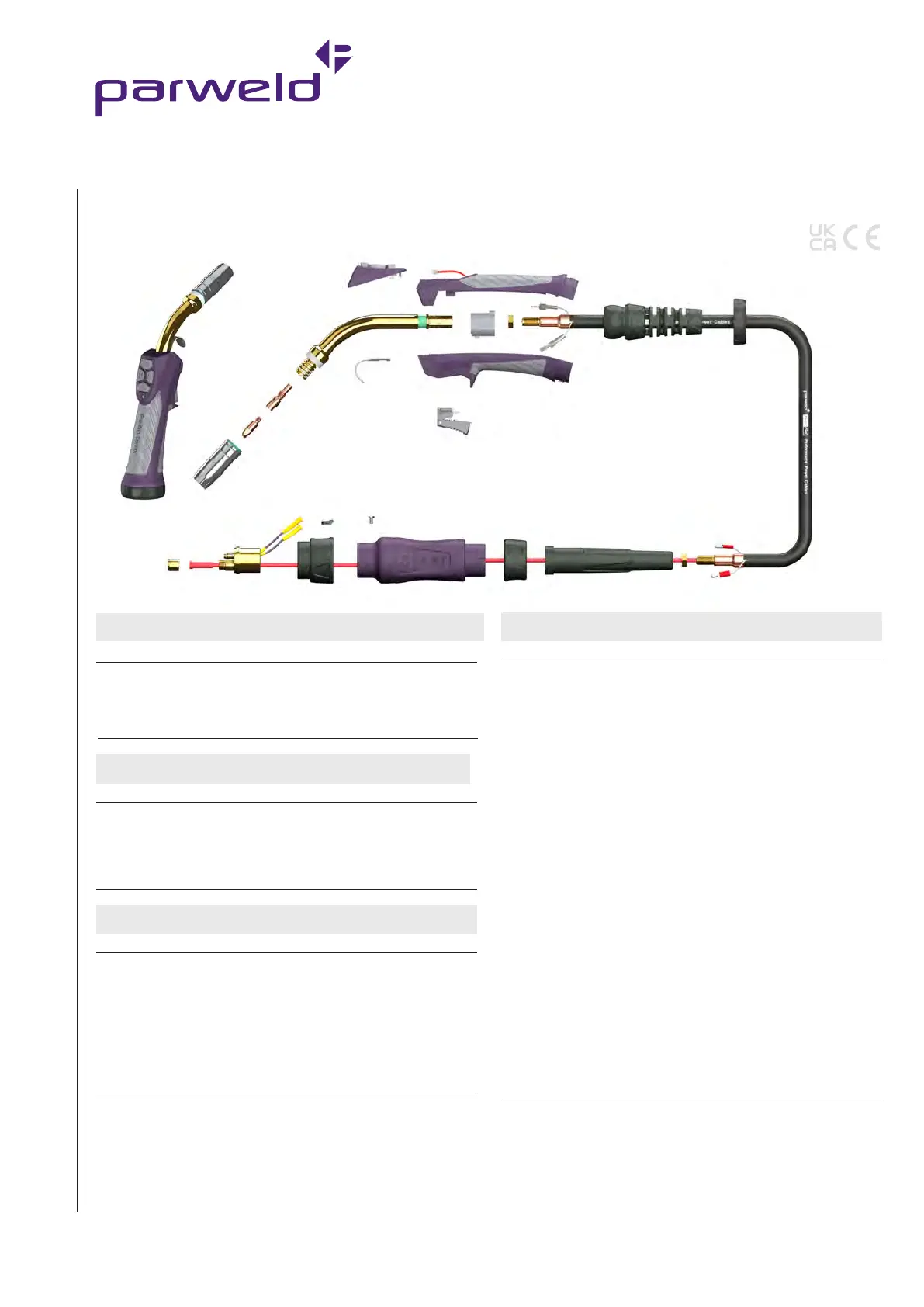

Parweld XTM 221Di - Control Torch Schematic

www.parweld.com
26
A
B
1
2
3
11
12
13
4
5
10
7
6
14
15
16
17
18
19
20
C
5
Pro-Grip Max
®
8
21
Stock Code Description
PRO2500-30ER4
Pro-Grip Control
®
Welding Torch c/w Euro Fitting x 3m
PRO2500-40ER4
Pro-Grip Control
®
Welding Torch c/w Euro Fitting x 4m
PRO2500-50ER4
Pro-Grip Control
®
Welding Torch c/w Euro Fitting x 5m
NB. For OLED Display version add a D to the end of the stock code.
Models
Stock Code Description
A
B2507 Cylindrical Nozzle 5/7"/18mm Bore
B2508* Conical Nozzle 19/32"/15mm Bore
B2509 Tapered Nozzle 15/32"/12mm Bore
B2510 Bottle Nozzle 19/32"/15mm Bore
B2511 Spot Welding Nozzle 5/7"/18mm Bore
Nozzles
Stock Code Description
B
B2504-08 Contact Tip .030"/0.8mm M6 ECu
B2504-09 Contact Tip .035"/0.9mm M6 ECu
B2504-10* Contact Tip .040"/1.0mm M6 ECu
B2504-12 Contact Tip .045"/1.2mm M6 ECu
B2505-08 Contact Tip .030"/0.8mm CuCrZr
B2505-09 Contact Tip .035"/0.9mm CuCrZr
B2505-10 Contact Tip .040"/1.0mm CuCrZr
B2505-12 Contact Tip .045"/1.2mm CuCrZr
Contact Tips
Stock Code Description
1
B2506* Tip Adaptor M6
NI
B2536 Tip Adaptor M8 (See M8 Tips)
2
B2502 Shroud Spring
3
B2501 Swan Neck
4
B1515/PG Handle Location Body
5
B1505 Lock Nut
6
B8015 Cable Support c/w Knuckle Joint
7
B1521 Cable Terminal
8
B8514-MC4 Pro-Grip Control
®
Handle Kit c/w 4 Button Control
9
B8516 Pro-Grip Max
®
Trigger
10
B2517 Hanger Hook
11
B2503-30 Hyperflex
™
Cable Assembly x 3m
B2503-40 Hyperflex
™
Cable Assembly x 4m
B2503-50 Hyperflex
™
Cable Assembly x 5m
12
B1522 Cable Terminal-Male
13
B2841 Cable Support
14
B1518 Gun Plug Housing c/w Nut
15
B1526 Gun Plug Screw
16
B1519 Gun Plug Nut c/w Insert
17
Spring Pin 2 Spring Pin Assembly
18
B1528 Gun Plug Body c/w Spring Pins
19
B1524 Gun Plug 'O' Ring
20
B1525 Liner Nut
21
PROMC4 4 Button MIG Control Module
PROMC4D OLED Display MIG Control Module
Components
Pro-Grip Control
®
250A
Air Cooled MIG Torch
230A CO
2
, 200A Mixed Gas @ 60% Duty Cycle, EN60974-7 .030"-.045"/0.8mm to 1.2mm Wires
* Denotes Standard Build
9.0 Control Torch Schematic
