PCC FTI MB-30 - Medium Brute Seal Kit (MB-SK); Figure 4.6-1 Medium Brute Seal Locations; Table 4.6-1 Medium Brute Seal Kit

Fatigue Technology Inc. 401 Andover Park East Seattle, WA • USA 98188-2868 Tel: (206)246-2010 Fax: (206)244-9886
12 358856-REV K
4.6 MEDIUM BRUTE SEAL KIT (MB-SK)
This kit is used to replace seals in MB-xx models. It is also included as part of the Medium Brute Rework Kit (see
Appendix A.1). Table 4.6-1 is a parts list for the Medium Brute Seal Kit.
For the BMB-10, see Parts List (Table 6.4-1) for itemized seals.
Table 4.6-1
Medium Brute Seal Kit (MB-SK)
Item
Number
Quantity Part Number Description
N/A*
1
2040-001
Seal, Trigger
1
1
1046-012
O-Ring AN6227B-3
2
2
1046-045
O-Ring AN6227B-7
3
2
1046-044
Backup Ring MS28782-7
4
1
1046-043
U Seal 568804
5
1
1046-058
O-Ring MS28775-224
6
1
1046-007
O-Ring A-122-90-BUNA
7
1
1046-002
O-Ring AN6227B-17
8
1
1046-003
Backup Ring MS2878217
9
1
1046-004
O-Ring AN6227-28
10
1
1046-005
Backup Ring MS28782-28
11
1
1046-113
T-Seal 4115B085TP023
12
1
1187-622
Valve, Cartridge Trigger
*Used with legacy triggers (See Table A.2-1, Item 6)

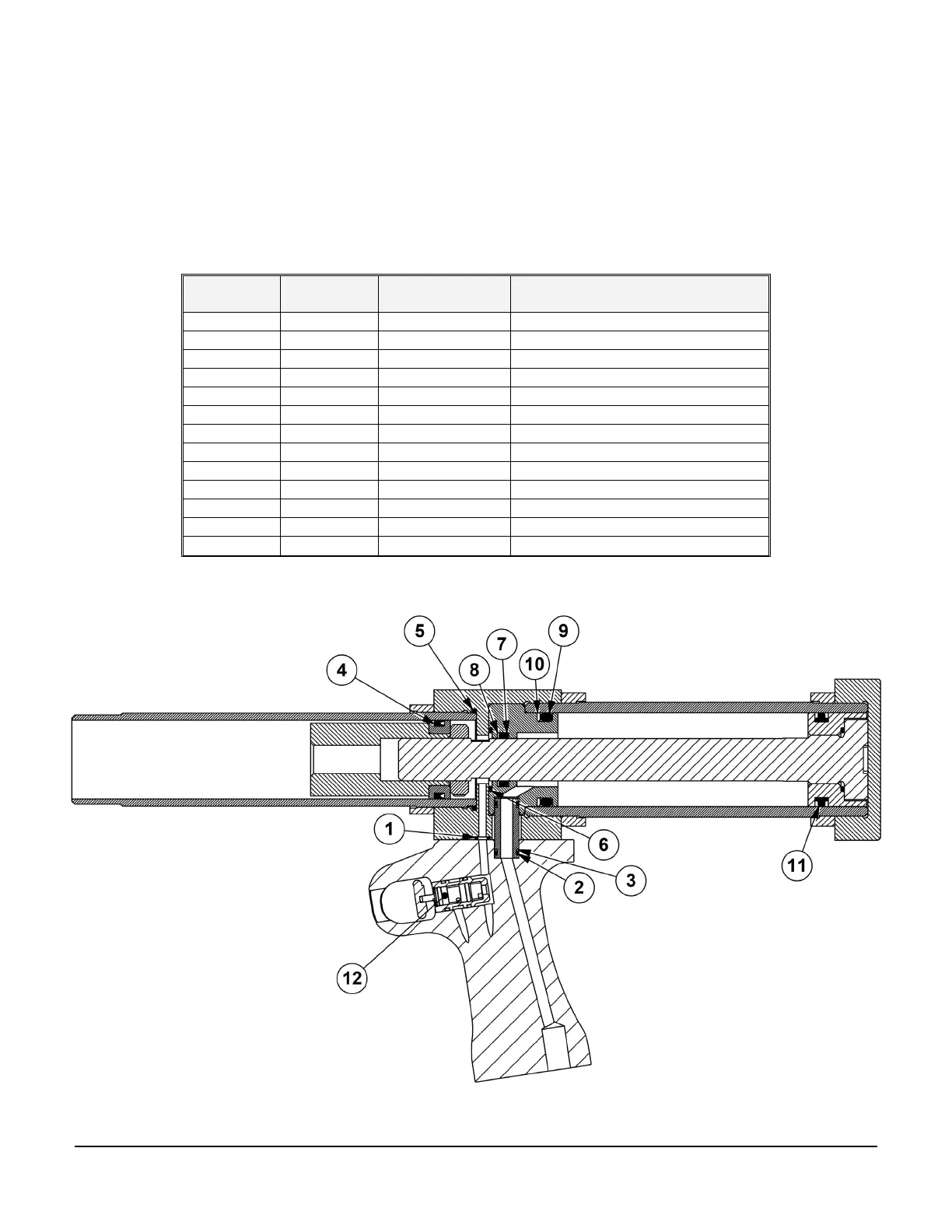

Figure 4.6-1
Medium Brute Seal Locations
