Fatigue Technology Inc. 401 Andover Park East Seattle, WA • USA 98188-7605 Tel: (206)246-2010 Fax: (206)244-9886

358856-REV K 41

A.2 PREVIOUS TRIGGER ASSEMBLY

The previous trigger design (serial numbers smaller than 810) detailed here can be easily replaced with the

improved trigger assembly detailed in Section A.1. Table A.2-1 is a parts list for the old-style trigger assembly.

Table A.2-1

Parts List for Previous Trigger Assembly

Item Number Quantity Part Number Description

2042-001

Trigger, LB Handle

1005-003

Spring, LB Handle

2043-001

Retainer, LB Handle

1045-025

Ball, .250 Diameter Steel

1045-026

Spring Pin, 1/8 x 3/4

2040-001

Seal, LB Handle

2044-001

Sleeve, LB Handle

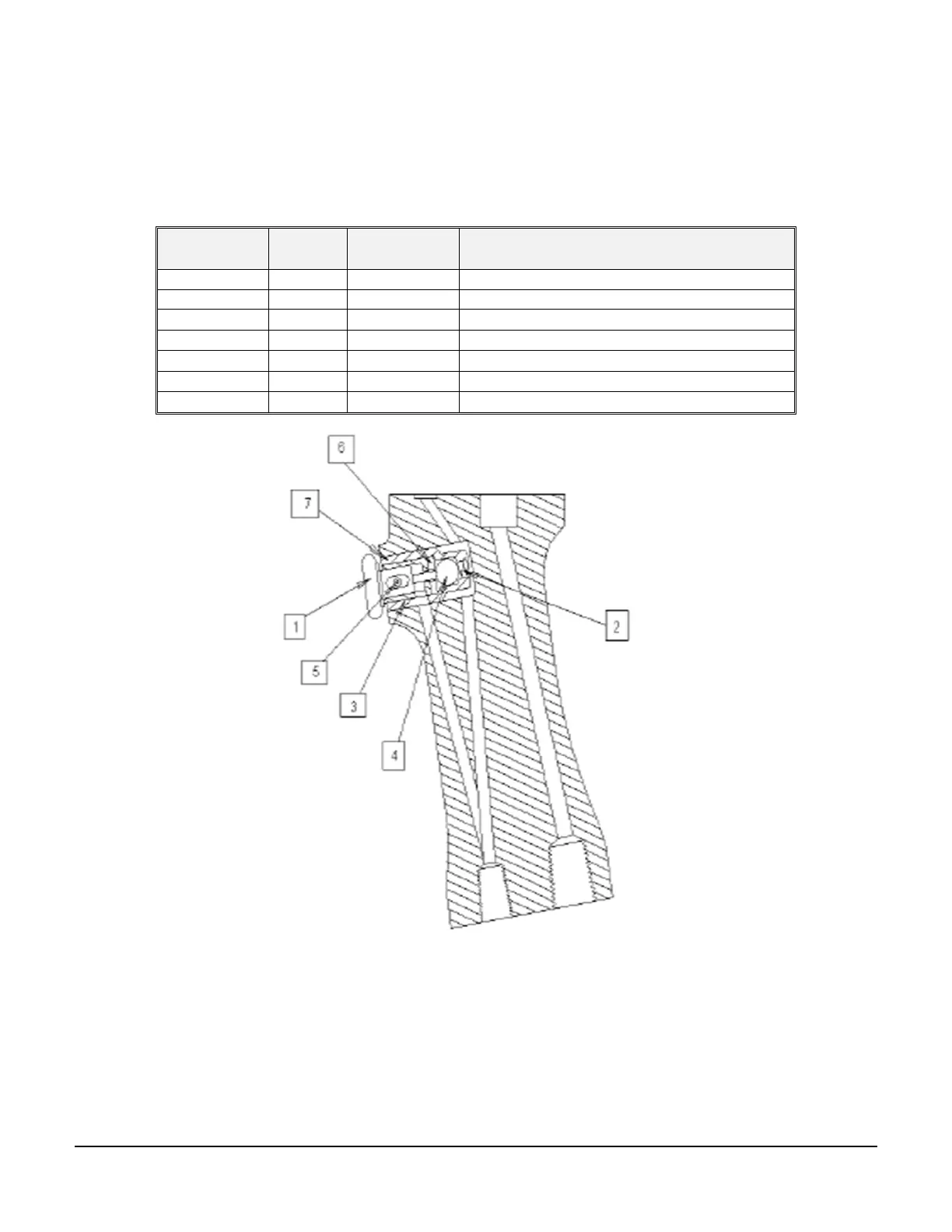

Figure A.2-1

Diagram of Previous Trigger Assembly
