PCC FTI MB-30 - BMB-10 Assembly Diagram; Figure 6.3-1 BMB-10 Assembly Diagram

50 pages

Save Page as PDF

To Next Page

To Previous Page

Fatigue Technology Inc. 401 Andover Park East Seattle, WA • USA 98188-7605 Tel: (206)246-2010 Fax: (206)244-9886

358856-REV K 37

6.3 BMB-10 ASSEMBLY DIAGRAM

Figure 6.3-1

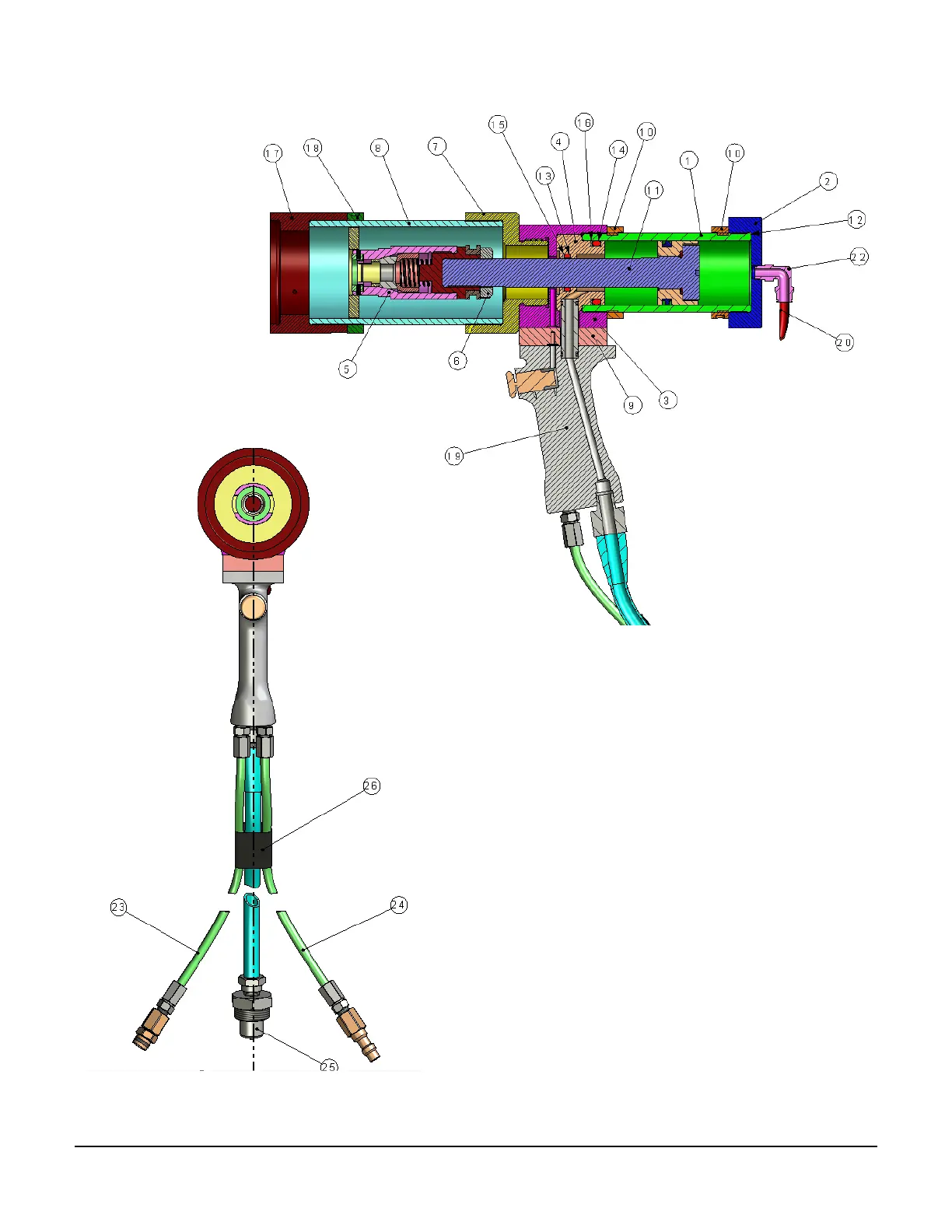

BMB-10 Assembly Diagram
