Fatigue Technology Inc. 401 Andover Park East Seattle, WA • USA 98188-2868 Tel: (206)246-2010 Fax: (206)244-9886

16 358856-REV K

SECTION 6.0: ILLUSTRATED PARTS BREAKDOWN

6.1 MEDIUM BRUTE ASSEMBLY DIAGRAMS

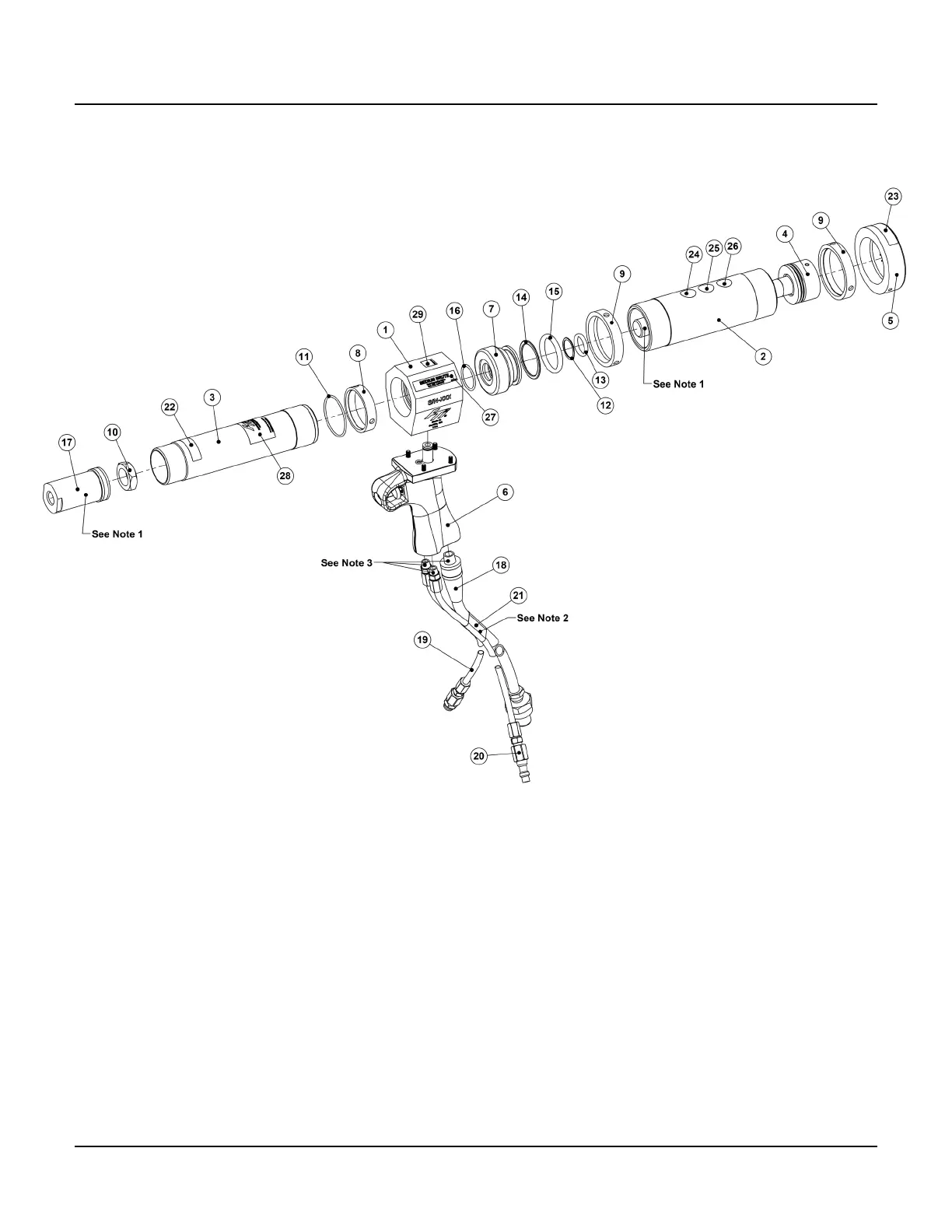

Figure 6.1-1

Medium Brute Exploded View

Notes:

1. Apply teflon tape to threads on piston (item number 4) after installing sleeve (item number 7), and prior to installing

threaded adapter or chuck assembly (item number 17) and adapter locknut (item number 10). While installing sleeve

(item number 7) onto rod of piston, rotate piston until the threads pass the o-ring (item number 13). This will prevent

the o-ring from being damaged by the threads.

2. Hoses are to be fastened together using heat shrink tube, every two feet.

3. Install indicated items using teflon tape on threads.
