PCC FTI MB-30 - Figure A.1-2 Diagram of Cartridge Trigger Assembly; Table A.1-2 FTI-CT-RK Trigger Rework Kit; Table A.1-3 MB-CT-RK Medium Brute Rework Kit

To Next Page

To Previous Page

Fatigue Technology Inc. 401 Andover Park East Seattle, WA • USA 98188-2868 Tel: (206)246-2010 Fax: (206)244-9886

40 358856-REV K

FTI-CT-RK Trigger Rework Kit

Item Number

Quantity

Part Number

Description

1187-622

Cartridge Valve

1187-623

Push Button, Brass

1187-624

Retaining Ring, Internal

3196-001

Sleeve, Puller Handle Trigger

Table A.1-3

MB-CT-RK Medium Brute Rework Kit

Item Number

Quantity

Part Number

Description

Not Pictured

1029-005

Screw, SHG (10-32 UNFX 3/4)

Not Pictured

2039-002

MB-H-D16 Hydraulic Adapter

See Section 4.6

8000-485

Medium Brute Seal Kit (MB-SK)

1187-622

Cartridge Valve

1187-623

Push Button, Brass

1187-624

Retaining Ring, Internal

3196-001

Sleeve, Puller Handle Trigger

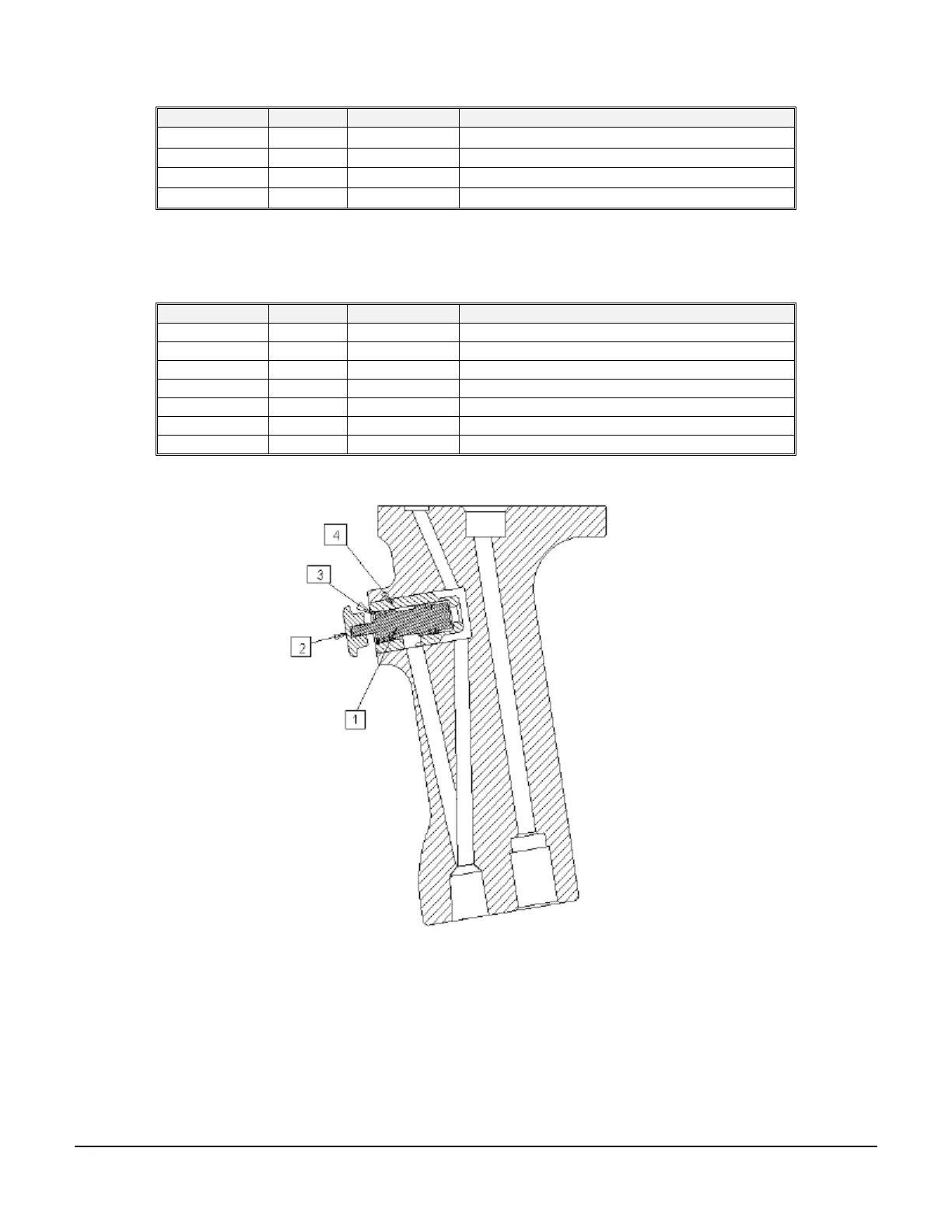

Figure A.1-2

Diagram of Cartridge Trigger Assembly
