PCC FTI MB-30 - General Description; Figure 1.3-1 Medium Brute Puller Unit Parts

Fatigue Technology Inc. 401 Andover Park East Seattle, WA • USA 98188-2868 Tel: (206)246-2010 Fax: (206)244-9886
2 358856-REV K
1.3 GENERAL DESCRIPTION
• Air actuated, hydraulic puller capable of cold expanding up to 15/16-inch (23.8 mm) diameter in aluminum and
mild steel, and up to 3/4-inch (19.1 mm) diameter in titanium and high-strength steel.
• Maximum pull force is 24,000 pounds (1.1 x 10
5
Newtons) at 10,000 psi (389.5 bar) hydraulic pressure.
• Includes a hose assembly, spanner wrench, and nosecap pin wrench. Threaded adapter(s), or chuck(s) are also
included depending on model (see Table 1.3.1). All models come packaged in a tool case with foam, except as
noted.
• Available in various lengths depending on the model, up to 7.0 inches (177.8 mm) material stackup capacity.
• Hydraulic pressure provided by the FT-200D, FTI-200C, or FT-20 PowerPak.

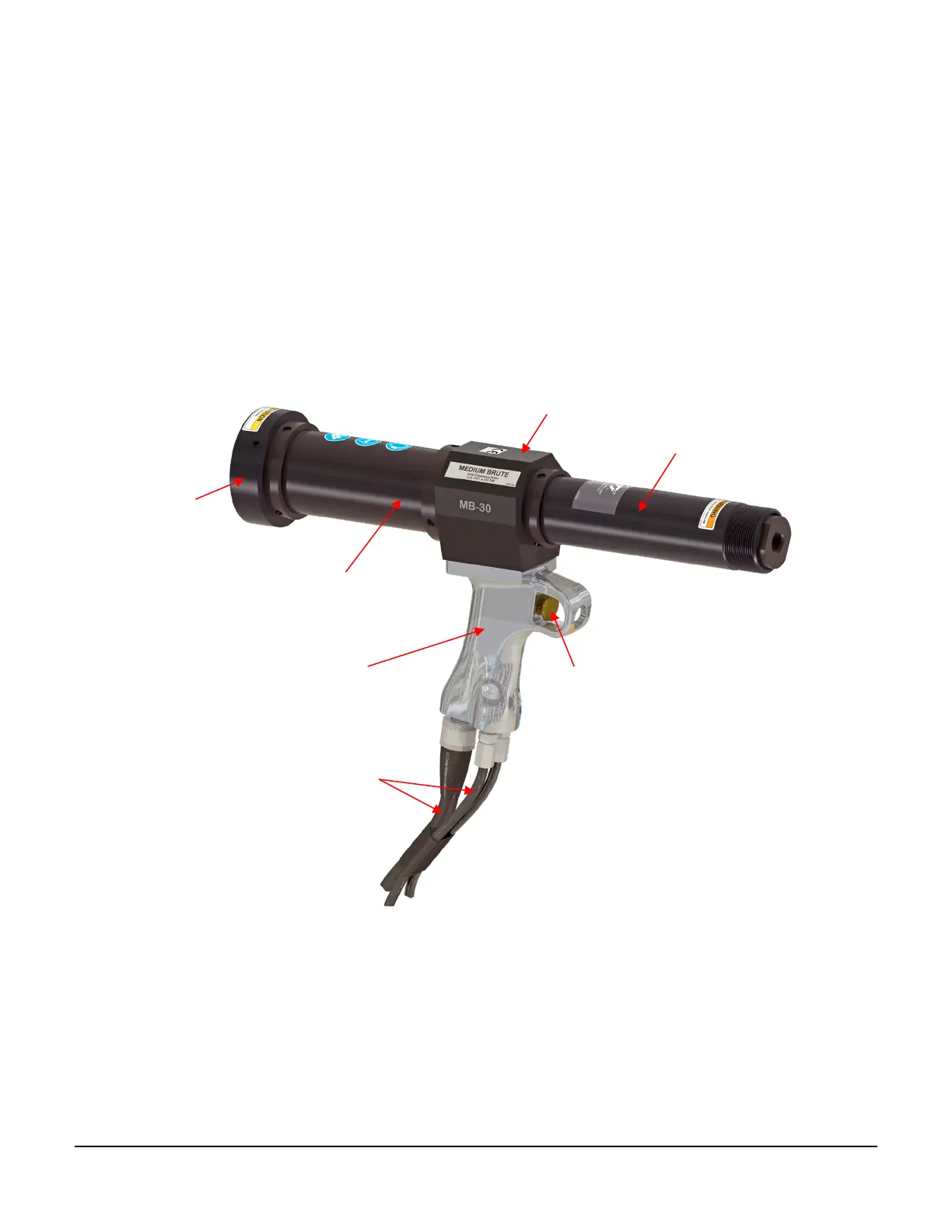

Figure 1.3-1
Medium Brute Puller Unit Parts
Trigger
Cylinder
Housing
Barrel
End Cap
Handle
Hose
Assemblies
