Peak Atlas DCA Pro User Guide June 2019 – Rev 1.7
Page 45

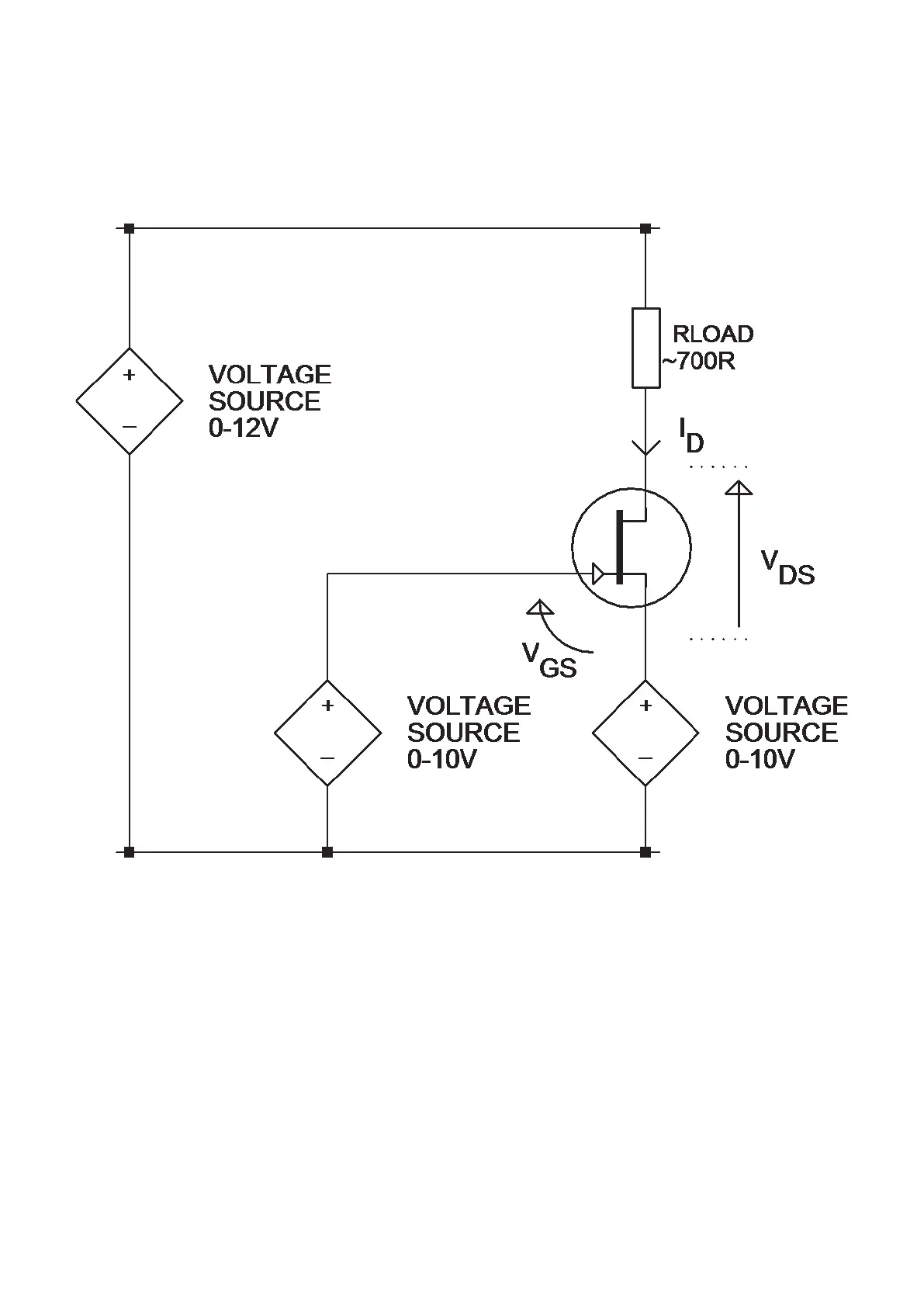

JFET/MOSFET/IGBT Test Circuit
It’s important to note that the gate-source voltage can be driven
negative by making the source voltage drive higher than the gate
voltage drive. When this is done however, there is less voltage
available to be across the drain-source nodes and the load resistor.
Example shown is for an N-Channel JFET. Polarities are reversed for
P-Channel devices.
