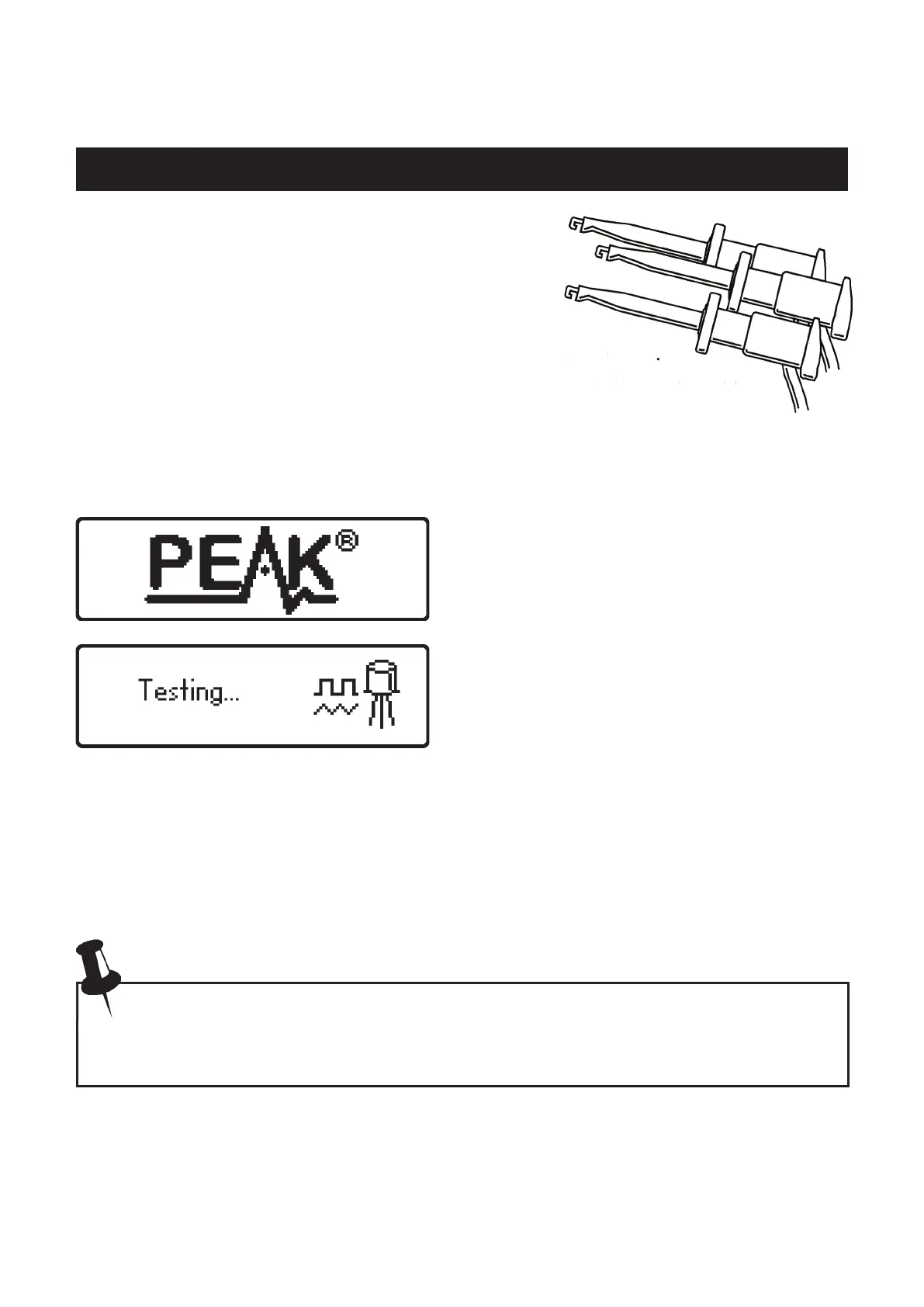

Analysing Semiconductors – Standalone mode
The DCA Pro is designed to analyse discrete,
unconnected, unpowered components.
This ensures that external connections don’t
influence the measured parameters. The three test
probes can be connected to the component any way round.
If the component has only two terminals, then any pair of the three
test probes can be used.
The DCA Pro will start component analysis when the on-test button is
pressed.
For the first analysis, the tests are
performed while displaying the Peak
logo (no time is wasted while
displaying the logo).
For subsequent testing when the unit is
already powered-up, the unit displays
the “Testing…” screen.
Depending on the component type, analysis may take a few seconds to
complete, after which, the results of the analysis are displayed.
Information is displayed a “page” at a time, each page can be smoothly scrolled
by briefly pressing the scroll-off button.
Although the
DCA Pro
will switch itself off if left unattended, you can
manually switch the unit off by holding down the
scroll-off
button for
a couple of seconds.
s
t
w
a
y
r
o
u
n
d
.
n
y
p
a
i
r
o
f
t
h
e
t
h
r
e
e
