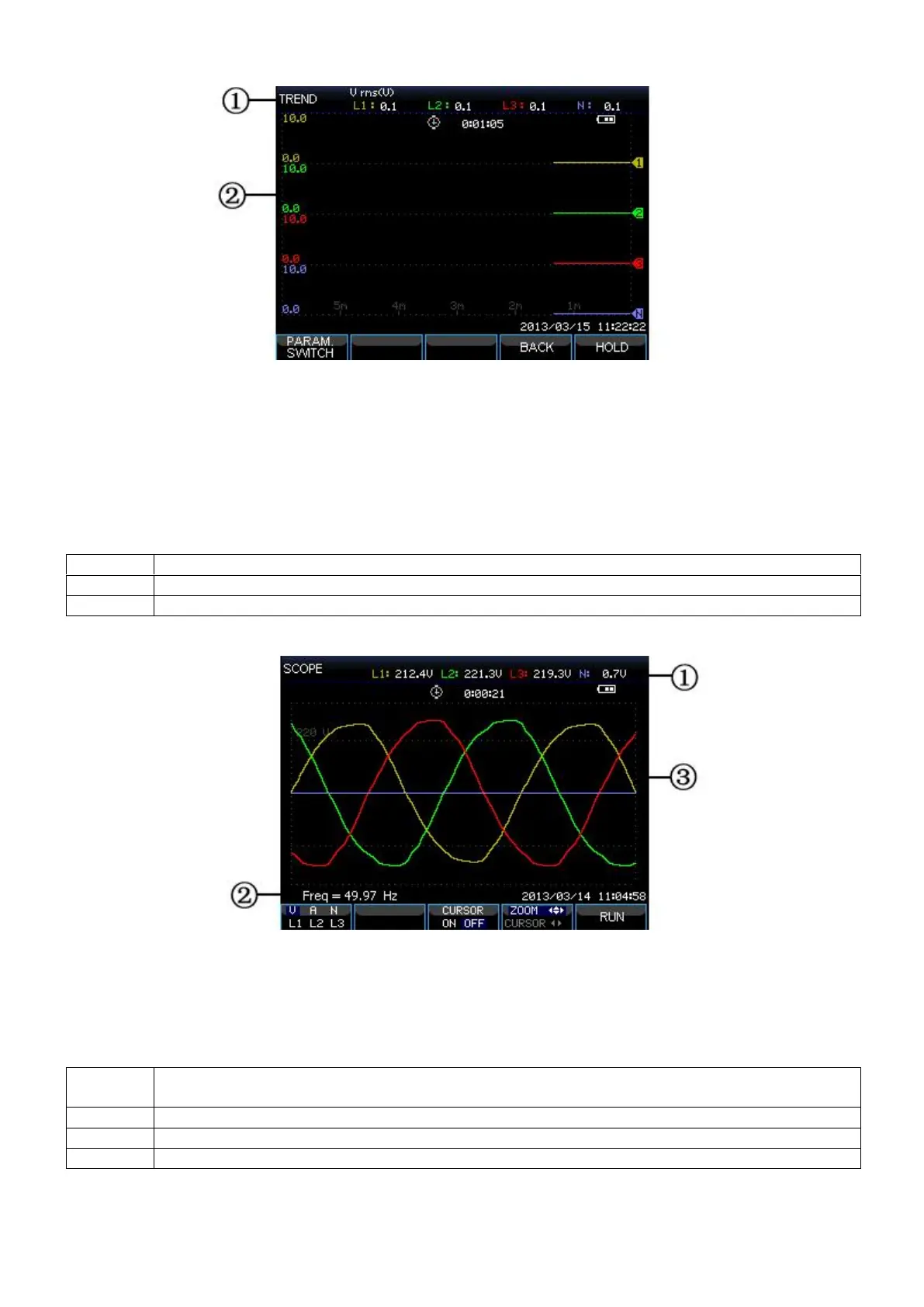

Trend screen
Picture: Trend screen
Trend shows the course over time of measuring values from the table. Such as dips&swells, time is
horizontally displayed, the Trend is built up gradually from the right of the screen.
Screen information:
(1) Shows latest value of the Trend. If the Cursor is on, the Trend value at the cursor is displayed.
(2) Display area of Trend.
Function keys:
Switch parameters to display
Switch between RUN and HOLD
Waveform screen
Picture: Waveform screen
Screen information:
(1) The screen header shows the RMS value of waveforms.
(2) Show measured frequency
(3) Display area of voltage/current waveforms
Function keys:
Select waveform set to display: V displays all voltages; A displays all currents. L1, L2, L3
and N display voltage and current of selected phase synchronously.
Switch between Cursor and Zoom
Switch between RUN and HOLD
-46-
