MONITOR
Below functions are available:
Form of measuring results
Display specifications like voltage, harmonics, flicker,
swells, dips, voltage rapid change, interruption,
unbalance, frequency etc. of power quality parameters
Detailed bar graph of harmonics
Trends of selected data set over time
Record events violate limit
5.5 Screen and Function Keys
The Analyzer uses five different screen types to present measuring results in the most effective way.
Table screen

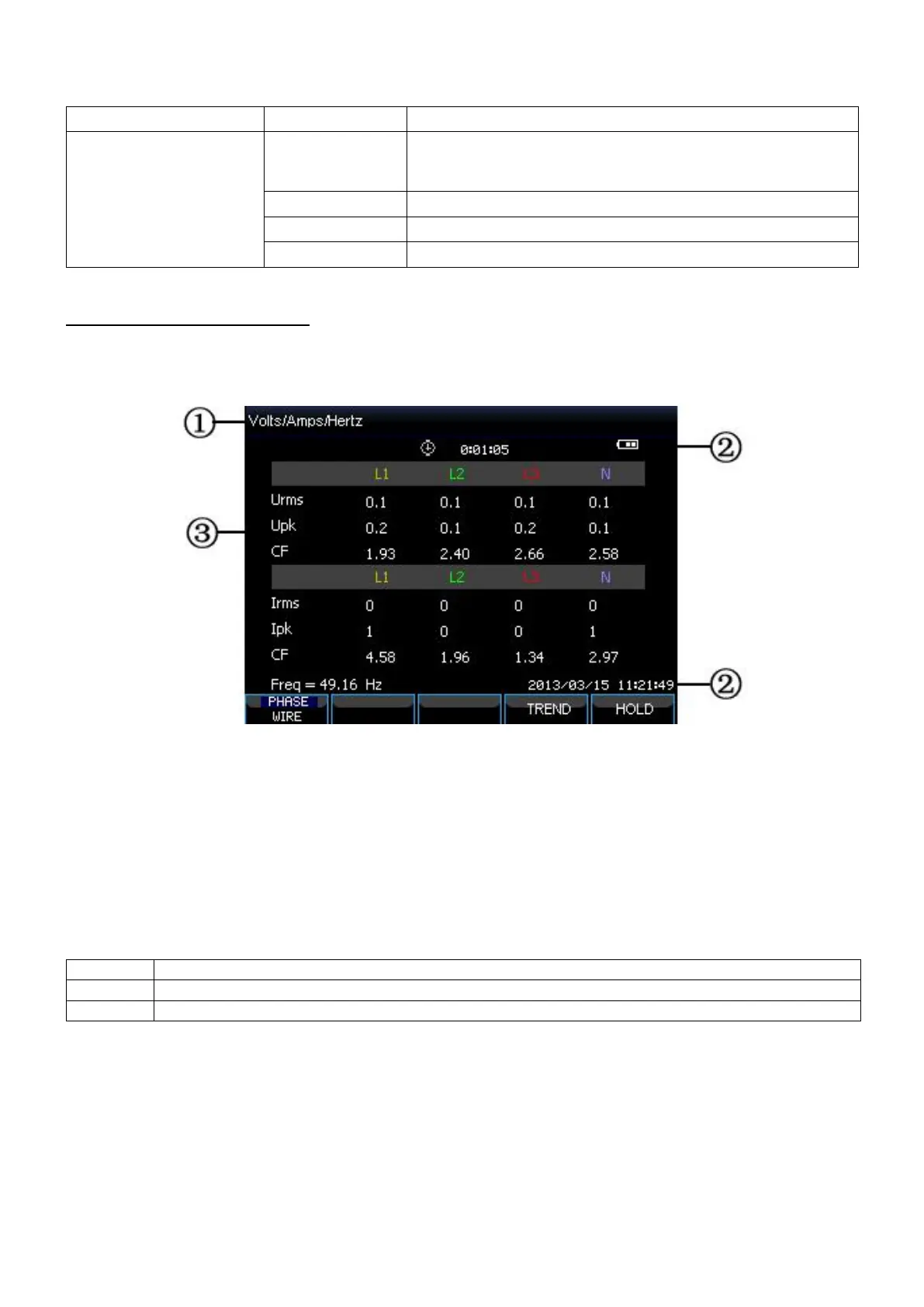

Picture: Table screen
This screen gives an instantaneous overview of important numerical measuring values. Such as Table
screen under VOLTS/AMPS/HERTZ mode.
Screen information:
(1) The screen header shows current measurement mode.
(2) Status indicator and status line.
(3) Measurement parameters and values. The content depends on the measurement mode, phase
number and wiring configuration.
Function keys:
For 3-phase Y type wiring configuration, switch between phase voltage and line voltage.
Access to the Trend screen.
Switch between RUN and HOLD.
-45-
To Next Page
