6.5 Display Information
The Analyzer uses five different screen types to present measuring results in the most effective way.

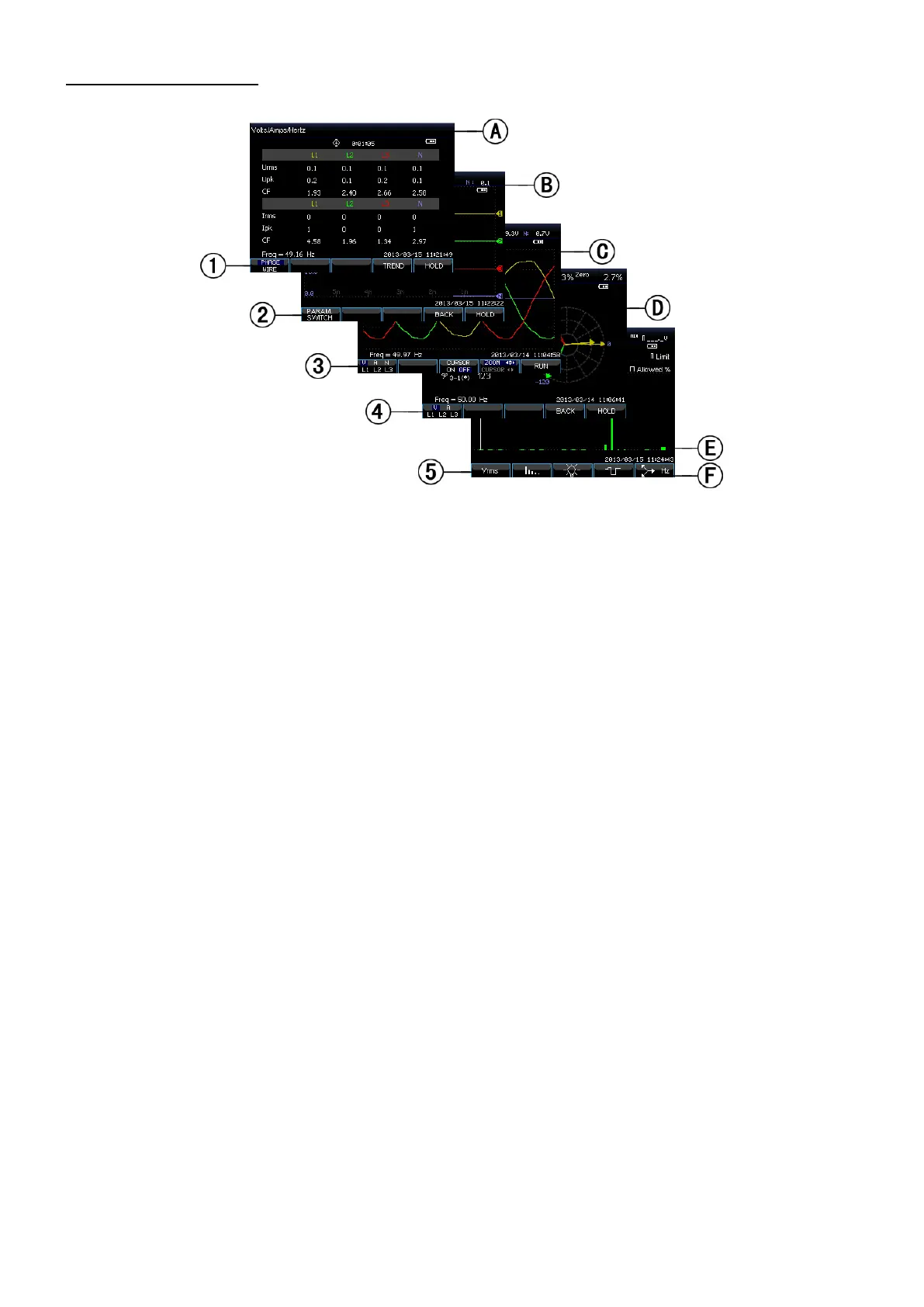

Picture: Survey of Display types
Phase colors
Measuring results belonging to different phases are presented with individual colors. The default colors
are yellow for phase A (L1), green for phase B (L2), red for C (L3), and gray for N (neutral).
Screen types
(1) Table screen: gives an instantaneous overview of important numerical measuring values.
(2) Trend screen: this type of screen is related to a table screen. Trend screen shows the course over
time of measuring values from the table.
(3) Waveform screen: shows voltage and current waveforms as displayed on an oscilloscope. Channel
A (L1) is reference channel.
(4) Phasor screen: shows the phase relation between voltages and currents in a vector diagram. The
vector of reference channel A (L1) points to the positive horizontal direction.
(5) Bar Graph screen: shows the density of each measuring parameters as a percentage by means of a
Bar Graph.
Screen information common for all screen types
a) Measuring mode: the active measuring mode is shown in the screen header.
b) Measuring values: main numerical measuring values. If cursor is off, the newest values are
shown; otherwise, the values at the cursor are shown.
c) Status indicators: Display working states of battery or adapter, and time that a measurement has
been going on.
d) Main area with measuring data.
e) Status line: shows present date and time.
f) Softkey text area: Softkey functions that can be selected with F1 … F5 are indicated in white.
Functions currently not available are indicated in gray. Active function key selections are
highlighted with a blue background.
