PEERLESS PUREFIRE PF-850 - Appendix A. Pixel Display Screen; Stand Alone Pixel Display; Multiple Boiler (Cascade) Pixel Display

86
A. STAND ALONE PIXEL DISPLAY
Figure A.1 below is a map of the boiler pixel display
screen for a multiple boiler. When operating as a “stand-
alone” boiler, the keys on the pixel display are not
active. Section 8 provides information about status
messages for this display.
B. MULTIPLE BOILER (CASCADE) PIXEL
DISPLAY
To operate 2 or more boilers in cascade, the boilers must
be connected by 2-wire link connections as described is
Section 8.
APPENDIX A. PIXEL DISPLAY SCREEN
APPENDIX A. PIXEL DISPLAY SCREEN

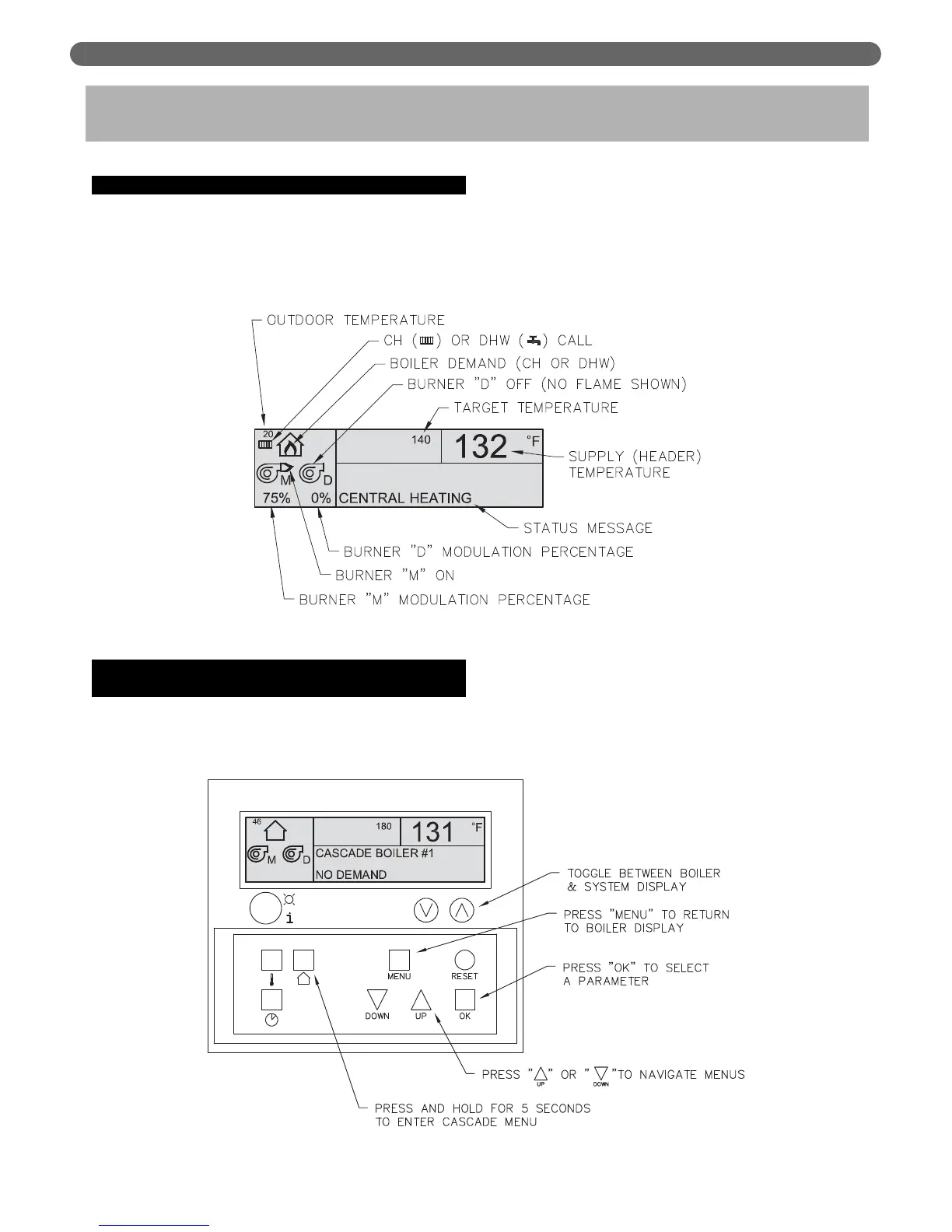

Figure A.1: Pixel Display Screen – Stand Alone Boilers
Figure A.2: Pixel Display Module
