SGM700 Digitizer
Configuration Menu -485-
Options are:

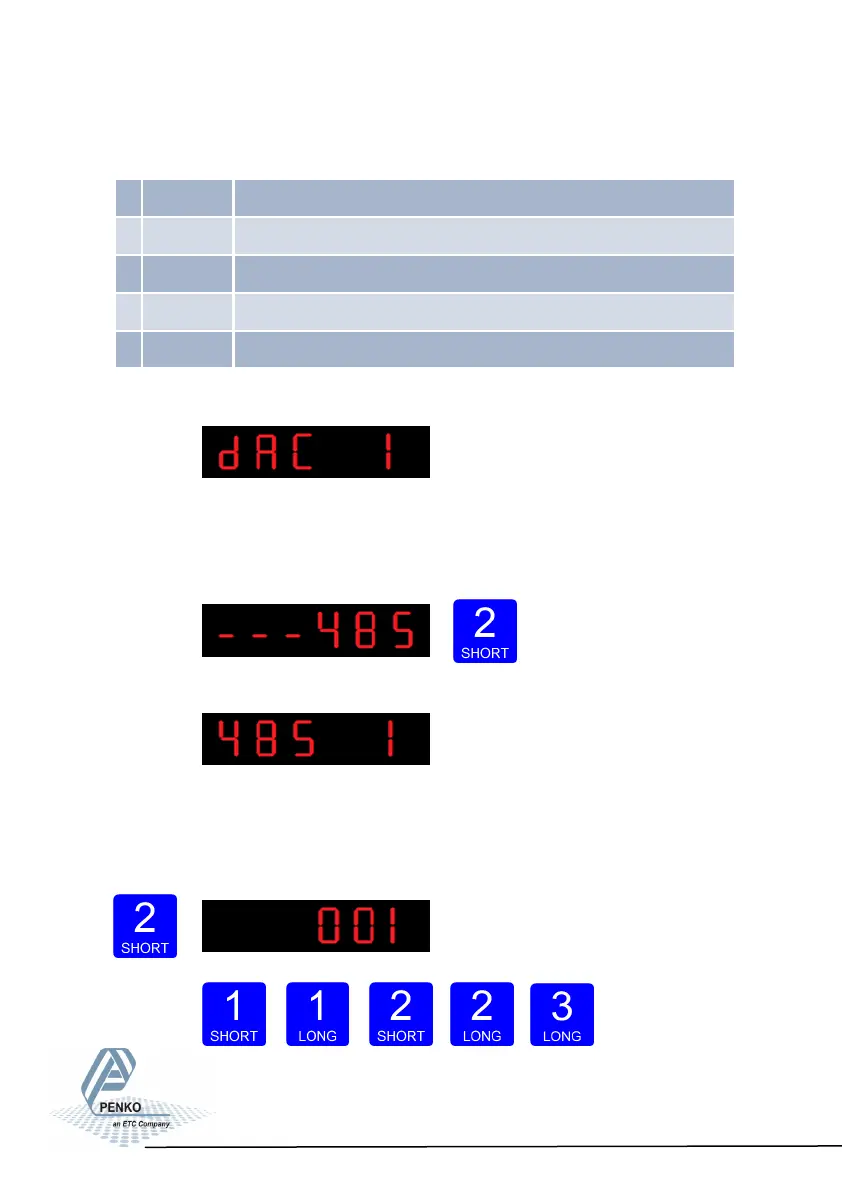

When confirmed the following screen will be vissable:
6.4 - - - 485 Local bus communication settings (RS485)
In this menu, the communication address can be set for communication with
multiple devices. Press key 2 <2 sec to enter the settings.
The following screen will be vissable:
In 485 1 you set the address of the SGM700. Press key 2 < 2sec. to enter 485 1.
Set the address using key 1 and key 2.. Key 1 is for changing the number
(1-9), key 2 is for changing the position of the cursor. Confirm by pressing
key 3 >2sec. (options are: 1-32).
Increase Decrease Left Right Confirm
30
1 RAW Register value 65535 parts
2 0-24mA input value 0 to 24 mA will be calculated from 0 to 100,00%
3 0-20mA input value 0 to 20 mA will be calculated from 0 to 100,00%
4 4-20mA input value 4 to 20 mA will be calculated from 0 to 100,00%
5 4-24mA input value 4 to 24 mA will be calculated from 0 to 100,00%
