Chapter 2 Installing PenMount 6000 Control Boards
2.3.4. Install A PenMount 6500A Control Board
The PenMount 6500A control board is a touchscreen control board that uses
both RS-232 and USB interfaces and supports 4-wire, 5-wire, and 8-wire
touchscreens. The size of the board is 26 x 60 mm and it has two connectors
and four dipswitches on-board. Follow the steps below to install the 6500A
control board.
1. Cut off the power of your computer and display, then open the case of the
display or the system. Find space on your system and attach the control
board to your system with screws. The control board has industry
standard 3φ screw holes.
2. For other installation details, see 2.2.4 on page 8: The connection of
6500A Control Board (for both RS-232 & USB Interfaces).

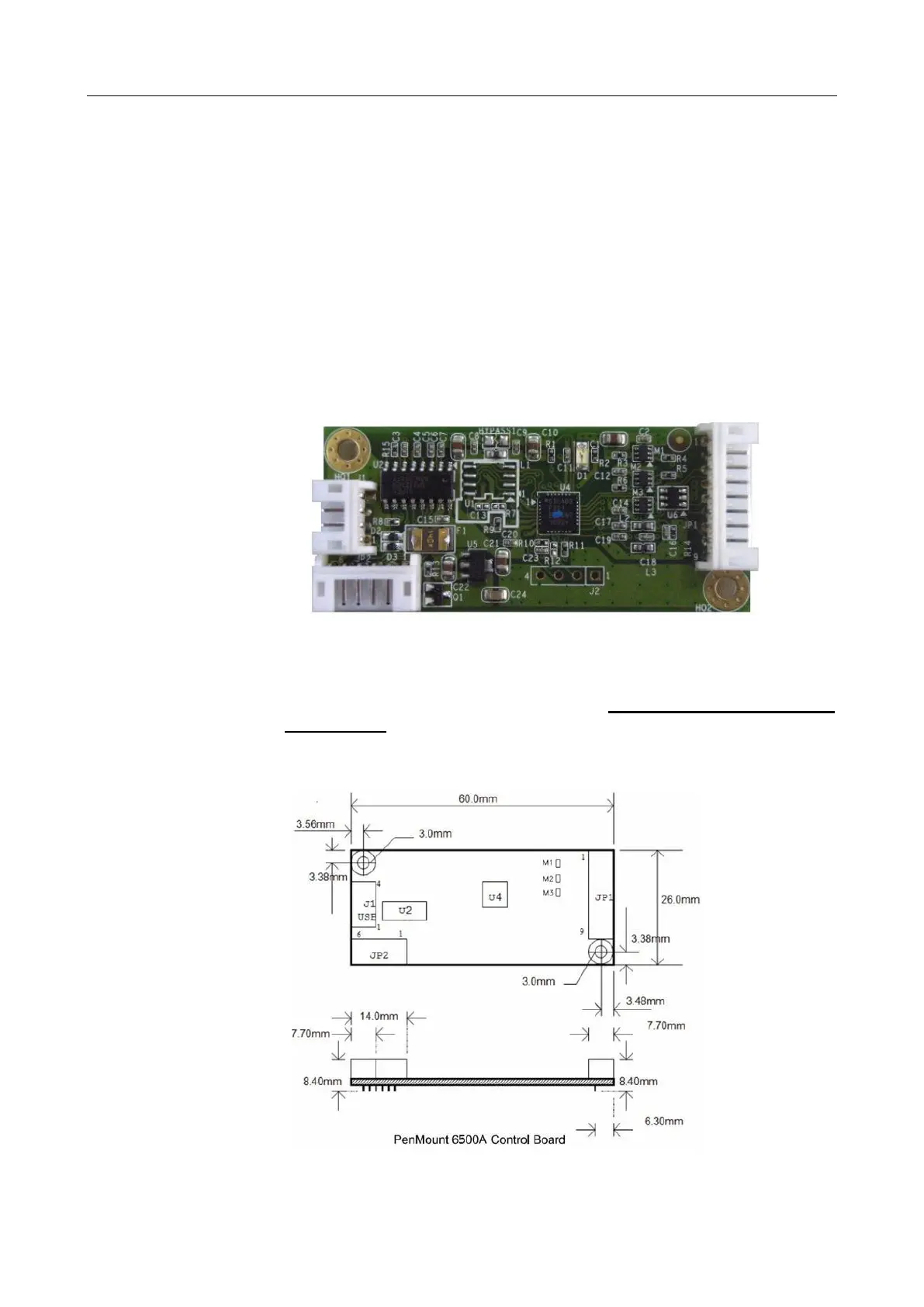

PenMount 6500A Touchscreen Control Board Upside
3. Power on the computer and the display. Install the software drivers and
utilities and calibrate the touchscreen. See Chapter 3. Install Drivers for
6000 Boards for details.
4. The mechanical diagram of PenMount 6500A Control Board:
PenMount 6500A Control Board Mechanical Diagram
