10.1.4.2 Routing under GRE via IP Forwarding

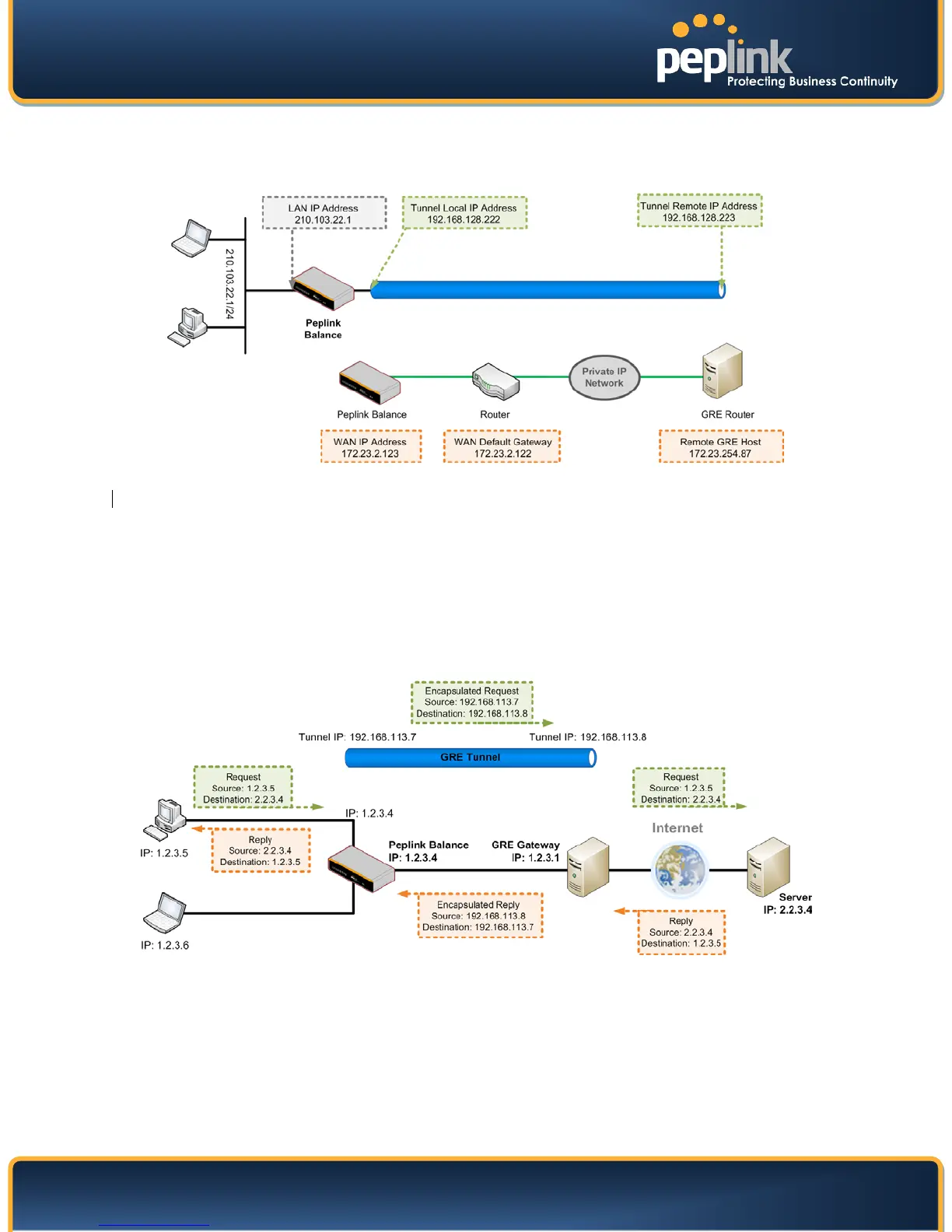

The following figure shows a typical scenario with Peplink Balance under the GRE connection mode and
IP Forwarding routing mode:
In this scenario, the IP address settings are as follows:
 WAN IP Address: 172.23.2.123
 Default Gateway: 172.23.2.122
 Remote GRE IP address: 172.23.254.87 (the GRE router or host’s IP address)
 Tunnel IP remote address: 192.168.128.223 (IP address of remote end of tunnel)
 Tunnel IP local address: 192.168.128.222 (IP address of local end of tunnel)
 LAN IP Address: 210.103.22.1
The following figure shows the packet flow for Peplink Balance under GRE connection mode and IP
Forwarding routing mode:
