K23-SSI/USB/25B-C | ELECTRICAL CONNECTIONS
14
3.4 Absolute Rotary Encoder Input (X2)
The SSI connection is available for managing operation at terminal X2 pins 1, 2,
3, 4.
The SSI connection is available for managed operation at terminal X2 pins 3, 4, 5,
6.

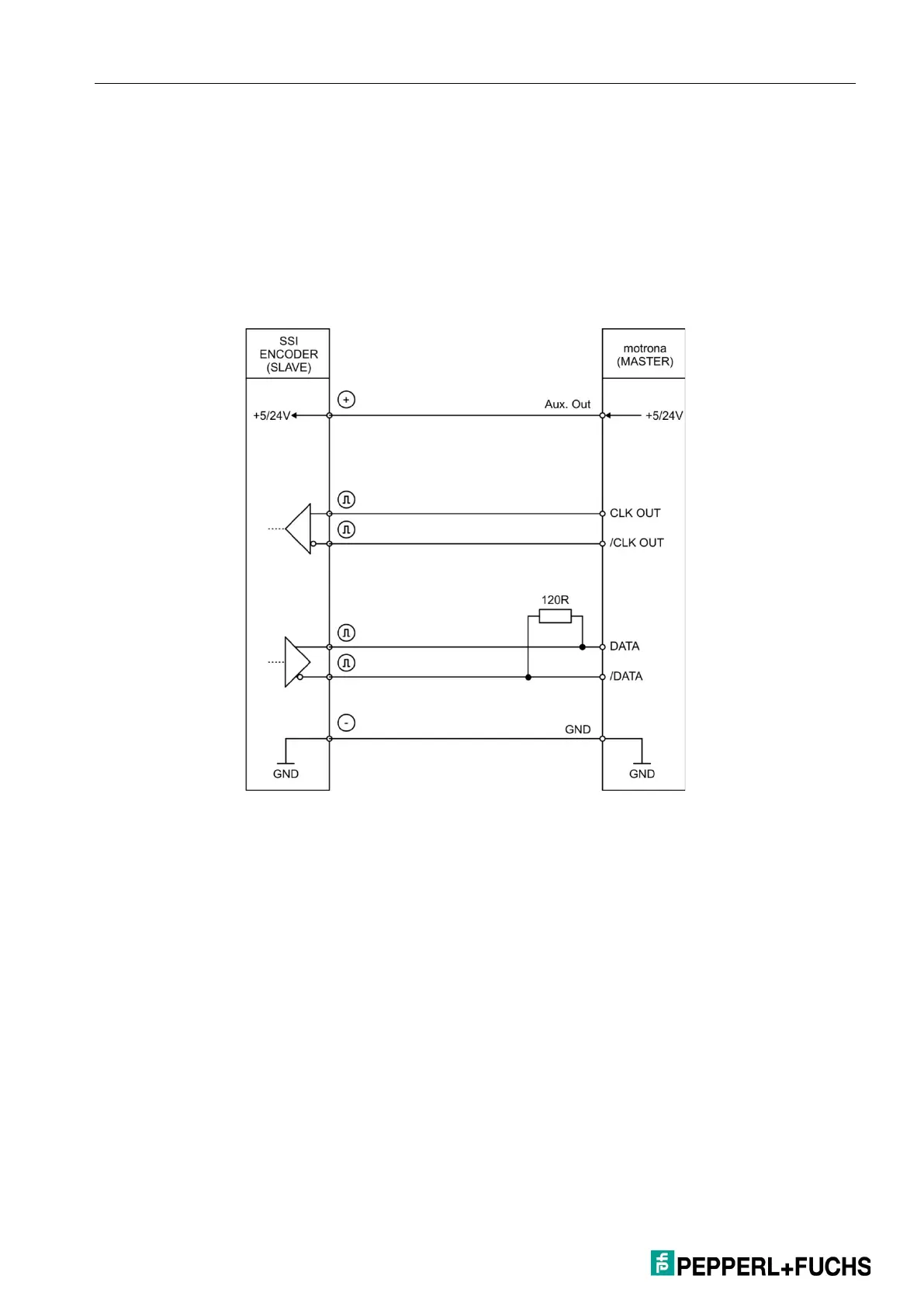

Connection for managing operation:
