K23-SSI/USB/25B-C | ELECTRICAL CONNECTIONS
19
12121

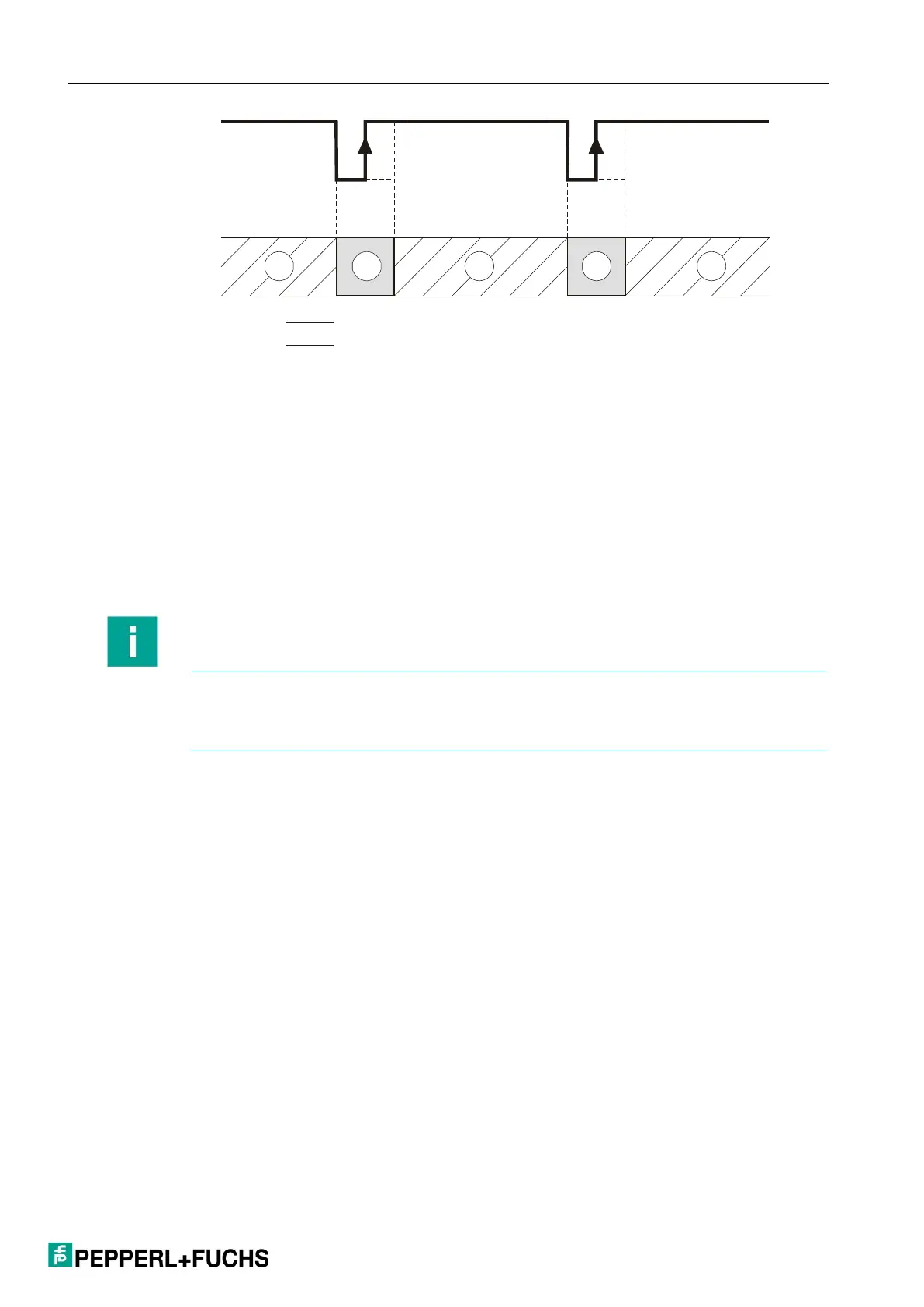

Data stable signal
Zone 1:
Parall el output dat a subject to change
Parall el output dat a are st able
Zone 2:
3.8 Serial Interface (X4)
A serial USB interface (mini USB) is available at terminal X4.
The USB interface can be used as follows:
 For parameterization of the device during commissioning
 For changing parameters during operation
 For reading out actual values via PC
Note
The serial USB communication is carried out at a baud rate of 115200 baud and a
serial data format of
8none1.
These values cannot be changed by the user!
