K23-SSI/USB/25B-C | APPENDIX
55
Parameters P1(Y) to P24(Y) are used to enter the values that the measured value
is to assume instead of the X values.
For example, the value P5(X) is replaced by the value P5(Y).
The X coordinates must be assigned continuously increasing values.
P1(X) is the smallest value and each of the following must be greater. For
measured values greater than the last defined X value, the corresponding Y value
is used constantly.

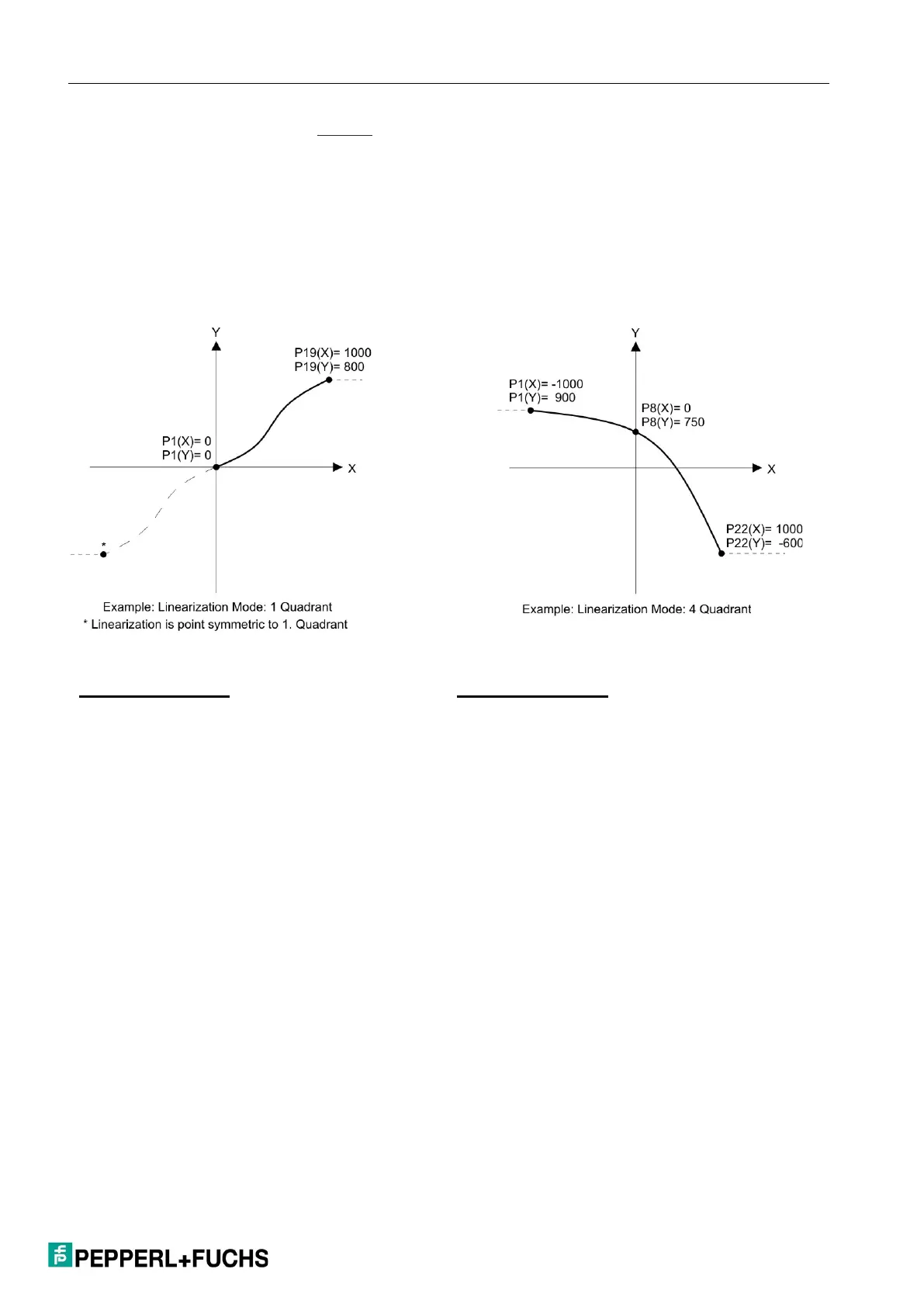

P1(X) must be set to 0. The linearization is
only defined in the positive value range.
In the case of negative measured values, the
curve is mirrored point-symmetrically.
P1(X) can also be set to negative values. For
measured values less than P1(X), the P1(Y)
value is used constantly.
