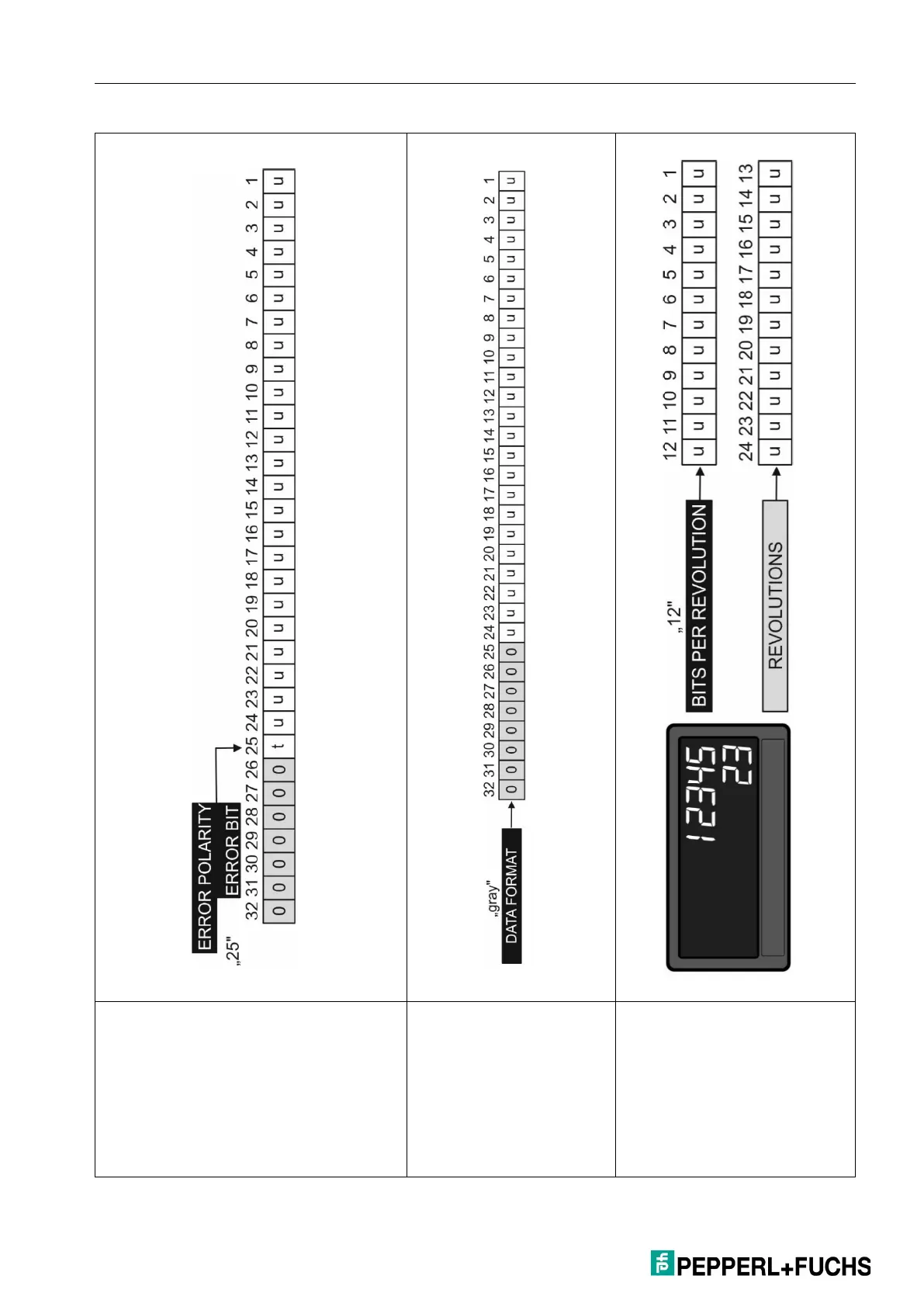

K23-SSI/USB/25B-C | APPENDIX
58
Internal processing and calculation of SSI data
Checking the
error bit:
Data conversion:
Gray code
Binary
Data partitioning:
Bits per revolution
and number of
revolutions
