Pepperl+Fuchs KFD2-HLC-Ex1.D - Model Variants

Date of issue 11/30/07 805639
HART Loop Converter KFD2-HLC-(Ex)1.D(.**)
Overview
4
The HART system allows digital communication with HART field devices via cables for analogue
4 mA ... 20 mA field circuits.
The HART Loop Converter
KFD2-HLC-(Ex)1.D(.**) from the K-System
(HLC) evaluates up to four HART variables
(PV, SV, TV, QV). The information can be
converted to three different 4 mA ... 20-mA
current signals and conveyed to display
devices or analogue inputs on the process
control system/control system, for example.
In addition, two or four configurable trip values
from the HART variables can be monitored via
the relay outputs on the KFD2-HLC-
(Ex)1.D.2W or KFD2-HLC-(Ex)1.D.4S.
More information (for example, certificates and data sheets for the HLC and the operating manual for
the K-System) can be found on our webpage www.pepperl-fuchs.com (enter *HLC* in the product
search).
2.2 Model variants
The following variants of the HART Loop Converter are available:
.2W = with 2 change-over contacts
.4S = with 4 normally open contacts
no identification letters = without relay
Ex = for connection of field devices in areas exposed to danger of
explosion
without identifier letters = for connection of field devices in the
secure area

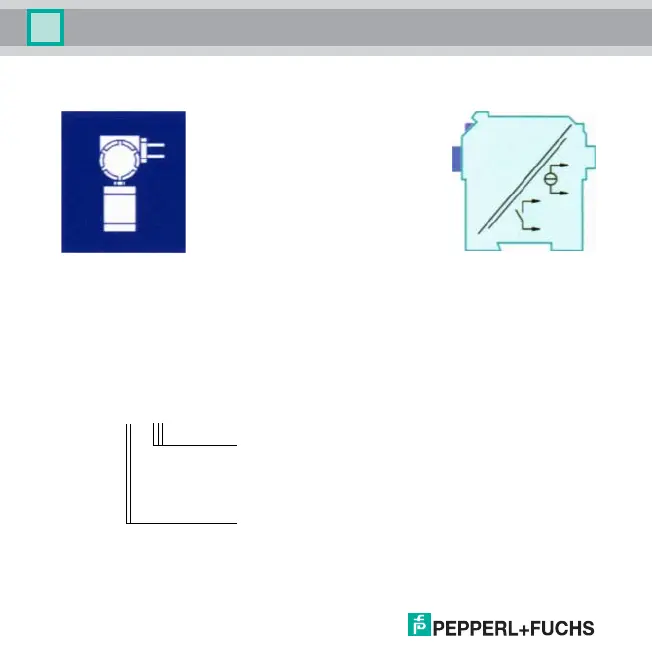

HART
PV, SV,
HART
TV, QV
3x
4x
KFD2-HLC-**1.D.**
