HART Loop Converter KFD2-HLC-(Ex)1.D(.**)
Installation and connection

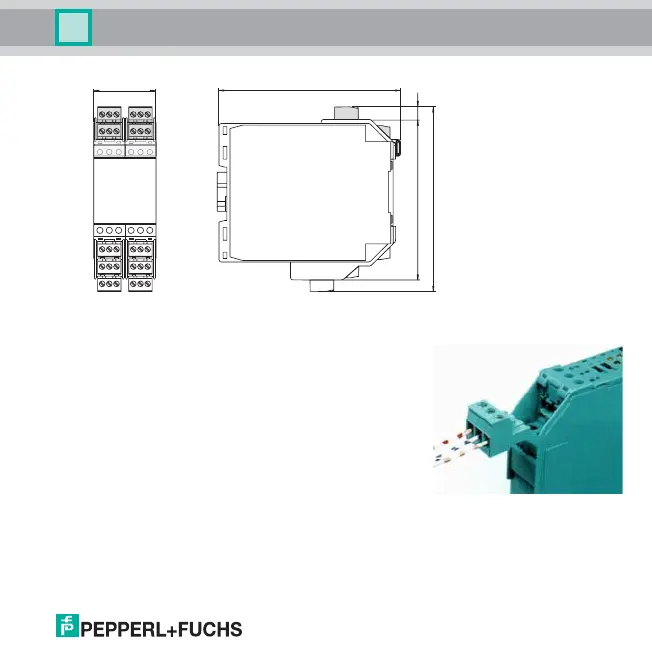

Dimensions of the
KFD2-HLC-(Ex)1.D(.**) in mm
5.2 Connection
The detachable terminals of the KF-series considerably simplify
the connection and the switch cabinet assembly. They make it
possible to replace devices quickly and without error if a
customer service becomes necessary.
Terminals are equipped with screws, are self-opening, have a
large connection area for a wire cross-section up to 2.5 mm²
and coded plugs, making it impossible to mix them up.
115
119
40
105 7
