2023-11
20
VisuNet FLX System
Product Description
3.4 Dimensions and Nameplates
Dimensions

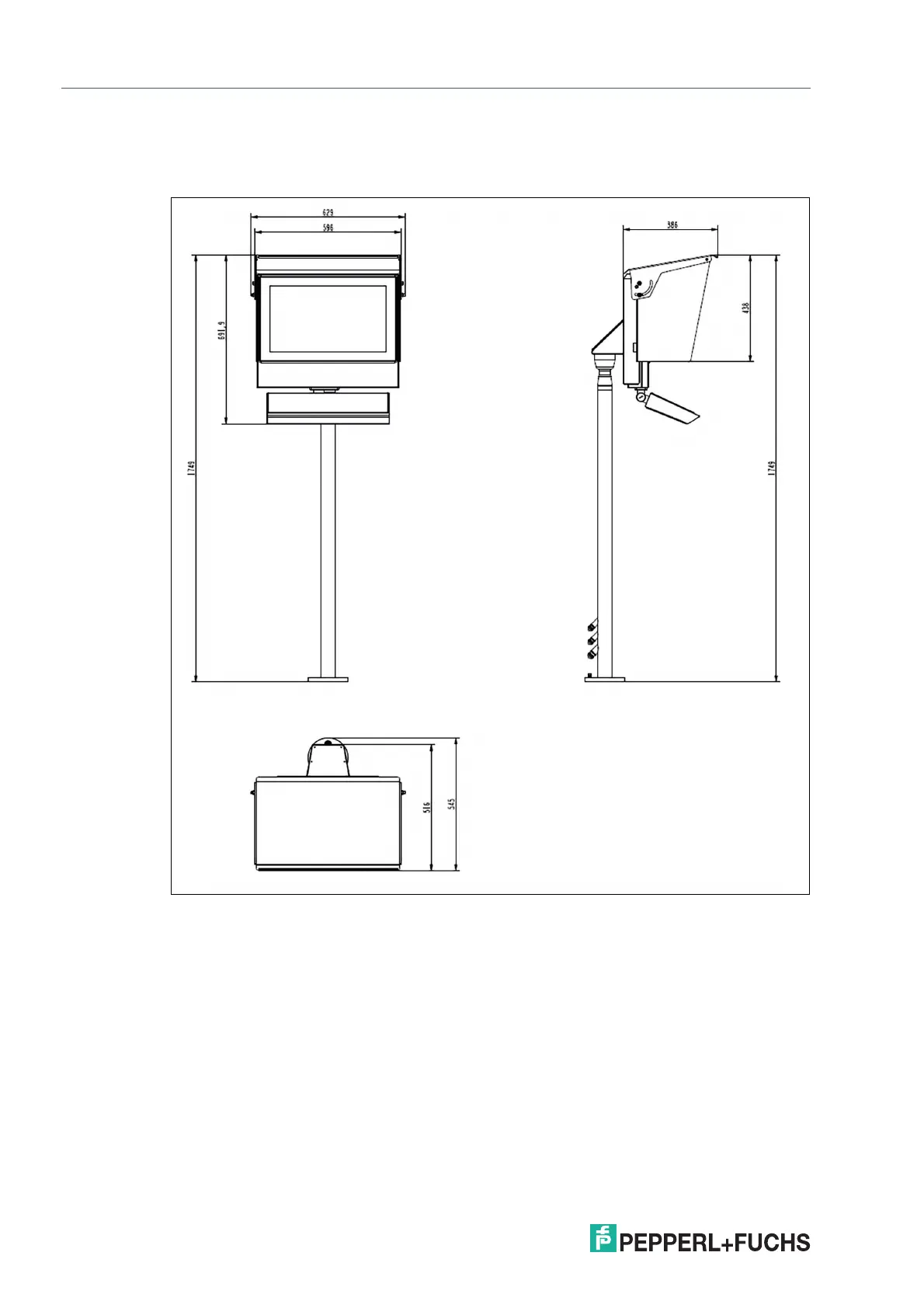

Figure 3.3 0° tilted with pedestal, Dimensions with Top, Sides, Back shields
