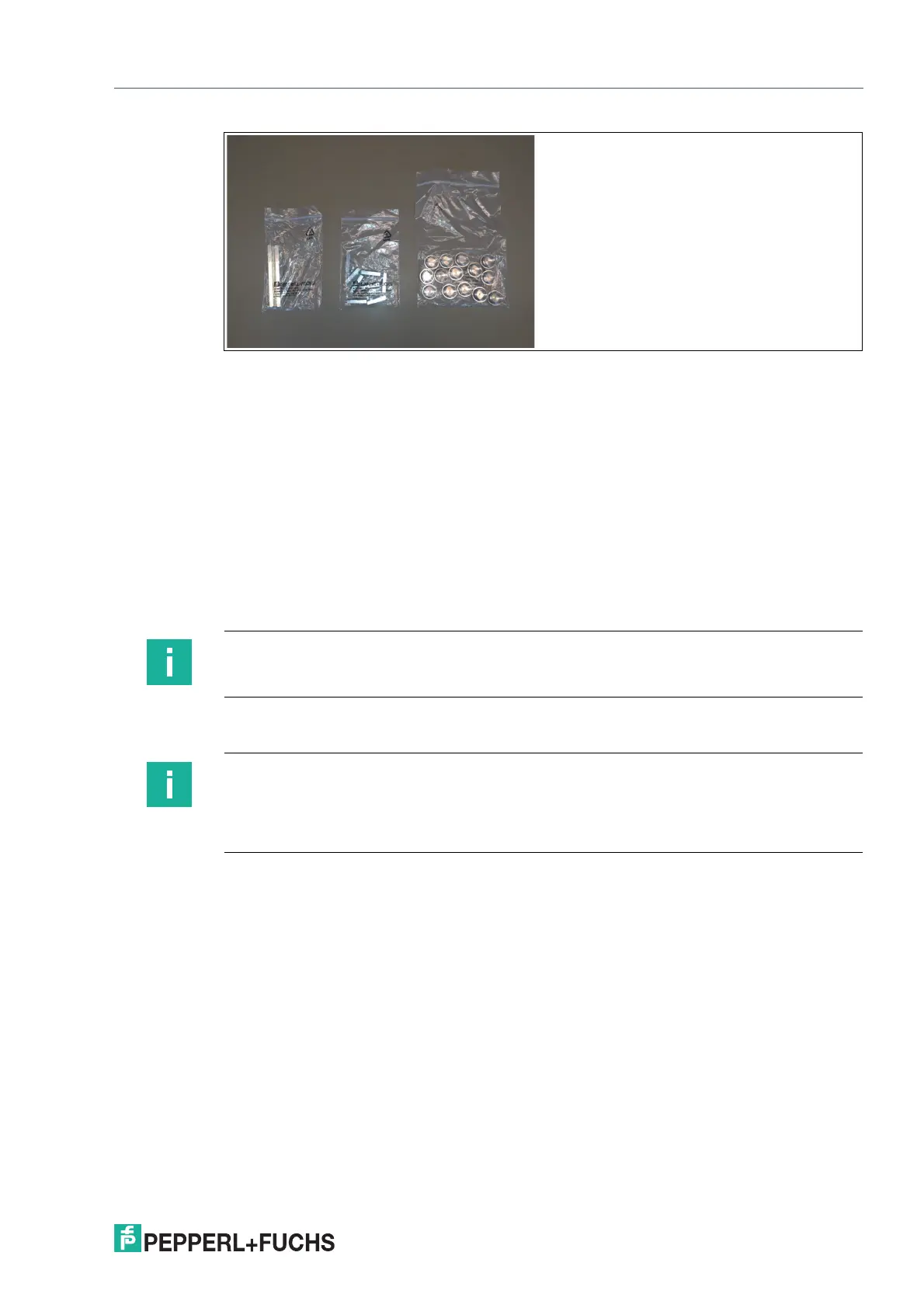

Figure 4.3 Sleeves
• 6x long threaded sleeves (4 are already in use to fix the housing)
• 8x short threaded sleeves
• 14x M16 blind plugs with sealing
• DC terminal block in case of DC configuration
Items Ordered Separately
• Pedestal that is compatible with AG-3200-* housing (PEDESTAL-3200-*)
• Pedestal adapter
• Optional: EXTA4-* keyboard
• Optional: IDM Barcode Reader
• Optional: Spare part housing blind plugs - GMP
4.1.2 Space Requirements
4.2 Unpacking
The VisuNet FLX comes with its core components preassembled. These components consist
of a display unit (DPU), optional power supply unit (PSU), and Thin Client Unit (TCU), PC unit
(PCU) or Direct Monitor Unit (DMU). If the housing option is chosen, the components come
pre-mounted into the housing.
Note
Operating temperature must be considered. Customer must ensure suitable air circulation!
Note
Risk of injury!
Handling the VisuNet FLX components without gloves may cut fingers, hands, or wrists.
Wear always gloves during installation.
