4.13 Back-only sunshield installation instructions
1. Remove the 6 screws and washers from the backside of the housing.

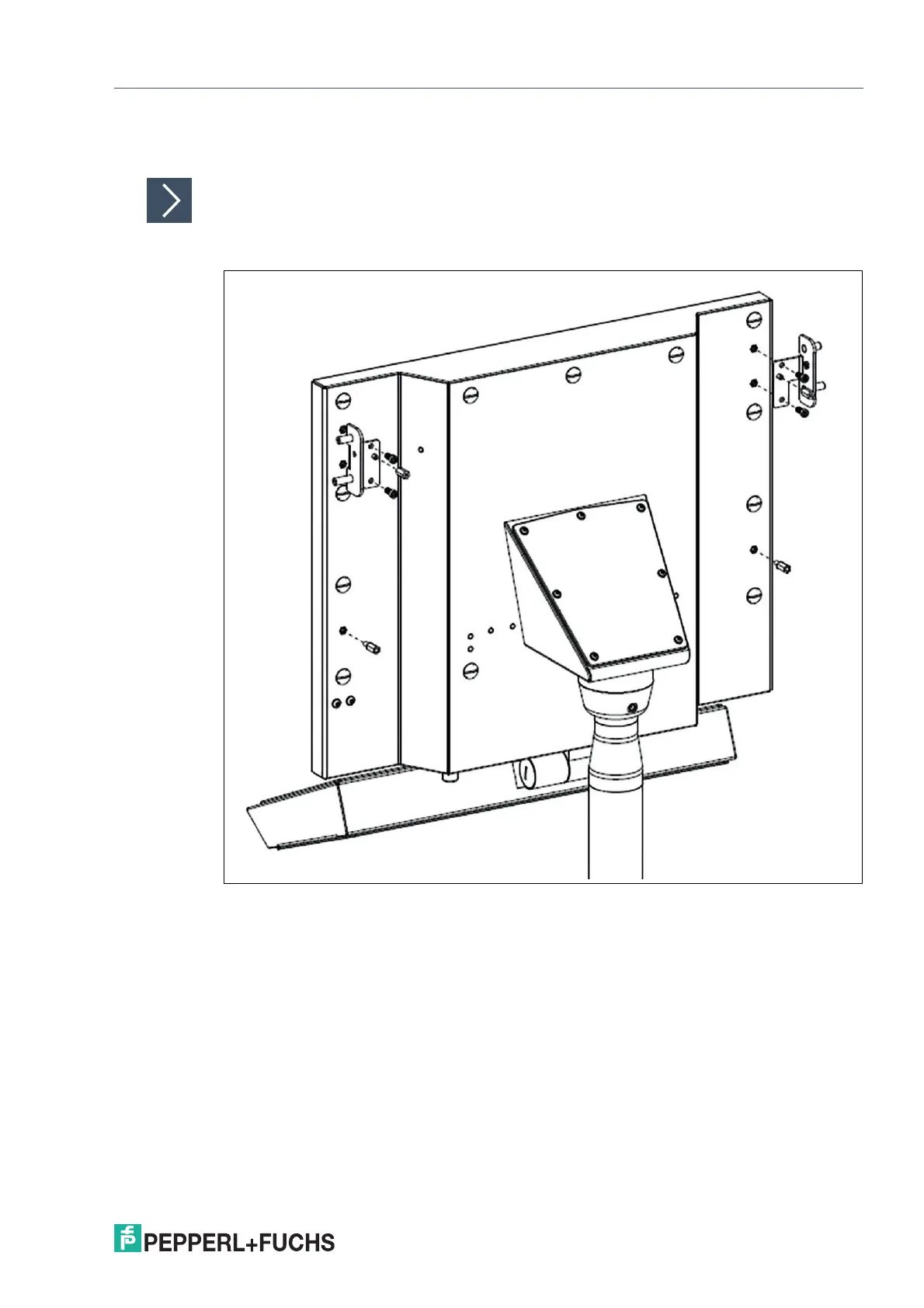

Figure 4.47
2. Install the left and right mounting brackets to the back of the outer housing and install and
tighten the 4 screws to a torque of 4 Nm.
3. Install 2 female-female spacers to mounting brackets and tighten to a torque of 3 Nm.
4. Install 2 female-male spacers to the outer housing and tighten to a torque of 3 Nm.
5. Install 4 screws onto spacers leaving a gap more than the thickness of the back shield.
6. Align 4 screws to a torque of 2.3 Nm.
