4.12 Side, top and back sunshield installation instructions

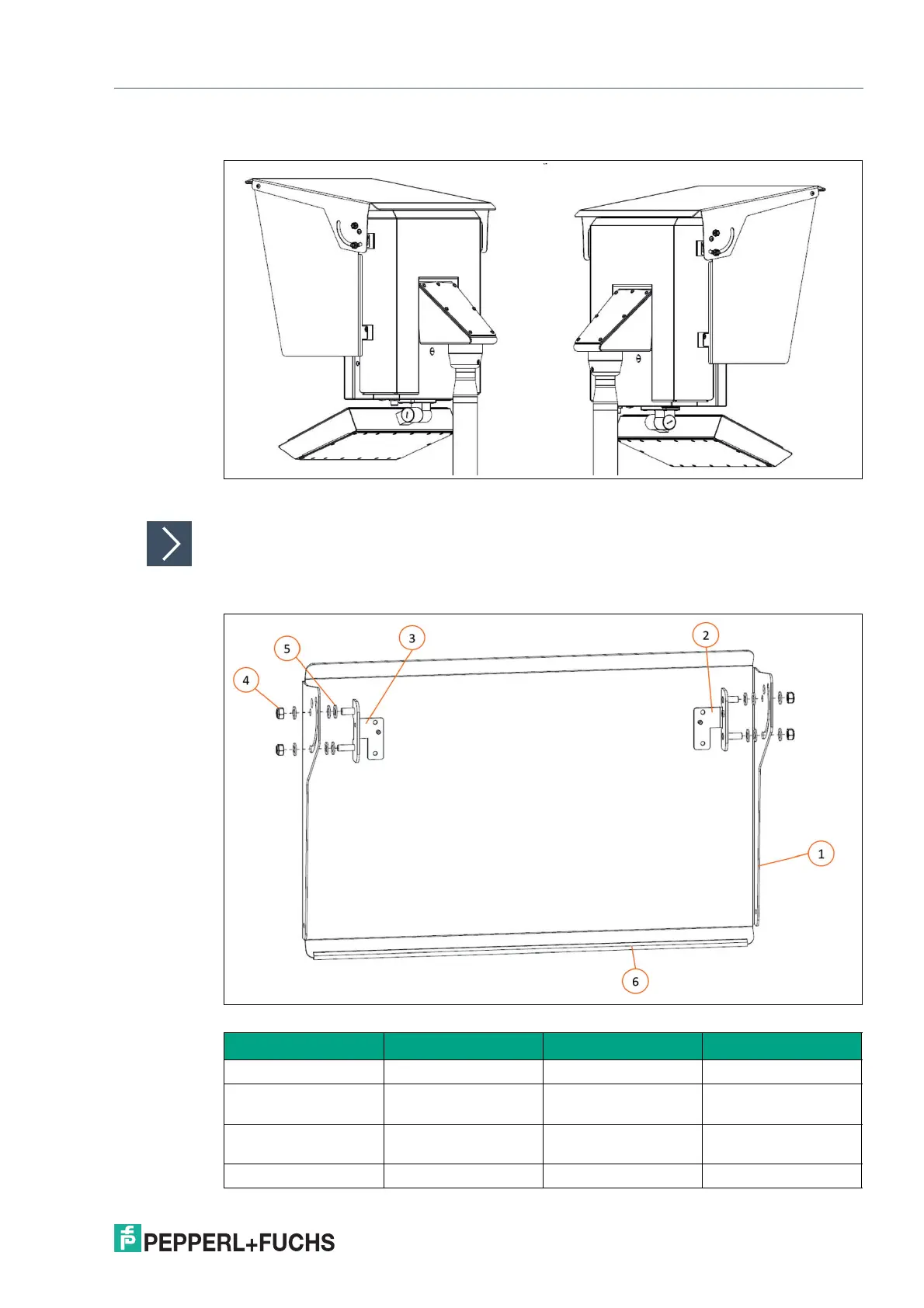

Figure 4.36
1. Pre-assemble the top sunshield as shown in the figure.
Figure 4.37
Item QTY Description Part-No.
1 1 Sunshield top -
2 1 Sunshield Mounting
Bracket, left
-
3 1 Sunshield Mounting
Bracket, right
-
4 4 M8 lock nut 311489
