VisuNet FLX System
Mechanical Installation
4.5 Mounting the Housing with 0° Tilted Mounting Adapter
When using the 0° mounting adapter, a 70 mm bolt is required on the lower position to enable
mounting. Please replace one of the 6 bolts with the shorter bolt as illustrated.

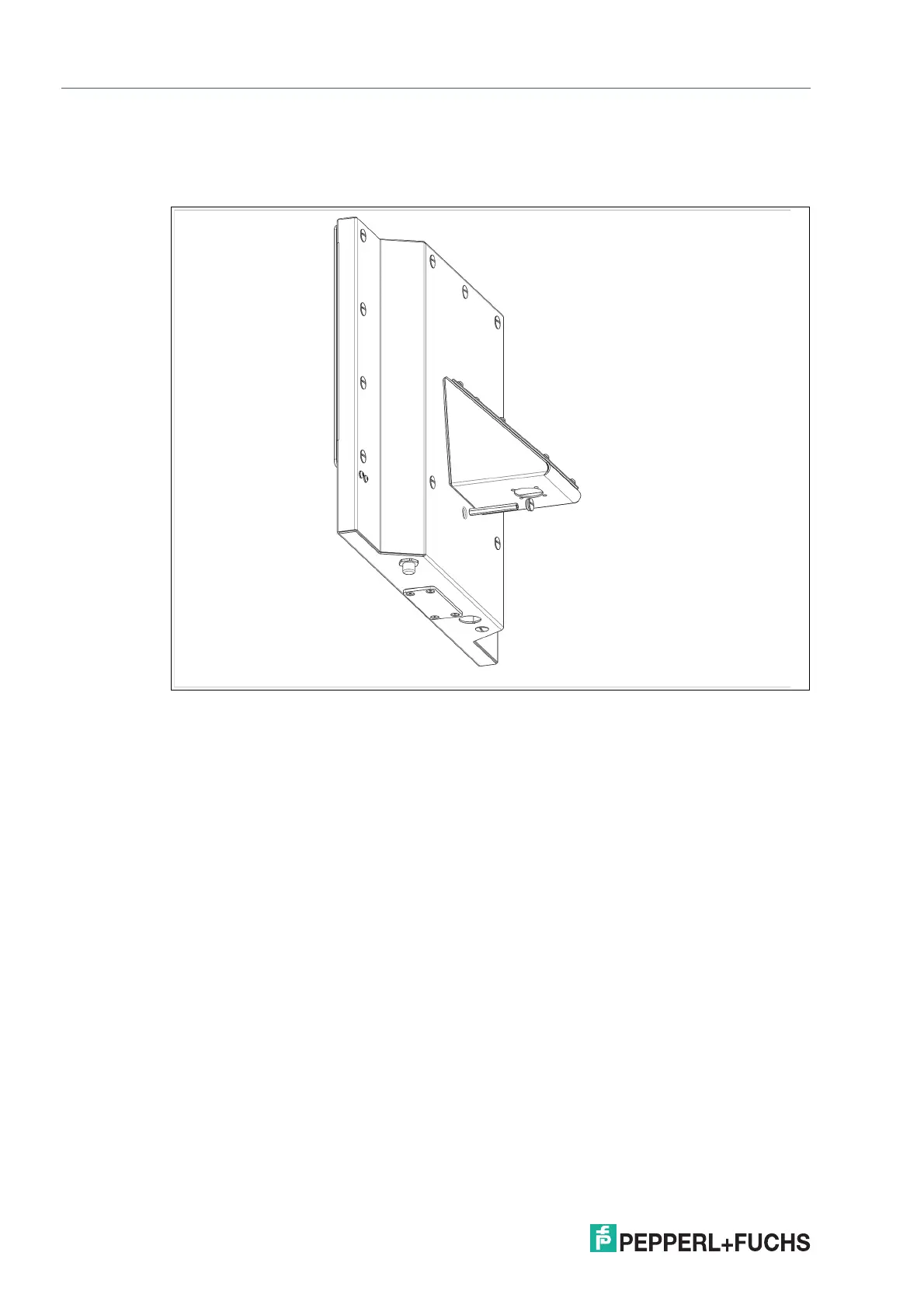

Figure 4.8 Position of the shorter bolt
